Panasonic - AW-RP60
Compact Remote Camera Controller

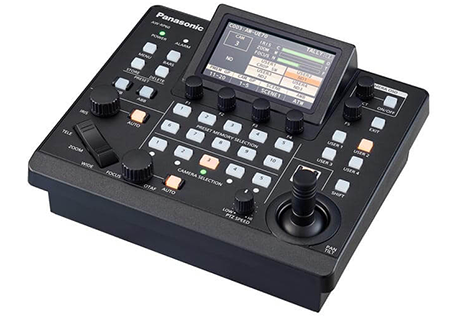

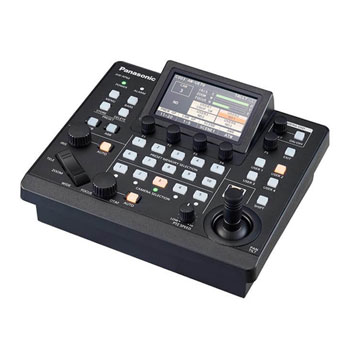

Remote Camera ControllerIntroducing the all-new AW-RP60 Remote Camera Controller. Equipped with a large LCD to display a GUI menu screen with clear visibility and an improved joystick for smoother control, this controller is compatible with all current Panasonic PTZ models.
Thanks to the improved GUI, now all important information about the cameras, such as iris, zoom and focus can be seen at all times directly on the screen.
The AW-RP60 is also capable of supporting up to 200 cameras in 20 groups, manages 100 presets and comes with PoE support allowing for an easy integration.

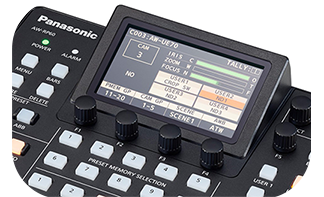

Equipped with a 3.5-type LCD screen
Information as and when you need it The AW-RP60GJ is equipped with a 3.5-type LCD screen to deliver a GUI menu where the information you need is provided at a glance for intuitive and quick camera control.

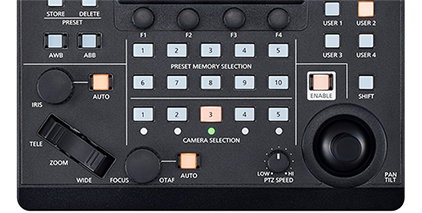

New Joystick with Enhanced Operability
Maximum Control The AW-RP60GJ is equipped with a 3.5-type LCD screen to deliver a GUI menu where the information you need is provided at a glance for intuitive and quick camera control.
Flexible Customisation Features
Adaptable to any requirements The controller is equipped with four user assignable buttons, to which up to eight functions of your choice can be assigned. Each preset name can also be customised with a PC tool. These flexible features of the controller make it perfect for use in a wide range of environments, from lectures and corporate seminars to live streaming and broadcasting at amusement facilities.

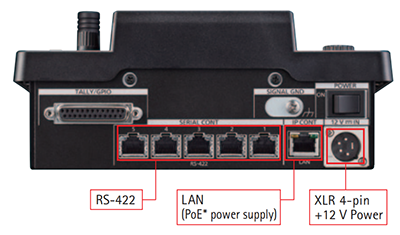

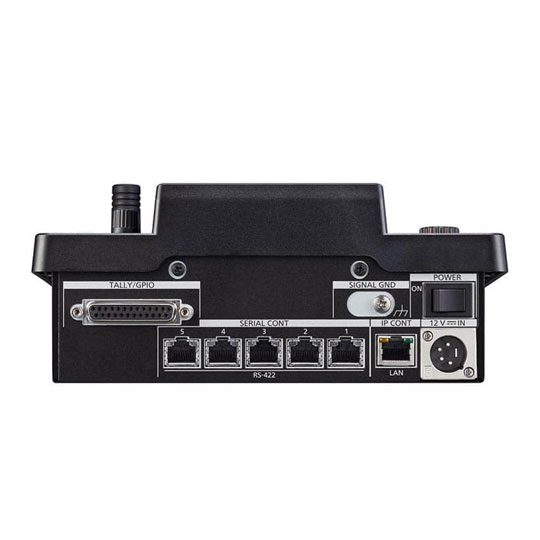

PoE2 support/Advanced camera adjustment PoE2 support enables power supply and camera control to be delivered via a single ethernet cable. In addition to camera control operation, gamma, white balance and other color adjustment functions can be performed, making advanced camera adjustments possible.
The Tech Spec
Features | Specification | Power requirements | 12 V DC (10.8 V to 13.2 V) |
---|---|
PoE2 | IEEE802.3af standard: 42 V to 57 V DC (Camera Input) |
Current Consumption | 0.9 A (XLR connector input), 0.3 A (PoE power supply) |
Mass | 1.5 kg (3.31 lbs) |
Dimensions | W 210 mm x H 92 mm x D 177 mm (8-9/32 inches x 3-5/8 inches x 6-31/32 inches) (excluding protrusions) |
Display | 3.5-type liquid crystal (QHD 960 x 540) |
