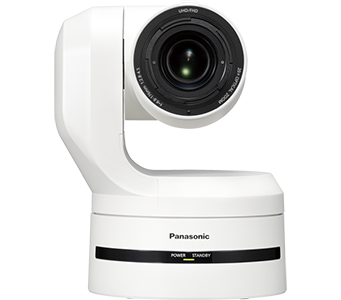

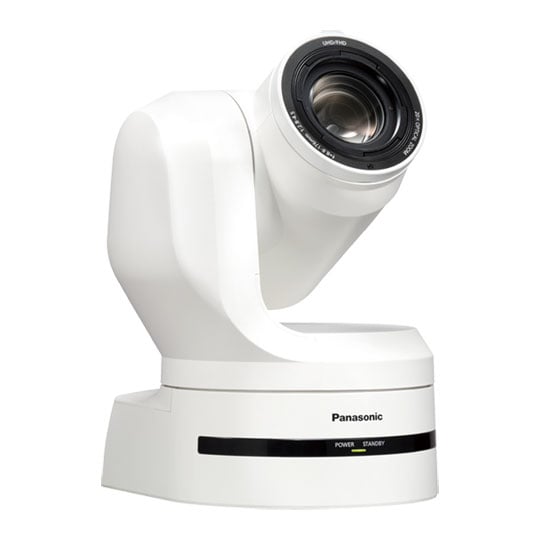

Panasonic - 'AW-HE145 Full-HD Professional PTZ Camera'
(White)
Full HD professional PTZ CameraThe HD integrated camera AW-HE145 realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.
1080p60 Video
High-quality full-hd 60p ShootingFull-HD output and 59.94p shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.
Built-in 20x Optical Zoom
Optical 20x Zoom & 75.1° Horizontal Wide Angle LensAdding "iZoom" to the optical 20x zoom, maintains high resolution while enabling ultra-high resolution 32x zoom in HD mode. This enables distant subjects to be captured clearly. Furthermore, 75.1° horizontal wide-angle shooting allows you to capture the entire area with one camera, even when installation space is limited.
SRT Protocol
SRT support for stable video
transmission over public linesSRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
RTMP/RTMPS Support
Direct Broadcast via RTMP / RTMPSRTMP / RTMPS (Real-Time Messaging Protocol) is supported by the AW-HE145 to enable direct upload of video to live-streaming services such as YouTube and Facebook Live. This means a live stream can be broadcast directly from the camera.
NDI|HX Compatible
Integrates into NDI EcosystemThe AW-HE145W/K can be upgraded to an NDI|HX compatible model if purchasing a license. Highly efficient NDI|HX compatibility enables high-quality video to be encoded and transmitted in real-time and input signals to be directly sent to a switcher (such as the AV-HLC100 Stream Studio) without the need for an IP decoder.
HDMI 2.0 & 3G-SDI
Multiple Interfaces SupportedA wide range of outputs are supported: 3G-SDI, HDMI and IP.
Compatible with IP Control Solutions
AW-RP150 Connection for Large-Scale Production SystemsIP connection from the Remote Camera Controller AW-RP150 through a HUB (switching hub) enables control of up to 200 x AW-HE145 units. Furthermore, a single AW-HE145 camera can be controlled from up to 5 x AW-RP150 units.
Flexible Mounting & Installation Solutions
Flexible Installation & MountingThe AW-HE145 robotic camera is lightweight and compact enough for easy permanent or portable installs. It’s equipped with a turn lock mechanism for easy installation and comes standard with a safety cable for extra security and peace of mind.

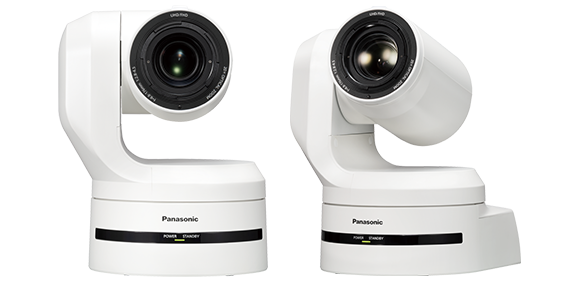

Blend-inThe camera is exceptionally easy to integrate and is available in two colors (AW-HE145W: pearl white / AW-HE145K: matte black) to suit a wide range of applications.
Ceiling MountA twist-lock ceiling mount is included as a standard accessory.
Tripod Mount for Mobile ProductionThe HE145 is also equipped with a 1/4-20 tripod mounting screw receptacle and a safety lanyard for use with many mounting and grip systems.
Wall Mount or Pole MountAn optional heavy-duty wall mount is available in either black (FEC-150WMK) or white (FEC-150WMW), which can also be utilized with the FEC-PA1 pole adapter
OutdoorsProtective heated / cooled outdoor housings are available. Designed for direct compatibility with the HE145, the enclosures are made from impact-resistant polycarbonate thermal plastic and are designed to protect the camera from water, dust and other challenging conditions.
Free PTZ Control Software
Useful Software for Simplified WorkflowCompatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software. This software will simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management.
