Active / Passive Studio Monitor Controller

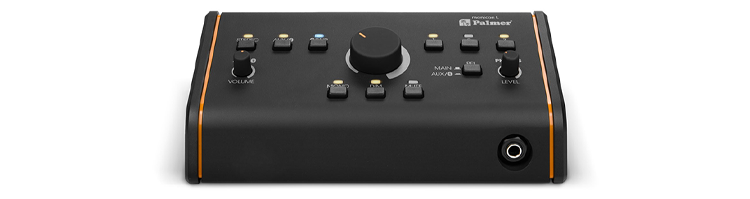

Palmer - Monicon L G2
pure sound. pure control.The MONICON L is a versatile, compact studio monitor controller for professional project studios and ambitious home set-ups. It features three inputs for different signal sources: balanced via XLR/TRS combo sockets as well as AUX and Bluetooth for mobile or digital devices. The inputs and outputs can be switched on/off via dedicated buttons with LED status display. Two stereo outputs and an additional mono output allow flexible control of the speakers, for example, for main monitors, nearfield systems, or subwoofers. The large analogue volume control allows precise control of the output level. Functions such as “Mono,” “Dim,” and “Mute” support practical monitoring conditions and facilitate quick adjustments in everyday studio life.
With its own volume control and PFL function, a separate headphone output allows isolated pre-listening to input signals without affecting the main mix.
The integrated power supply provides power to the Bluetooth, the headphone amplifier, and output three. The signal path itself stays entirely analogue, which makes latency-free and pristine audio playback possible. MONICON L stands for reliable signal management, transparent sound control, and intuitive operation.
PassiveType
20 - 20,000 HzFrequency response
Bluetooth® 5.3Bluetooth
at a glance
• Inputs: 3× Stereo (balanced XLR/TRS Combo, AUX and Bluetooth)
• Outputs: 2× Stereo, 1× Mono outputs (balanced XLR)
• Large precision volume control
• Stereo Phones output with independent volume control
• Dedicated switches for MONO, DIM, MUTE and PFL source
• Supports both passive and active operation
• AUX/Bluetooth input with dedicated volume control
• Input and output source selectors with Status LEDs
Palmer MONICON Series | Pure Sound Perfect Control
The Tech Spec
| Features | Specification | General | Type - Passive Material - Aluminium, Steel sheet Frequency response (±0.2 dB, rel. Avg) - 20 - 20,000 Hz Colour - Black |
|---|---|
| Bluetooth® | Bluetooth® version - Bluetooth® 5.3 Features - Audio Streaming (A2DP) Supported audio codecs - SBC |
| Inputs | Input signal type - Balanced & Unbalanced (parallel) Number of balanced line inputs - 2 Balanced Line-In connector type - XLR combo socket Number of unbalanced line inputs - 2 Unbalanced Line-In connector type - 2 x RCA female (Stereo) |
| Line input performance | Nom. input clipping, unbalanced (< 1% THD, 1 kHz, unity) - 15 dBu Nom. input clipping, balanced (< 1% THD, 1 kHz, unity) - 20 dBu Input impedance (balanced) - 20 kΩ Input impedance (unbalanced) - 10 kΩ THD+N - ≤ 0.001 % (+4 dBu) Min. CMRR (0 dB below clip, 1 kHz, unity) - 55 dB Min. SNR (< 1% THD, 1 kHz, unity, A-weighted) - 112 dB |
| Outputs | Output signal type - Headphone, Balanced Number of balanced line outputs - 5 Balanced line outputs connector type - XLR 3-pole male Number of Headphone outs - 1 Headphone out connector type - 6.3 mm Jack TRS female Min. headphone impedance - 10 Ω Max. headphone out power - 100 mW |
| Line output performance | Max. output level (<1 % THD, 20 Hz - 20 kHz) - 20 dBu Balanced output impedance (1 kHz) - 600 Ω Dynamic range (AES17) - > 115 dB |
| Dimensions & weight | Width - 218 mm Height - 76 mm Depth - 124 mm Weight - 910 g Crosstalk - -79 dB |
