Audio Over Cat Loom from etherCON to 4 x XLR Female
Palmer - AoC Loom XLRf

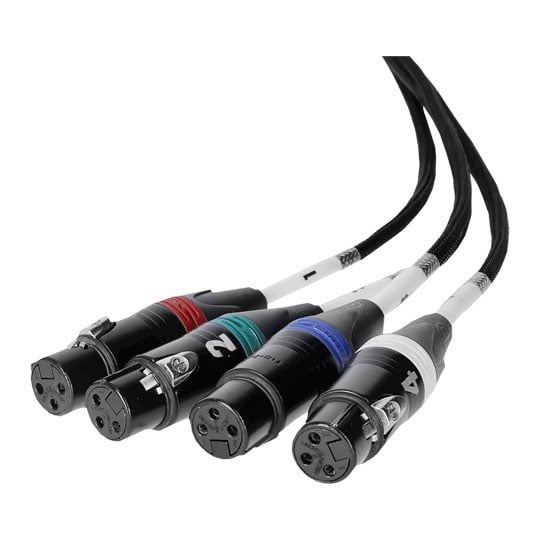

AoC Loom XLR FemaleThe P AOC L XLR F is a multicore adapter cable that transmits 4 separate analogue and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The female XLR plugs are numbered and colour-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.
Along with audio signals, the P AOC L XLR F enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.
Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.
All these factors make the P AOC L XLR F a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you can always expect from Palmer.
At a glance
• 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)
• etherCON to 4 x XLR female
• AES72 Type 5E
• Compatible with 48-volt phantom power
• Premium Neutrik components
• Robust mesh cable, 0.5 m
• Solid casing made of aluminium and steel
• Engineered in Germany
The Tech Spec
| Features | Specification | Product type | Audio over Cat adapter |
|---|---|
| Number of inputs | 4 |
| Input type | Balanced |
| Input connector | RJ45 |
| Number of outputs | 4 |
| Output type | Balanced |
| Output connector | XLR female |
| Material | Aluminium, Steel |
| Cable Length | 0.5m |
| Dimensions | Width: 128mm Height: 50mm Depth: 140mm |
| Operating Temperature | - 20 - 70 °C |
| Air humidity | > 80 % (non-condensing) |
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu dBu |
| Frequency range | 0 Hz - 20 kHz |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,0005 % |
