OptiTrack - 'SlimX 13'

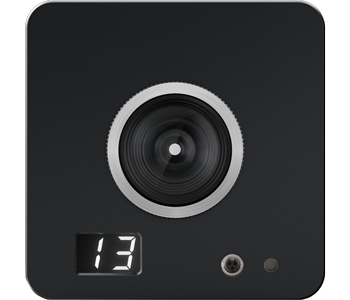

Active Tracking PerfectedThe OptiTrack SlimX 13 ultra-compact motion capture camera excels in VR, AR, and drone tracking applications. Featuring an 850nm band-pass filter to eliminate interference from other light sources, along with the ability to alternate between InfraRed and Visible spectrum imaging with software-selectable filter switching technology. Capture and record full-resolution greyscale reference video and 3D motion with precision and accuracy using the camera's 1.3MP image sensor, native 240fps frame rate, and 4.2ms latency. A single RJ45 Ethernet port facilitates data and camera sync as well as PoE delivery.
1.3 MPResolution
+/- 0.30 mm3D accuracy1
240 FPSnative frame rate
1000 FPSmax frame rate2

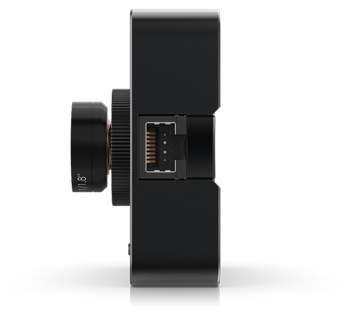

Innovative Compact Design
Intuitive & elegant DesignIn designing the PrimeX series, OptiTrack considered the complete lifetime of a motion capture camera - from unboxing to setup, capture, and teardown. Each process is elegantly accommodated with a nod to simplicity and usability.

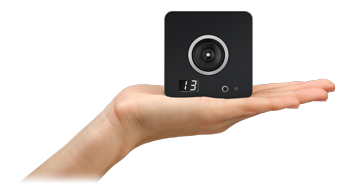

Small footprint, lightweightThe SlimX 13's 2.7" square signature, 12 ounce weight and invisible 850nm IR illumination are perfect for applications which require a discreet tracking system.
High Frame-Rate Capture
240fps
Slim Series PrecisionThe Slimx 13’s 240 FPS native capture rate and image stopping global shutter is ideal for measurement tasks of people and objects moving at speeds up to 125mph.
Versatile Camera Range
Mix and Match CamerasAny camera in the Prime and Primex family can be used together to create the optimal configuration for any use case. That is 11 different cameras that can be chosen to deliver the highest 3D accuracy in any environment.
Premium Lens and Filter Options

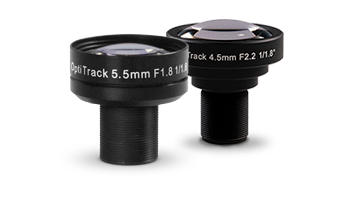

"Fast Glass" M12 lensesWe custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Slimx 13’s standard 3.5mm and optional 4.5mm lens are treated with a wide band anti-reflective coating, dramatically increasing light transmission to the imager, yielding larger volumes and more precise 3D data.
Filter OptionsAlternate between IR and visible spectrum imaging with our software selectable Filter Switcher technology, or select a band-pass filter to eliminate interference from other light sources even more thoroughly.
850nm band-pass
800nm Filter
700nm Filter
Integrated Image Processing
Powerful on-board image processingAll OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.

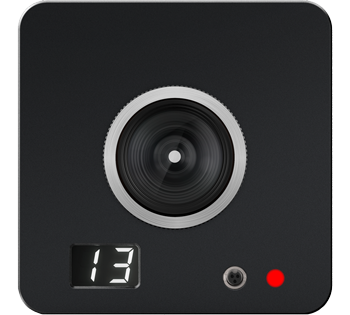

Built-in LED Status Indicator
On-camera status indicatorYour OptiTrack system will let you know what it’s up to with the user definable colour LED indicator. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes colour. Have your own idea? Simple software controls help you make it so.
Greyscale Referrence Video
Full resolution greyscale reference videoAll Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
Pair Perfectly with the eSync 2
External sync in/out, Genlock, and Time CodeSynchronize any Prime and Primex cameras to any signal or source with the eSync 2 with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
Customisable Solutions
Expert system configuration for any spaceOptiTrack has built over 10,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
Pair with Motive Tracking Software
It's more than just camerasIn addition to the essentials to which you’ve grown accustomed, you’ll also discover several new software features that will make you wonder how you ever got along without them. Enjoy innovations like our Continuous Calibration, where a wand wave is required on first installation only, then calibrates automatically just by using the system. No longer does the calibration degrade over time, temperature change, or after cameras are bumped
2D Object Data
Reconstructed 3D Points
Skeletons
Rigid Bodies
OEM And Computer Vision Integration
free SDK availableIncorporate PrimeX 13W cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
