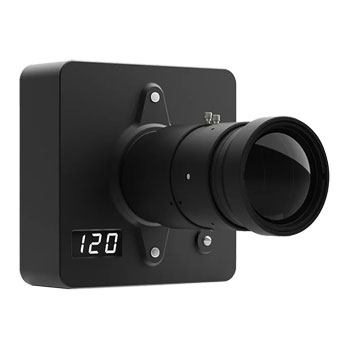

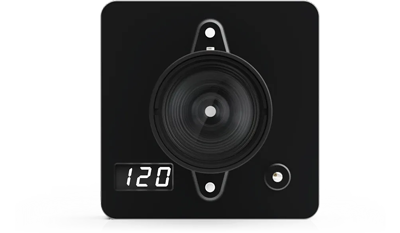

OptiTrack - 'SlimX 120'
Maximum Accuracy, Longest Range, Highest ResolutionThe OptiTrack SlimX 120 camera is designed for applications that require class-leading 3D motion measurement precision in a very large volume in a compact, nearly invisible form factor. Featuring OptiTrack's longest camera-to-marker range for active markers and invisible IR illumination perfect for applications that need discreet tracking. Nothing compares with the accuracy and durability of the SlimX 120.
12.0 MPResolution
+/- 0.1 mm3D accuracy1
300 FPSnative frame rate
1000 FPSmax frame rate2

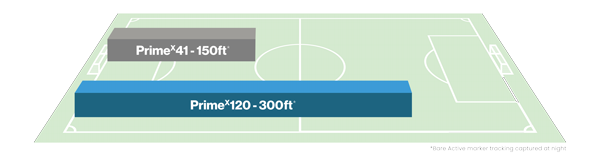

The Longest Camera-to-Marker Range
Long Range PerformanceSlimX 120 cameras offer OptiTrack's longest camera-to-marker range for Active markers. OptiTrack accuracy with more range enables huge tracking volumes for a wider variety of training and simulation scenarios, extreme ground or aerial robotic facilities, larger cinematic virtual production studios and more.

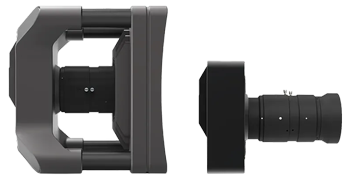

Smooth footprint, lightweightThe Slimx 120’s shallow profile, light weight and invisible IR illumination are perfect for applications which require a discreet tracking system such as location-based virtual reality and cinematic virtual production.

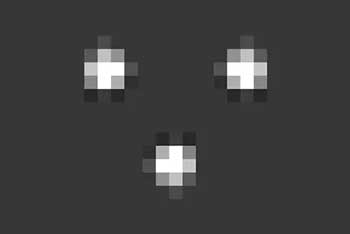

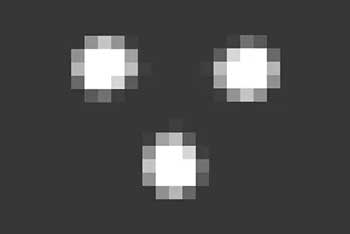

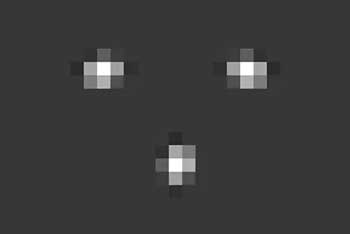

OptiTrack's Highest-Resolution Cameras
enable users to track smaller markers that are both closer to each other, and farther away from the cameras.
OptiTrack's Highest-Resolution Cameras
enable users to track smaller markers that are both closer to each other, and farther away from the cameras.
OptiTrack's Highest-Resolution Cameras
enable users to track smaller markers that are both closer to each other, and farther away from the cameras.
Designed and Manufacturerd in Oregon
SlimX Equals PrecisionSlimx cameras are designed and manufactured in-house at OptiTrack’s headquarters in Oregon to ensure our exacting quality standards are met. We design lenses with low-distortion and true 10-bit grayscale depth sensor processing which reduces noise and improves precision—resulting in perfectly crisp images, better centroids and better 3D accuracy.

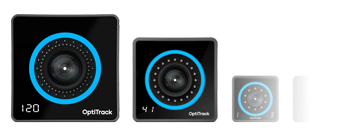

Versatile Camera Range
Mix and Match CamerasSystems can pair Slimx 120 cameras with any other Primex or Prime Color cameras to create the optimal infrared configuration for any use case and deliver the highest 3D tracking accuracy to any environment.
High Frame-Rate Capture
300fps
Slim Series PrecisionThe Slimx 120's 300 FPS capture rate and image stopping global shutter can be used when your application requires precision for movement speeds above 150mph.
Premium Lens Quality

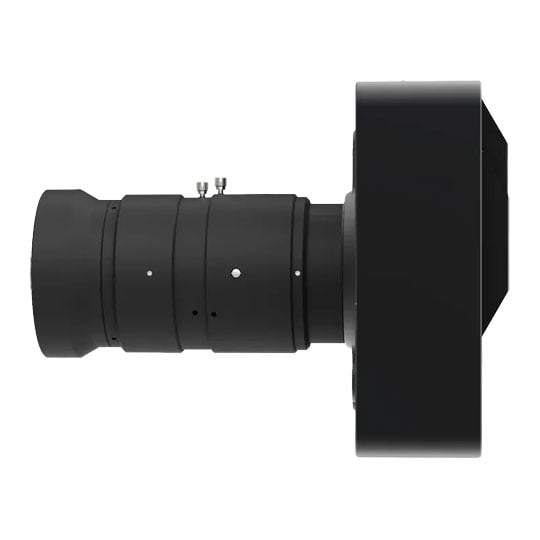

“Fast glass” lensWe custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Slimx 120’s standard 12mm lens is treated with a wide band anti-reflective coating, which dramatically increases light transmission to the imager, yielding larger volumes and more precise 3D data
Choose the wider-view optionFor wider volumes that demand elite accuracy, the Slimx 120 is also available with a 65° x 51° 18mm wide-view lens. The additional Field of View lets users deploy fewer cameras to capture movement in wider areas.

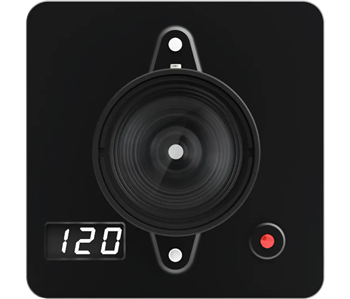

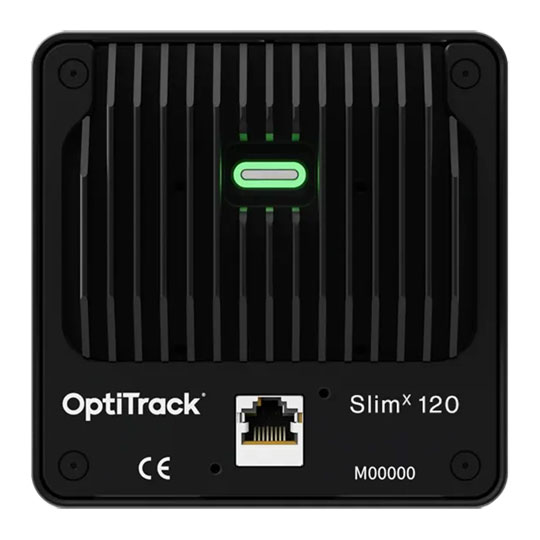

Customisable LED Indicator
on-Camera status indicatorSlimx cameras can keep users informed with definable color LED indicator. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.

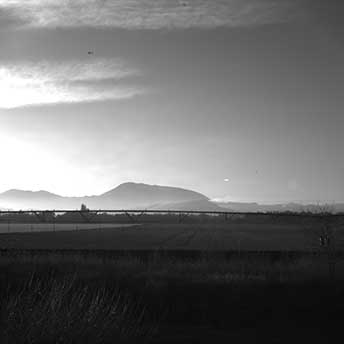

Greyscale Reference Video

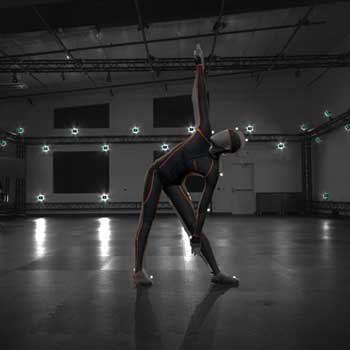

Full resolution greyscale reference videoAll PrimeX cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
Pairs Perfectly with the eSync 2
External Sync in/out, Genlock, and Time Code Synchronize any Prime and PrimeX cameras to any signal or source with the eSync 2 with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.

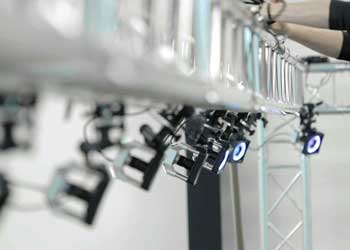

Customisable Solutions
Expert system configuration for any spaceOptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
Pair with Motive Tracking Software

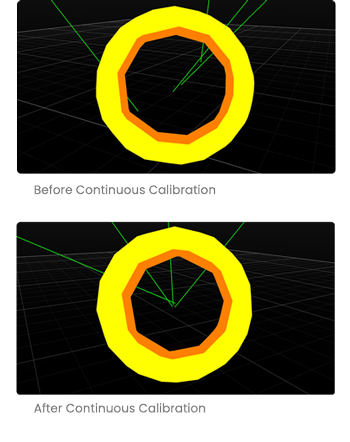

it's more than just camerasPrimeX cameras work hand-in-hand with OptiTrack’s Motive 3D motion capture software featuring Trained Markersets, Continuous Calibration, Skeletal Solver and more. The PrimeX cameras and Motive enable users to see and analyze tracking data to inform everything from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.
Free Customisable SDK
OEM & computer vision integrationIncorporate PrimeX 120 cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
