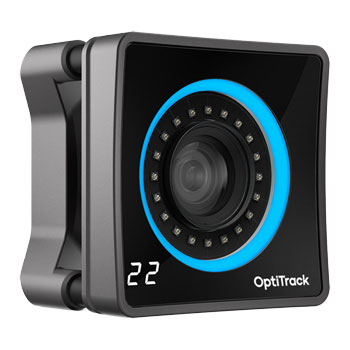

OptiTrack - 'PrimeX 22'

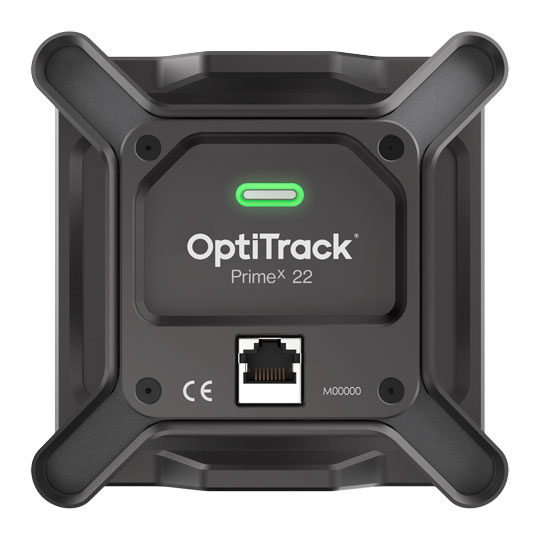

The perfect blend of range, speed, and FOVIntroducing the OptiTrack PrimeX 22, a cutting-edge motion capture camera designed to elevate even the most demanding workflows. Equipped with a powerful 2.2 MP image sensor, the PrimeX 22 captures stunning video at a resolution of up to 2048 x 1088, boasting an impressive native frame rate of 360 FPS. This high-performance camera ensures no detail goes unnoticed thanks to its low-distortion lenses and superior 10-bit grayscale depth, offering crisp imagery even at extraordinary movement speeds of 150 mph and beyond. With its seamless connectivity via an RJ45 Ethernet port for data and camera synchronization, the PrimeX 22 is easy to set up and perfect for any professional looking to elevate their motion capture experience.
2.2MPResolution
+/- 0.15mm3D Accuracy
360 FPSNative Frame Rate
500+ FPSMax Frame Rate
PrimeX Equals Precision
improved precisionIn-housedesigned low distortion lenses and true 10-bit grayscale depth reduces quantization noise and improves precision—resulting in perfectly crisp and beautiful images, better centroids and better 3D accuracy.
Megapixels matter, but image quality matters more.

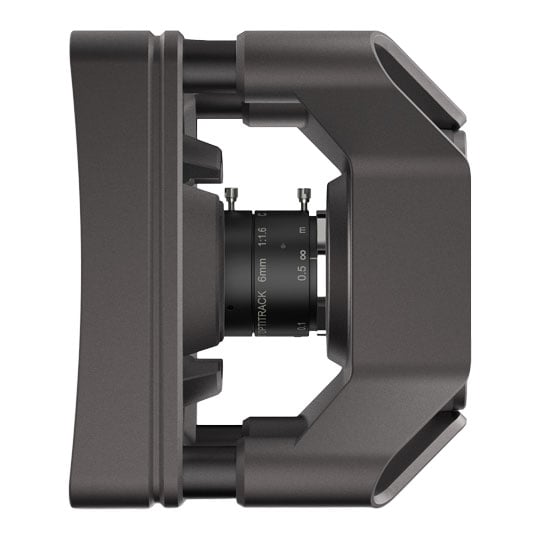

Intuitive And Elegant Design
a nod to simplicity and usabilityIn designing the Primex series, we considered the complete lifetime of a motion capture camera—from unboxing to setup, capture, and teardown. Each process is elegantly accommodated with a nod to simplicity and usability.

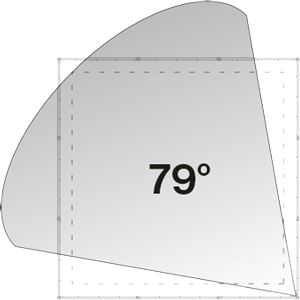

Maximize Volume Size In Smaller Spaces
ultra-wide angle format and impressive rangePrimex 22 boasts a ultra-wide angle format and impressive range—two features that do not co-exist in any other brand of motion capture camera. It delivers impressive capture volumes with edge to edge coverage in labs and studios under 50’, and much larger measurement areas with overhead camera setups.
High Frame-Rate Capture
360FPS
Prime Series precisionThe Primex 22’s 360 FPS capture rate and image stopping global shutter can be used when your application requires Prime Series precision for movement speeds above 150mph.
Tracks Passive And Active Markers
combination of active and passive markersTracks Passive and Active Markers with positional errors less than +/-0.20mm and rotational errors less than 0.5 degrees. For some tracking applications, customers find benefit in using a combination of active and passive markers.
Powerful On-Board Image Processing
integrated image processingAll OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.

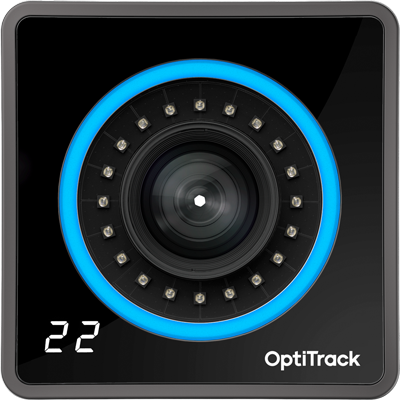

User Definable Colour LED Indicator
On-camera status indicatorYour OptiTrack system will let you know what it’s up to with the user definable color LED indicator surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
New, higher output strobeUltra high power LEDs provide improved range for any given shutter setting. The world's longest range motion capture camera just got even better.
Mix And Match Cameras
highest 3D accuracyAny camera in the Prime and Primex family can be used together to create the optimal configuration for any use case. That is 11 different cameras that can be chosen to deliver the highest 3D accuracy in any environment.

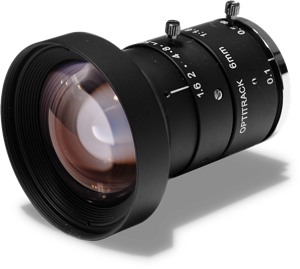

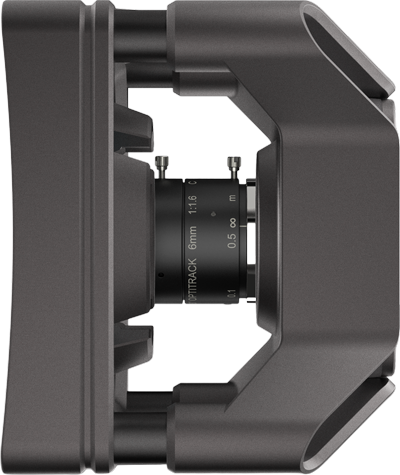

“Fast Glass” 6.8mm Lens
optimal marker trackingWe custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Primex 22’s F1.6 lens is treated with a wide band anti-reflective coating, which dramatically increases light transmission to the imager, yielding larger volumes and more precise 3D data.
Easy Set-Up
Aim AssistAim assist and easily accessed lens controls make the Primex 22 fast and easy to set up.
Aim AssistAim assist and easily accessed lens controls make the Primex 22 fast and easy to set up.

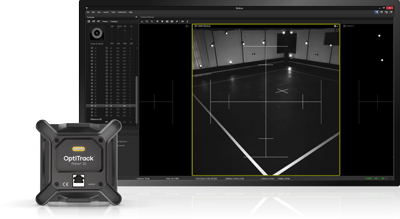

Full Resolution Grayscale Reference Video
reference video sourceAll Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
External Sync In/Out, Genlock, And Time Code
Camera syncSynchronize any Prime and Primex cameras to any signal or source with the eSync 2 with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
Expert System Configuration For Any Space
Custom BuiltOptiTrack has built over 10,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
It’s More Than Just Cameras
Continuous CalibrationIn addition to the essentials to which you’ve grown accustomed, you’ll also discover several new software features that will make you wonder how you ever got along without them. Enjoy innovations like our Continuous Calibration, where a wand wave is required on first installation only, then calibrates automatically just by using the system. No longer does the calibration degrade over time, temperature change, or after cameras are bumped.
OEM And Computer Vision Integration
2D Object Data
Reconstructed 3D Points
Skeletons
Rigid Bodies
free SDK availableIncorporate PrimeX 22 cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
