(Open Box) SPL - Control One Monitor Controller
(Open Box) SPL - Control One, Monitor Controller with 2 Stereo Speaker Outputs, Subwoofer Output
- By DPD On 23rd May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Professional Monitor Controller

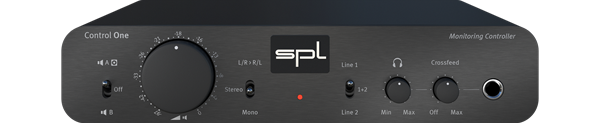

SPL - Control One
High-quality Monitor Controller
with Phonitor MatrixWhen you want to produce professional-grade projects, a flexible monitoring chain with a high-grade monitor controller is of the upmost important. SPL’s ‘Control One’ is a premium monitor controller which features switchable outputs for two pairs of speakers alongside a subwoofer output – all the tools you’ll need to make sure your mixes translate correctly.
The Control One sports two analogue stereo input sources, each of which are directly routed to a line-level output upon selection. There’re three monitoring modes on offer too, allowing you to audition your mixes and masters with incredible precision, alongside a premium headphone amplifier with SPL’s highly lauded ‘Phonitor Matrix’. SPL’s Control One deserves to be at the heart of your studio – your studio projects will thank you for it!
2 x 1/4"Balanced Line Inputs
10Hz - 200kHzFrequency Response
1 x 1/4"Balanced Subwoofer Output
Amazing Features
• Monitor controller built with top-drawer components
• 3 monitoring modes: Stereo, Mono, and Channel Swap
• 2 analogue stereo inputs — enough to hear your mix and a reference
• Class AB output stage with ample power for a variety of popular headphone models
• Subwoofer output switches on and off with speaker pair A
• Switchable outputs for 2 pairs of speakers
• Supplied 12V plug-in power supply
Comprehensive Monitoring
connect two analogue stereo sourcesSPL’s Control One has everything you could need for in-depth, nuanced monitoring. It’s possible to audition your projects through two switchable pairs of monitors, alongside a subwoofer which is switched on/off with speaker pair A. With Control One it’s possible to connect two analogue stereo sources, enabling you to hear your mix as well as a reference – a hugely useful feature for comparing mixes.
The selected input signal is routed direct to the Control One’s line-level output, allowing it to loop between separate devices without ever losing an output. On top of all this, there’s three monitoring modes to choose from, Stereo, Mono and Channel Swap.
Experience the Phonitor MatrixWe all know that listening to a mix through speakers and through headphones presents a very different mix. This is why music mixed on headphones often doesn’t ‘sound right’ on speakers, and vice versa.
Control One helps to level the playing field thanks to three parameters: Crossfeed, Speaker Angle and Centre Level. On Control One, Centre Level is by default set tp -1dB and the Speaker Angle to 30 degrees – values with which SPL determined will reflect the most common real-life scenarios. The Crossfeed setting sets the level of crosstalk between stereo channels.
Premium Components Throughout
push-pull Class AB designLike all SPL products, Control One is made using only the highest quality components, and the results of this dedication to quality clearly shows. Delivering a 10Hz – 200kHz frequency range, 121dBu of dynamic range, -99dBu of self-noise and 0.002% of total harmonic distortion.
The headphone amplifiers output utilises a push-pull Class AB design with more than enough power to drive most of today’s most popular headphones. Control One ships with a 12v plug-in power supply unit, along with a secondary internal power supply which generates +/-17 volts for the Control One’s analogue audio sections, achieving up to +22dBu of input gain in total.

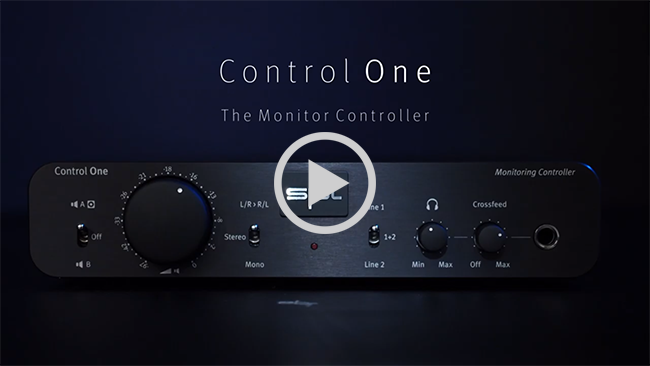

SPL - 'Control One'
An Overview
The Tech Spec

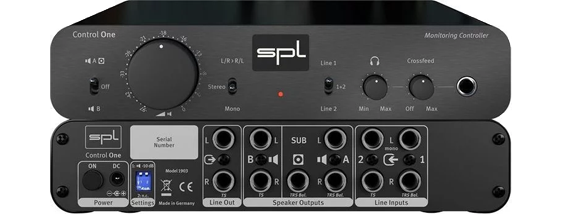

| Features | Specification | Analogue I/O | 2 x 1/4" Balanced Line Inputs 2 x 1/4" Unbalanced Line Inputs 2 x 1/4" Balanced Speaker Outputs 2 x 1/4" Unbalanced Speaker Outputs 1 x 1/4" Balanced Subwoofer Output |
|---|---|
| Input Gain | +22.5 dBu |
| Input Impedance | Line In 1: 20 Kilohms Line In 2: 10 Kilohms |
| Common Mode Rejection | Line In 1: < 60 dB |
| Output Level | Speaker Output (600 Ohms): +22 dBu, Max |
| Output Impedance | Speaker Out 1 (Balanced): 150 Ohms Line Out (Unbalanced): 75 Ohms Sub Out (Balanced): 150 Ohms |
| Frequency Response (-3 dB) | 10 Hz to 200 kHz |
| Dynamic Range | 121 dB |
| Noise | -99 dB (A-Weighted, 0 dBu, 600-Ohm Load) |
| THD+N | 0.002% (0 dBu, 10 Hz to 22 kHz, 600 Ohms) |
| Crosstalk | < 75 dB at 1 kHz |
| Attenuation | -93 dB (Fade Out Attenuation) |
| Headphones Output | 1/4" Stereo Jack |
| Wiring Scheme | Wiring Tip = Left, Ring = Right, Sleeve = GND |
| Source Impedance | 20 Ohms |
| Internal Power Supply | Operating Voltage:
Analogue Audio: ±17 V Headphone Amplifier: ±19 V Relays and LEDs: +12 V |
| Weight | 3.3 lb / 1.5 kg |
