(Open Box) Sennheiser e 614 Polarized Condenser Microphone
(Open Box) Sennheiser e 614 Super-cardioid Electret Condenser Microphone, 40-20kHz, Phantom Power
- SCANPROTECT Protect against installation damage for 28 days. More info

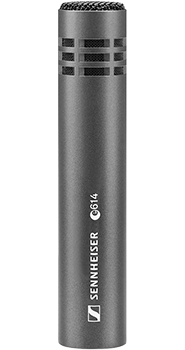

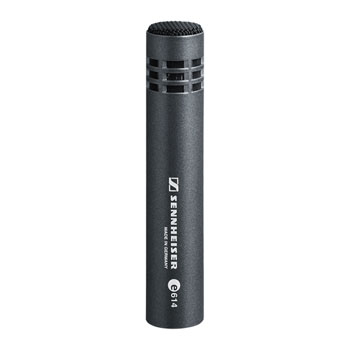

Polarized Condenser Microphone
Sennheiser - e 614
Accurate Sound RecordingThe Sennheiser e 614 is a polarized condenser microphone that features an extremely wide frequency range with focused pick-up and an outstanding transient response. As a condenser microphone, the e 614 excels in demanding scenarios with a natural, full sound. Its wide frequency range means it is suitable for capturing almost every instrument; its incredible dynamics pick up fine nuances from the air, giving them space and depth.
Thanks to the precise directivity, the e 614 safely reduces the bleed from other instruments on stage or in the studio. With its high maximum sound pressure level, it is especially designed for percussion and as an overhead mic, but also works just as well on stringed and woodwind instruments.
139 dBMax SPL
40Hz - 20 kHzFrequency Response
50 ΩImpedance
at a glance
• Condenser microphone suitable for percussion, stringed and woodwind instruments
• Excellent directivity over the entire frequency range (40-20,000 Hz)
• Designed for high sound pressure levels
• Natural sound for flexible applications
• Rugged and ready for the road
The Tech Spec
| Features | Specification | Dimensions | Ø 20mm, L = 100mm |
|---|---|
| Connector | XLR-3 |
| Frequency Response | 40 - 20000 Hz |
| Transducer Principle | Pre-polarised condenser microphone |
| Weight | Without cable: 73 g |
| Pick-Up Pattern | Super-cardioid |
| Sensitivity In Free Field, No Load (1kHz) | 3 mV/Pa = - 50dB (0 dB = 1 V/Pa) |
| Nominal Impedance | 50 Ω |
| Min. Terminating Impedance | 1000 Ω |
| Phantom Powering | 12 – 52 V / 3 mA |
| Equivalent Noise Level | 24 dB(A) |
| Equivalent Noise Level Weighted As Per CCIR | 35 dB |
| Maximum Sound Pressure Level (Passive) | 139 dB/SPL |
