(Open Box) Roland SPD-SX Pro Sampling Pad
(Open Box) Roland - SPD-SX Pro - 9 Velocity-sensitive Pads, 8 Trigger Inputs, 6 Outputs, Colour Display
- SCANPROTECT Protect against installation damage for 28 days. More info
Flagship Sampling Pad
Roland - SPD-SX Pro
THE FLAGSHIP SAMPLING SIDEKICKRoland's SPD-SX PRO is the ultimate sampling pad for the most demanding gigs. With years of road testing and extensive user feedback from the SPD-S and SPD-SX, the top-tier SPD-SX PRO raises the bar again. Harnessing the advanced sample pad technology of its predecessors, the SPD-SX PRO boasts an array of requested professional enhancements and is built for life on the road. Illuminate dark stages with a large color display and customizable multi-color trigger lights.
Expand your performance setup with more audio outputs, additional trigger inputs, and hi-hat and FX expression pedal control. And go further with a massive 32 GB memory, 48 kHz audio playback, increased pad sensitivity without crosstalk, and a dedicated SPD-SX PRO App for easier kit editing.
1550+Sounds
9Pads
32 VoicesPolyphony
at a glance

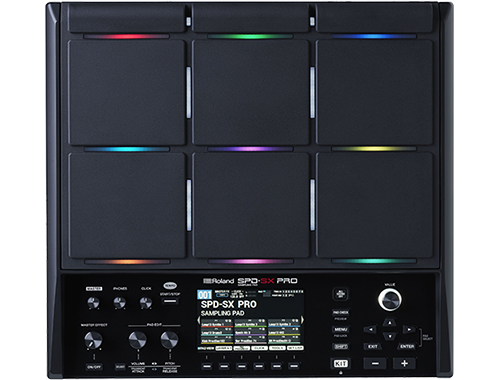

• Nine pads with Roland’s advanced trigger technology, including six large pads and three top-row shoulder pads
• High-visibility, horizontal and vertical LEDs with multi-color customization
• Increased shoulder pad sensitivity and improved crosstalk performance

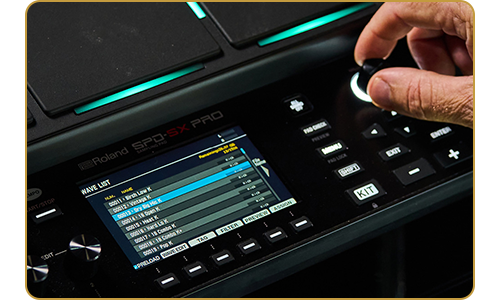

• 4.3-inch color display for easy navigation and viewing during performance
• Import 48/44.1 kHz (16-/24-/32-bit) WAV/AIFF files and MP3s (32–320 kbps) with automatic conversion to 48 kHz/16-bit upon loading

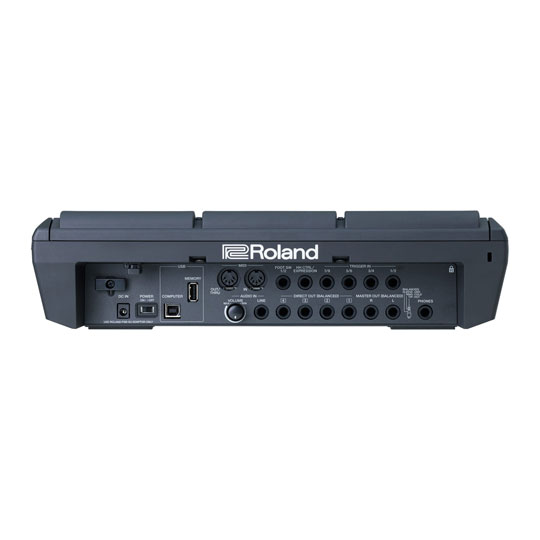

• Stereo main output, four direct mono outputs, balanced for easy mixing on stage
• Connectivity for up to eight external individual triggers/pads (four stereo triggers or eight mono triggers with Y-cables)
• Dedicated SPD-SX PRO App for Windows/Mac for easy importing, managing samples, and deep kit editing
• 32 GB of internal storage for samples, backing tracks, and click tracks
• Input for hi-hat or footswitch expression control
Introducing the Roland SPD-SX PRO
Flagship Sampling Pad

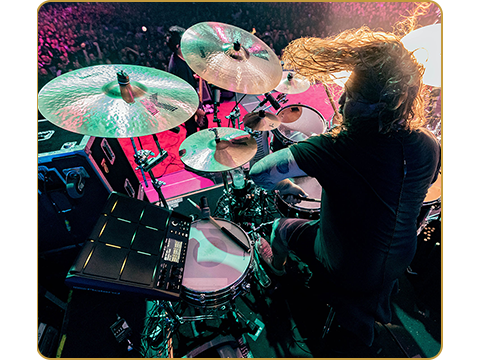

Built To Hit The Road
bulletproof packageEquipment on the road takes a beating on and off stage. Since 2011, pro drummers have put the SPD-SX through the ultimate trial by fire, from packed clubs to sold-out stadiums.
The SPD-SX PRO adds to that legacy, incorporating years of feedback into its upgrades. With customizable LED lights, a large color screen, and triggering you can count on, this bulletproof package is ready to rock night after night.
LIGHT IT UPWhen the lights go down, the PRO lights up. Customizable pad-dividing LED and trigger lights let you see all nine pads on dark stages—goodbye gaffer tape! Assign any vertical or horizontal light to one of ten preset colors or create and name your own.
Group together kicks, snares, backing tracks, and clicks with their own assigned color. And set the horizontal pad lights to be on constantly, light only when a pad is struck, or flash dynamically with its assigned WAV.
Loaded Samples and Sounds
ALL ABOARDThe SPD-SX PRO comes loaded with 1,550 high-quality sounds and 200 kits (43 erasable preset kits and 157 user kits). And in the heat of battle, the SPD-SX PRO’s processing power lets you swap to a new kit without cutting off the sound of the existing kit—so as the audio decays at the end of the last sound that you played, you’ve already changed kits ready for the next track in the set. Need even more options? Dive into Roland Cloud sample libraries and explore the ever-expanding selection of sounds.

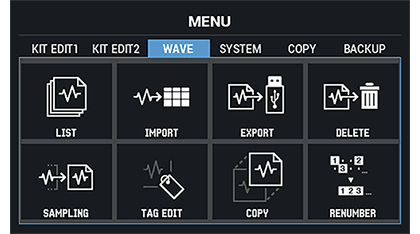

Storage & Sounds
UNDER THE HOODStorage worries are now a thing of the past. With 32 GB of internal memory, the SPD-SX PRO holds nearly 44 hours of crystal-clear 48 kHz/16-bit stereo audio. And there’s no need to fuss with converting your source formats.
You can load 48/44.1 kHz WAV, AIFF, and MP3 files with varying bit rates, and the SPD-SX PRO will automatically convert them to its native 48 kHz/16-bit audio format—a huge time saver.

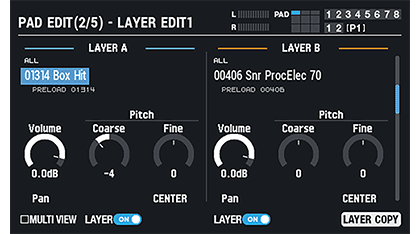

A/B Layering
STACK SOUNDSIt’s easy to create custom sound layers when you assign two sounds to a pad. You can assign a sound as the MAIN layer within the pad menu and then select another sample to layer with your original sample—resulting in MAIN and SUB sounds on the same pad. Then alternate between MAIN and SUB layers.
You even have separate volume, pitch, transient attack, and release control for each sound, so you get the perfect blend of layers.
Take Full Control

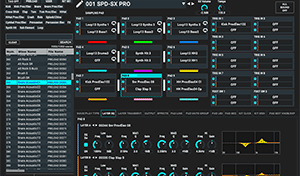

Dedicated AppWith nearly unlimited sounds under your sticks, you need to stay organized. Using the dedicated SPD-SX PRO App from Roland Cloud, you can easily import audio, and edit sound or playback parameters via USB on your computer. Drag and drop samples, create kits, adjust settings, and name as you go. The same USB connection allows you to send 8-channel audio and MIDI to the computer for recording with a DAW. /p>
Expression ControlWith expanded trigger inputs, there are even more playing possibilities at your fingertips…or feet. You can play with up to nineteen surfaces when you max out all pads, external triggers, and footswitch inputs. Connect a hi-hat controller, like the Roland VH-10 V-Hi-Hat, and play with open and closed pedal expression or add snare and kick pads to create a mini drum set. Alternatively, you can connect an expression pedal for real-time effects control as you play.

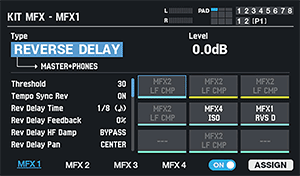

Effects and SidechainEmbrace a vast selection of high-quality processing to enhance and color your sounds. Four MFX provide everything from mod, distortion, and filter effects to delays and reverbs, and you can assign them to any pad or external trigger input within each kit. Master comp, EQ, and effect options are also available to process the overall output. Sidechain compression is included too, ensuring that kick drums and other punchy sounds never get buried in the mix.
The Tech Spec
| Features | Specification | Type | Sampling Percussion Pad |
|---|---|
| Pads | 9 |
| Kits | 200 |
| Sounds | 1550+ |
| Presets | 43 erasable kits |
| Polyphony | 32 voices |
| Analogue Inputs | 1 x 1/4" |
| Analogue Outputs | 2 x 1/4" (main out), 4 x 1/4" (direct out) |
| Headphones | 1 x 1/4" |
| Trigger Inputs | 4 x 1/4" (dual zone), 1 x 1/4" (Hi-hat) |
| MIDI I/O | 2 x 5-pin( In/Out/Thru) |
| USB | 1 x Type A, 1 x Type B |
| Pedal Inputs | 1 x 1/4" |
| Formats | WAV files |
| Memory | 32GB internal storage |
| Sampler | 60 minute per sample, 38 kHz |
| Effects | 53 Master Effects |
| Software | SPD-SX PRO App |
| Power Source | AC Adapter (included) |
| Height | 3.68" |
| Width | 14.18" |
| Depth | 13.06" |
| Weight | 6.62 lbs |
