(Open Box) Roland - 'JD-XA' Analogue/Digital Crossover Synthesizer
(Open Box) Roland - 'JD-XA' 49-key Synthesizer with Aftertouch, Analogue and Digital Synth Engines, Analogue Filters
- By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free

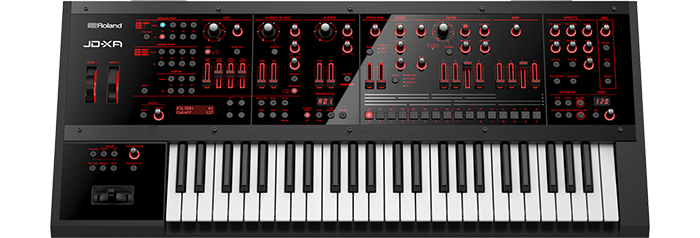

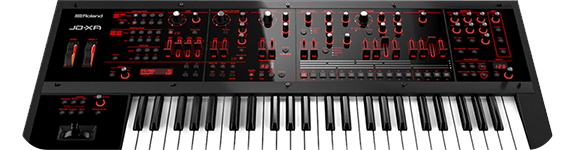

(Open Box) Roland - 'JD-XA'
Analog/Digital Crossover Synthesizer
ANALOG. DIGITAL. MAGICAL.The Roland JD-XA is a unique crossover synth that combines analog warmth and digital flexibility in a single incredibly creative, no compromise instrument. First, you’ll find a four-part, all-analog monster with true analog filters and a direct dry output. Then you get a four-part digital engine powered by Roland’s SuperNATURAL synth technology, and an impressive range of effects. The JD-XA’s engines can be used separately or interactively, giving you an incredibly versatile platform for sound design, studio work, and live performance. Using the analog and digital parts side by side, stack them up for total sonic excess, or shape digital waveforms using the analog filters to create completely innovative sound.
64 VoicesMaximum Polyphony
16 TracksSequencer
49 KeysKeyboard
Amazing Features
• Advanced synthesizer with independent analog and digital sound engines
• Digital parts can be routed through the analog filter section for warm, organic results
• Analog filter section features 4-Pole, transistor-ladder, and multi-mode
• OSC section includes Cross Mod, Ring Mod, and OSC Sync
• Intuitive 16-track pattern sequencer
The Best of Both Worlds
The Digital EngineThe JD-XA doesn’t just do classic analog, it’s also features a completely separate four-part, 64-voice digital sound engine powered by Roland’s renowned SuperNATURAL synthesizer technology. This allows you to play some of the most expressive and natural sounds available, as the JD-XA is compatible with the synth engine from the INTEGRA-7 sound module, a common favourite of top producers, composers, and sound designers. If ever you need some extra inspiration, Roland’s online Axial community features the latest downloadable creations from high-end programmers to tap into great sounds for a wide range of styles.

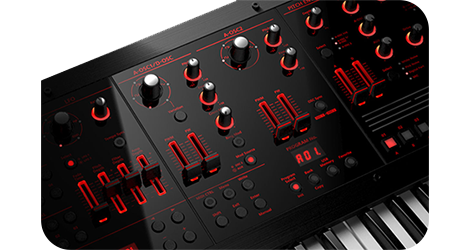

The Analog EngineEach of the JD-XA's four analog parts has two oscillators and filter and amp sections with four envelopes, all with incredibly fast attack and response times. You also get two LFOs, with super-smooth coverage from ultra-slow to ultra-fast. Begin by creating your sound from scratch, or configure the JD-XA as an eight-oscillator, pure analog version of the iconic Supersaw waveform. Alternatively, use the power of Poly Stack mode for warm, organic four-note chords that will sweep you away. Once you've got that rich analog sound, you can route it directly to the analog dry output or send it to the onboard digital effects for further sound designing experiments.

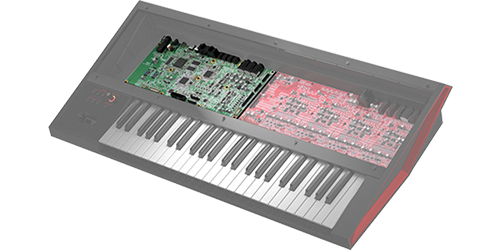

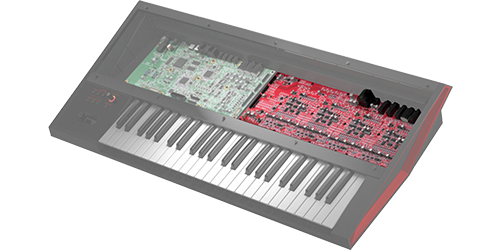

Analog & Digital Together
Power & VersatilityFeaturing a distinctive crossover design, the JD-XA is very unique in its approach to synthesis. You can blend the engines together if you likes, or you can use them completely separately, giving you two synths in one. Along with this, the analog and digital engines are able to interact in many creative ways.
As an example, digital sounds can be routed through the analog filters, or used as modulation sources for the Cross Mod and Ring Mod functions in the analog section. If you have big ideas when creating sound design, you need a powerful synth with versatility, which can all be found in the JD-XA.

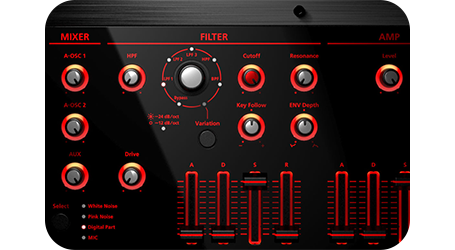

Smooth & Warm Analog Filters
Vibrant CharacteristicsThe filters in the analog section of the JD-XS are 100% analog, providing smoothin and warm sound with organic response. It features the traditional 4-pole, transistor ladder with more vibrant characteristics, along with a multi-mod filter option for the crucial LPF, HPF and BPF operations.
With a brand new circuit design, the resonance of the multi-mode filter provides a uniquely aggressive and effective sound character. As the filters are fully analog, you get an incredibly smooth slope as you turn the controls without any stepping or unwanted noise.

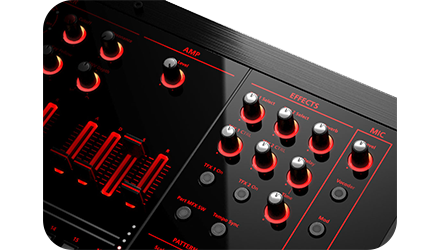

Powerful Effects
Versatile MFX ProcessorThe JD-XA is packed with a wide variety of effects ready to take on any sound shaping application. Each analog and digital section is equipped with a versatile and powerful MFX processor that gives you 67 different types of effect, including high-impact processing options such as Bit Crusher.
It also features the essentials using the five system effects processors, which give you reverb, delay, master EQ and two TFX processors each with 29 different effects types each.

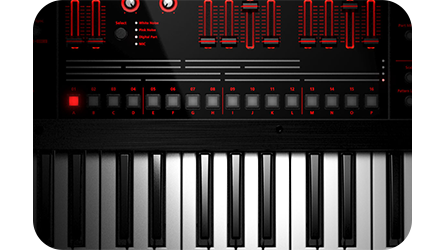

16-Track Pattern Sequencer
Real-Time & Step RecordingWith an array of sonic power at reach, you'll be eager to get straight into creating music. To spark your creativity, the JD-XA features a comprehensive 16-track pattern sequencer with 8 tracks for internal parts and 8 tracks for external sources, giving you the option to build sequences and loops quickly, with ease.
You can use the real-time recording mode to caputure sections in a familiar linear style, or use step recording mode to create in the traditional pattern style. This sequencer is designed to keep you connected to your music no matter how you choose to work, allowing your creative flow to work at full capacity.

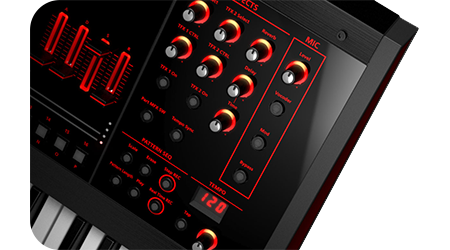

Mic-Controlled Modulation
Built-In VocoderThe mic input found on the JD-XA gives you even more creative tools for your music. You can use the mic as a modulation source and control the filter cutoff, Cross Mod, or other paramaters using your voice.
Or, you can dial up Vocoder tones, or just add some pro-grade vocal reverb using the mic's dedicated reverb processor. If you want to speak, sing or synthesize, when used with a microphone, the JD-XA is sure to deliver.
USB Interface & CV/Gate Outputs
Controls Analog EquipmentThe JD-XA comes with an integrated USB audio/MIDI interface for working perfectly with a DAW of your choice. It also features two CV/GATE outputs so you can easily interface it with your favourite CV/GATE instruments.
Analog or modular synths can be controlled straight from the JD-XA's keyboard or pattern sequencer, or directly from your DAW when the JD-XA is being used with your computer music set up by USB.

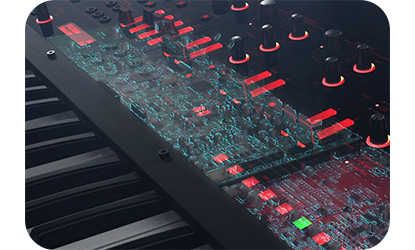

Powerful & Flexible Routing
Hands-On ControlPower, without control, is nothing. The interface of the JD-XA is made with the potential of its incredble sound engines in mind. The velocity-sensitive keyboard comes with aftertouch, and you get plenty of backlit sliders, controls and wheel controllers to edit your sound. You'll also find unprecedented routing options, thanks to the versatile system that allows you to route a single mod source to four different areas. Along with this, you can control external modules or DAW plug-ins using MIDI, USB and CV/GATE, so this synth fits in perfectly at the centre of any live or studio set up.
Roland - 'JD-XA'

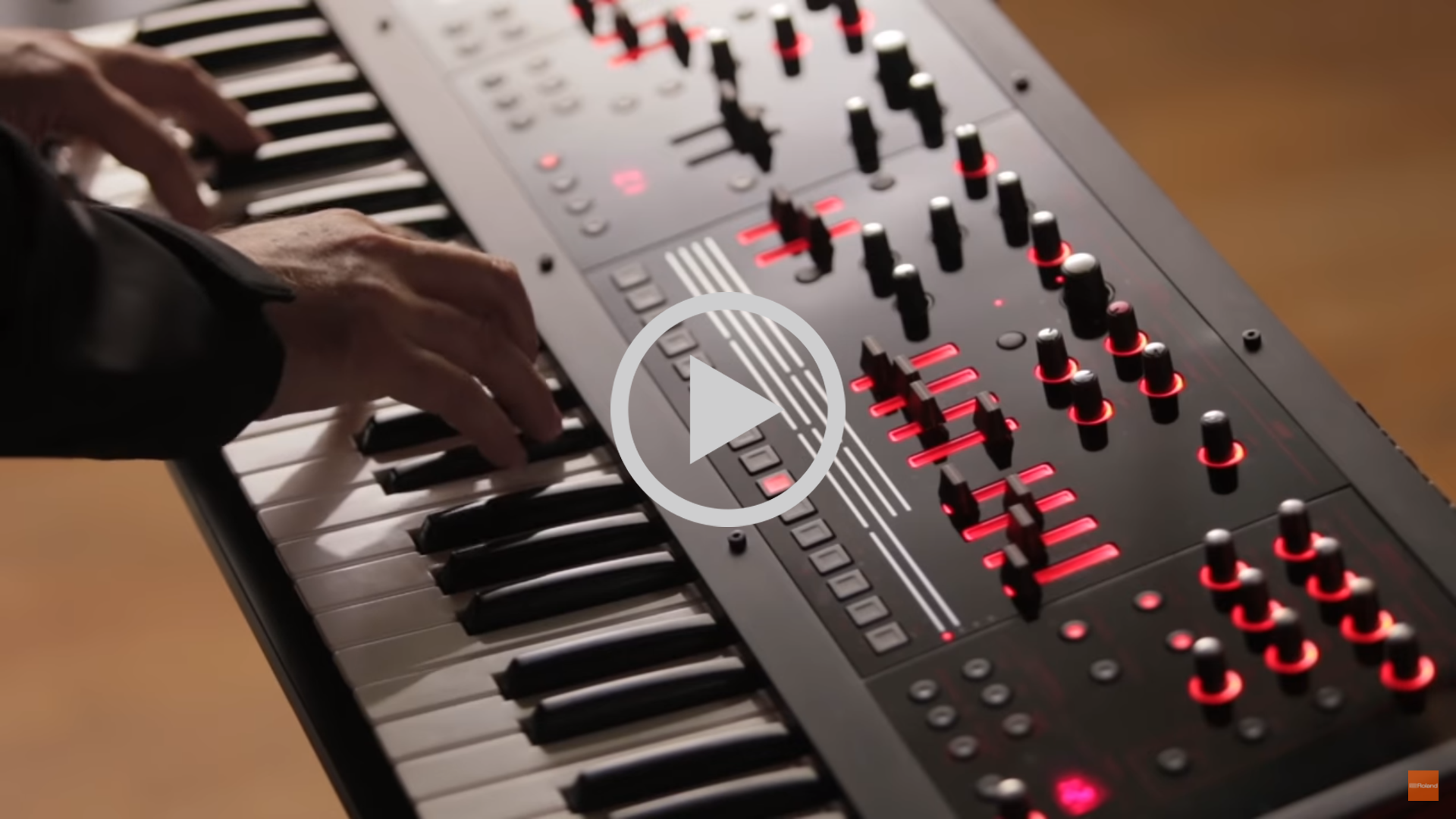

Performance by Scott Tibbs
Check out some of the stellar sounds that the JD-XA Analog/Digital Crossover Synthesizer is capable of producing, via this exemplary performance from Scott Tibbs!
The Tech Specs
| Features | Specification | Keyboard | 49 keys (with velocity and channel aftertouch) |
|---|---|
| Maximum Polyphony | Analog Part: 4 voices Digital Part: 64 voices (varies according to the sound generator load) |
| Structure | Analog Part: 4 parts (2 OSCs + AUX, 1 Filter, 1 AMP, 2 Pitch ENV, 1 Filter ENV, 1 AMP ENV, 2 LFOs and 1 MOD LFO) Digital Part: 4 parts (3 Partial (3 OSCs, 3 Filters, 3 AMPs, Envelops for each section and LFOs)) (Digital Part uses SuperNATURAL Synth tones that is compatible with the Integra-7.) |
| User Program Memory | Internal: 256 USB Flash memory: 256 The patterns of Arpeggio and Sequence are saved as programs. |
| Analog-OSC Section | Oscillator waveforms: Saw, Square, Pulse/PWM, Triangle, Sine Knobs/Sliders: Pitch, Fine, Cross Mod, Pulse Width, Pulse Width Modulation Pitch Envelopes: Attack, Decay, Envelope Depth Modulation: Cross Modulation, Ring Modulation, Oscillator Sync (A-OSC2 is applied as modulation to A-OSC1.) |
| Analog-FILTER Section | Filter Type: LPF1, LPF2, LPF3, HPF, BPF, Bypass Knobs: Cutoff, Resonance, Key Follow, Envelope Depth, HPF, Drive Envelope: Attack, Decay, Sustain, Release |
| Analog-AMP Section | Knobs: Level Envelope: Attack, Decay, Sustain, Release |
| Digital-OSC Section | Oscillator waveforms: Saw, Square, Pulse/PWM, Triangle, Sine, Variation Knobs/Sliders: Pitch, Fine, Pulse Width, Pulse Width Modulation Pitch Envelopes: Attack, Decay, Envelope Depth Modulation: Ring Modulation (Partial2-OSC is applied as modulation to Partial1-OSC.) |
| Digital-FILTER Section | Filter Type: LPF1, LPF2, LPF3, HPF, BPF, Variation, Bypass Knobs: Cutoff, Resonance, Key Follow, Envelope Depth, HPF Envelope: Attack, Decay, Sustain, Release |
| Digital-AMP Section | Knobs: Level Envelope: Attack, Decay, Sustain, Release |
| LFO Section | LFO Waveform: Triangle, Sine, Saw, Square, Sample&Hold, Random Knobs/Sliders: Rate, Fade Time, Pitch Depth, Filter Depth, Amp Depth Tempo Sync |
| Mixer Section (For Analog Part) | Level: A-OSC 1, A-OSC 2, AUX |
| Mic | Vocoder MIC Modulation |
| Effects | MFX: 8 systems, 67 types (each part has a MFX) Part EQ: 8 systems (each part has a Part EQ) TFX: 2 systems, 29 types DELAY REVERB: 6 types Master EQ Mic Input Reverb: 8 types |
| Pattern Sequencer | Tracks: 16 Patterns are saved as a program. SMF import supported. |
| Arpeggio | Preset pattern: 64 Patterns are saved as a program. |
| Controllers | Pitch bend and modulation lever, Pitch and modulation wheels |
| Display | 16 characters 2 line LCD |
| External Storage | USB Flash memory |
| Connectors | PHONES jack: Stereo 1/4-inch phone type MAIN OUTPUT jacks (L/MONO, R): 1/4-inch TRS phone type ANALOG DRY OUTPUT jack: 1/4-inch phone type CLICK OUTPUT jack: Stereo 1/4-inch phone type MIC jack: Combo type (XLR, 1/4-inch TRS phone), balanced FOOT PEDAL jacks (CTRL 1, CTRL 2, HOLD) CV/GATE OUTPUT jacks (2 systems): Miniature phone type (CV: These jacks support OCT/V (Hz/V is not supported). GATE: They output +5 V.) MIDI connectors (IN, OUT) USB COMPUTER port (USB Hi-Speed AUDIO/MIDI): USB B type (Use a USB cable and a computer with a USB port that support USB 2.0 Hi-Speed.) USB MEMORY port: USB A type DC IN jack |
| Power Supply | AC Adaptor |
| Current draw | 3,000 mA |
| Accessories | Owner's Manual AC Adaptor Power Cord |
| Dimensions | Width: 899 mm Depth: 388 mm Height: 111 mm |
| Weight | 6.5 kg 14 lbs. 6 oz. |
