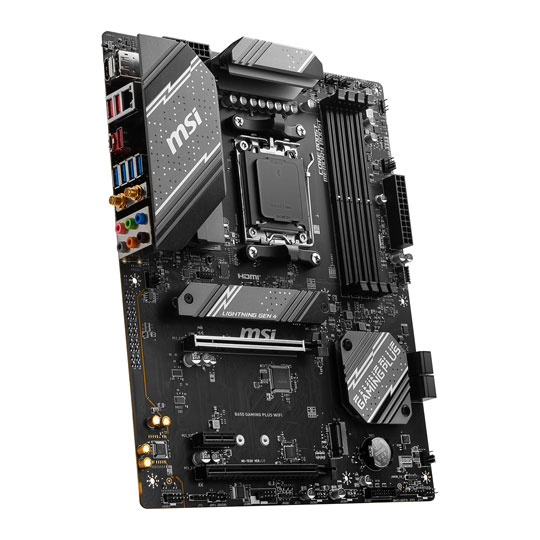

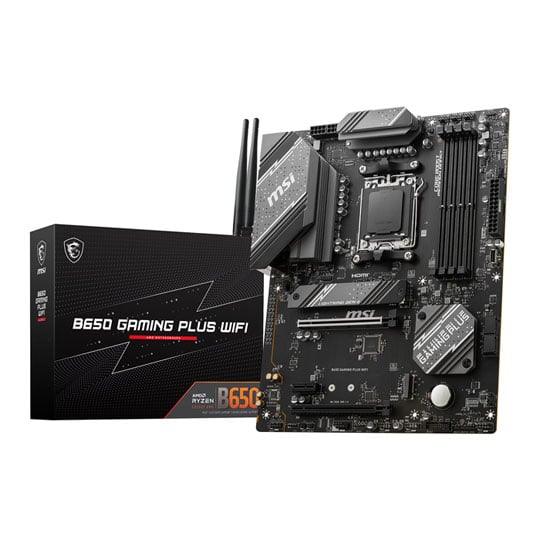

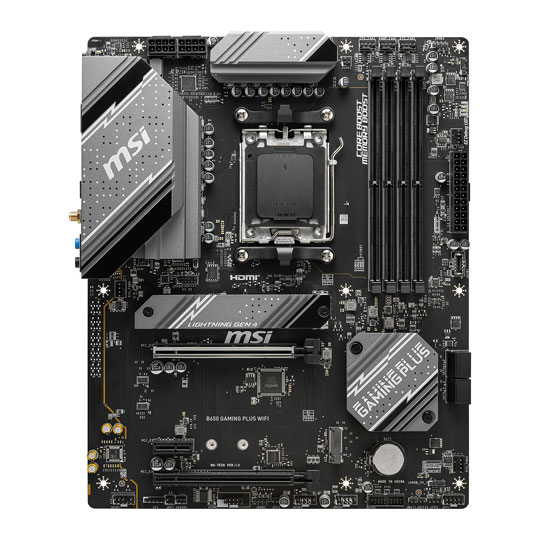

MSI AMD B650 GAMING PLUS WIFI AM5 Open Box ATX Motherboard
Open Box MSI B650 GAMING PLUS WIFI, AMD B650, S AM5, DDR5, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, AMD EXPO™, ATX
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Defeat the Competition
The B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, a convenient Wi-Fi solution and DDR5 memory support for gamers who want it all.
Supports AMD Ryzen 7000 Processors
The B650 GAMING PLUS WIFI motherboard supports AMD Ryzen™ 7000 processors.
12+2 Duet Rail Power System VRM Design
With its dual 8 pin power connectors and exclusive Core Boost technology, the B650 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings.
Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
4 x DDR5 Dual Channel (6400+ MHz OC)
Memory Boost:A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
2 x Fortified PCI-e 4.0 x16 Slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
Gen4 M.2 Connectors
The B650 GAMING PLUS WIFI motherboard features MSI's Gen4 M.2 slots
M.2 Shield Frozr
Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Wi-Fi 6E & Bluetooth 5.3

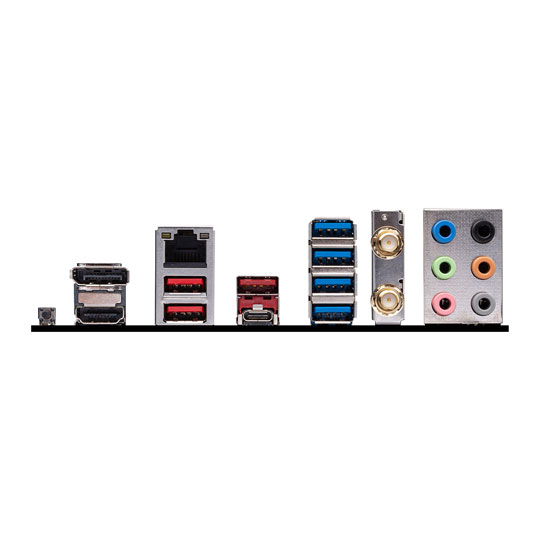

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps.
Wi-Fi 6E: Features the latest AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Features
• Supports AMD Ryzen™ 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC).
• Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work.
• Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G.
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• High Quality PCB: 6-layer PCB made by 2oz thickened copper.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
