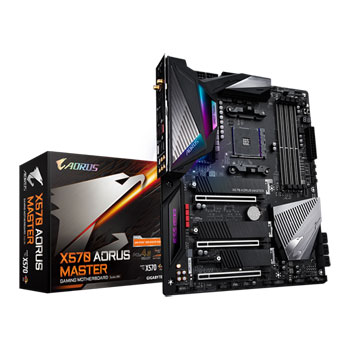

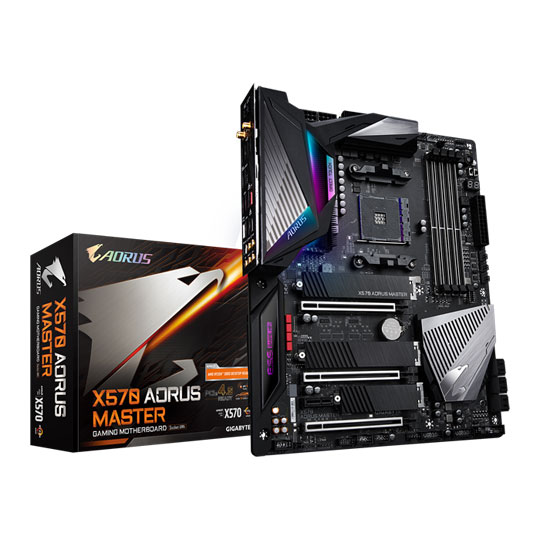

Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 Open Box ATX Motherboard
Open Box Gigabyte X570 AORUS MASTER, AMD X570, AM4, DDR4, PCIe 4.0, Triple M.2, 2-Way SLi/CrossFire, 2.5G/GbE/WiFi, ATX
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£304.99|
|Total inc. interest:||£328.56|
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£304.99|
|Total inc. interest:||£351.31|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 5th Aug
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Take Your Ryzen CPU to the Next Level
To unleash the full potential of the new 3rd Gen Ryzen CPUs, the X570 AORUS Master motherboard is a whole new chipset that utilises the best CPU power design with the best quality components alongside GIGABYTE R&D design capability, this is truly a motherboard to be pairing with the new ultra-fast Ryzen processors. High Durability and high-quality manufactured components allow the X570 AORUS Master to be a time-enduring centre piece of any magnificent build you decide to create. Take things up a notch with brand new incorporated PCIe 4.0 which increases the speed of your most valued components. Style your rig the way you want with integrated RGB lighting and effects. The GIGABYTE X570 motherboard range offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet and latest WiFi design, to fulfil users' performance, audio, and data transfer needs.
Quality Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS Master is a true beast among motherboards specifically designed for the new Ryzen series CPUs.
14 Direct Digital Power Design
X570 AORUS Master motherboard uses latest new generation Infineon multiphase PWM controller, and a total 14 phase for vCore and SOC, all with IR 3556 PowIRstage MOSFETs which are capable of providing at least 50A of power from each phase, for a total of 700A.
2X Copper PCB
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application that provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles.
Protect Your Components from Overheating
X570 AORUS MASTER uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.
Smart Fan 5 Header Setup
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Faster Speeds Over Previous PCIe 3.0
AORUS X570 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9840 MB/s, making AORUS the obvious choice for the ultimate PC.
Get a Boost in Performance with New Components
X570 AORUS Master equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Slots, re-drivers, switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance.
Faster Connection and Wireless Performance with Fewer Drops
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections and speeds of up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Hi-Fi Audio with Top Quality Components
For Hi-Fi Audio Solution, can be grouped into 2 parts. Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB Signal-To-Noise Ratio and 112dB Total Harmonic Distortion + Noise. Further, audiophile grade capacitor and gold-plated audio jack ensures the non-compensated audio performance. The TXC Oscillator provides precise time triggers to Digital-Analog Converters and WIMA Capacitors to deliver crystal clear and balanced sound.
More Metal Quantity to Sustain Higher Power and Generated Heat
AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. A Solid Pin means there is a larger contact are for electricity whilst still being ultra-durable for a longer lifespan.
Ultra-Durable Memory Armour
AORUS' exclusive one-piece stainless-steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.
Super Strong PCIe Armour
The innovative one-piece stainless-steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
New User Interface
GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.
GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour; these are the possibilities of the System Information Viewer.
• Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors.
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
• Direct 14 Phases Infineon Digital VRM Solution with PowIRstage.
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe.
• Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards.
• Intel® WiFi 6 802.11ax 2T2R & BT 5.
• Rear 125dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9118 DAC with WIMA Audio Capacitors.
• Realtek® 2.5GbE + Intel® Gigabit LAN with cFosSpeed.
• USB TurboCharger for Mobile Device Fast Charge Support.
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips.
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection.
• Front & Rear USB 3.2 Gen2 Type-C™ Headers.
• Adopts a high-quality ball bearing fan which guarantees 60,000 working hours.
• Integrated Base Plate & I/O Shield Armor.
• Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card.
|Edition||X570 AORUS MASTER|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC1220-VB 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||2-Way SLi|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Discrete GPU Required for Graphics Output|
|On-Board Graphics Connectors||None|
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Cooling||PCH Fan & Passive Heatsinks|
|Board Dimensions||305 x 244 mm|
|Model Number||X570 Aorus Master|
