DAC and Headphone Amplifier
FiiO - K11 R2R
(Black)
(Open Box)

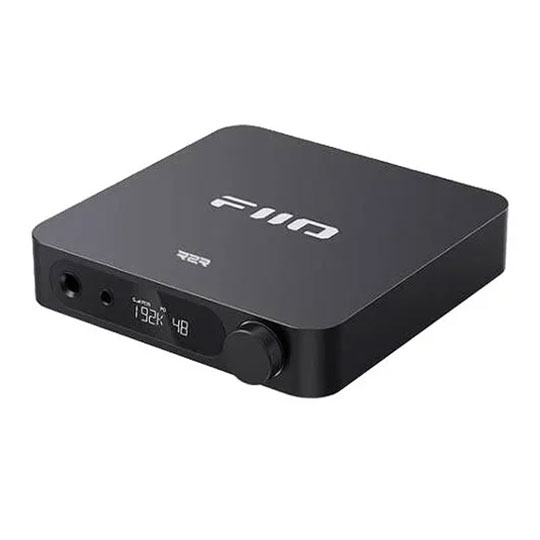

FiiO K11 R2R DAC and Headphone Amplifier

Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.

FiiO K11 R2R Desktop DAC/AMPExperience unmatched audio fidelity with FiiO's newest innovation, the K11 R2R Desktop DAC/AMP. This cutting-edge device builds on FiiO's legacy of excellence, introducing a self-developed, fully differential 24-Bit R2R Resistor Array. Designed to deliver a sound that's smooth, rich, and organic, the K11 R2R sets a new standard in audio quality.

Whether you're a dedicated audiophile or just simply enjoy high-quality sound, the K11 R2R offers an unparalleled listening experience that enhances every detail of your music.

remarkable audio clarity and detailThe K11 R2R boasts FiiO's state-of-the-art four-channel, fully differential 24-bit R2R resistor array, meticulously crafted for superior audio performance. Each channel features 48 resistors, totaling 192 ultra-precise resistors with 0.1% accuracy and minimal temperature drift. This precision-engineered array guarantees an immaculate output, providing a dark, noise-free background that enhances your listening experience. With its advanced circuit design, the K11 R2R offers remarkable audio clarity and detail, ensuring every nuance of your music is captured with fidelity.

dual operating modesThe K11 R2R features dual operating modes—NOS (Non-Oversampling) and OS (Oversampling)—giving you the flexibility to customize your audio experience. NOS mode preserves the original sampling rate, delivering a warm, natural sound with an organic feel. Meanwhile, OS mode elevates the audio by upscaling signals to 384kHz, resulting in increased detail and clarity for a more precise listening experience. Whether you prefer the authentic, unaltered sound of NOS or the refined, high-definition output of OS, the K11 R2R lets you easily switch between modes to match your audio preferences.

what's in the box? • FiiO - K11 R2R DAC and Headphone Amplifier
• Power Adapter (including AC cable)
• USB A to C cable
• 6.35mm adapter
• Quick start guide

FIIO K11 R2R CG Video

The Tech Spec

Features Specification
DAC Chip Fully Differential 24-Bit R2R Resistor Array
Number of Resistors 48 per channel, total 192 high-precision ultra-thin film resistors
Accuracy of Resistors 0.1%
Operating Modes NOS (Non-Oversampling), OS (Oversampling)
Oversampling Rate Up to 384kHz in OS mode
Supported Audio Formats PCM: Up to 32-bit/384kHz
DSD: Up to DSD256 (requires native DSD output mode)
Headphone Outputs 6.35mm Single-Ended
4.4mm Balanced
Output Power Up to 1300mW per channel
Amplifiers Low-Pass Filter: TI OPA1642
Operational Amplifiers: Dual SGM8262
Gain Levels Three-level adjustable gain
Volume Control NJW1195A precise digital volume chipset
Power Supply External 12V power supply
17 Low-Noise LDO precision voltage regulator ICs
2 DC-DC converters
