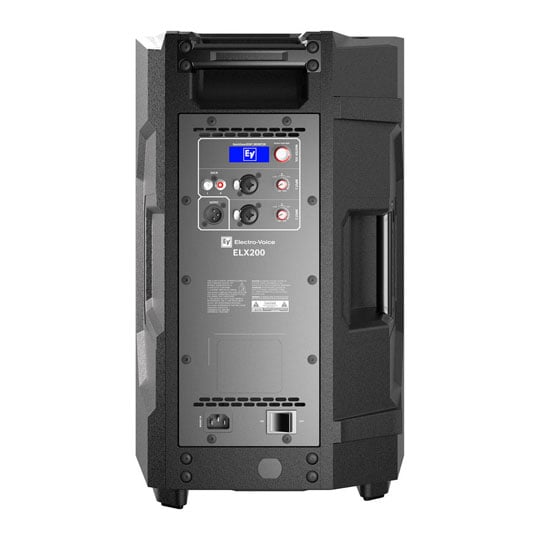

(Open Box) Electrovoice - ELX200-10P-EU - 10" 2-way Powered Speaker
(Open Box) Electrovoice - ELX200-10P-EU - 10" 2-Way Powered Speaker - Black
Email me when the availability or price changes
(Open Box)
10" Powered Loudspeaker
Electrovoice - ELX200-10P
Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.
1200w powered speaker
EV's ELX200-10P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (10-inch EVS-10M woofer coupled with a DH-1L 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
130 dBMax SPL
QuickSmartDSPBuilt-In
1200WTotal Power
at a glance
• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading
• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting
suitabililty
• For Live Stages, DJ Setups, Mobile Rigs
Meet Electro-Voice's ELX200 Portable Loudspeaker Series!
The Tech Spec
| Features | Specification | Configuration | Active 2-Way |
|---|---|
| Total Power Capacity | 1200 W |
| Amplifier Class | Class-D |
| HF Driver | 1 x 1" / 51 mm Horn-Loaded Titanium Compression Driver |
| LF Driver | 1 x 10" / 25.4 cm Woofer |
| Frequency Range | 53 Hz to 20 kHz -10 dB |
| Frequency Response | 59 Hz to 18 kHz -3 dB |
| Maximum SPL | 130 dB |
| Coverage Angle | 90° H x 60° V |
| Audio I/O | 2 x Combo XLR-1/4" TRS Input 1 x Stereo RCA Input 1 x XLR 3-Pin Output |
| Crossover | 1.8 kHz |
| EQ | Yes |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Current Consumption | 1.8 A |
| Mounting | 3 x M10 |
| Construction Material | Metal Grille, Polypropylene |
| Dimensions | 20.8 x 13 x 12.8" / 52.8 x 33 x 32.5 cm |
| Weight | 29.9 lb / 13.6 kg |
