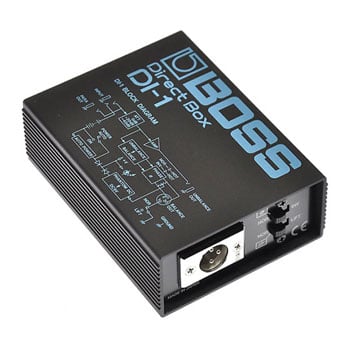

(Open Box) Boss DI-1 Professional Direct Box
(Open Box) Boss DI-1, High Quality Active DI Box, Phase reversal & ground lifting switches, Three input level switches
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
(Open Box)
Active Direct Box
BOSS - DI-1
Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.
high-quality direct boxThe ‘DI-1’ from BOSS is a professional active direct box with staggeringly clear sound for transforming high impedance, unbalanced instrument outputs to the low-impedance, balanced inputs of your chosen mixing console.
The DI-1 features ground-lift, phase-reverse switches and an input attenuator. The typical tough BOSS housing also ensures the DI-1 is more than suited to live application too alongside studio use!
at a glance
• Active direct box with superior frequency responce to conventional transformers
• Operates on a 9-volt battery or phantom power from a mixer
• Phase reversal and ground lifting switches
• Three input level switches
• Sturdy, compact design
The Tech Spec
| Features | Specification | Type | Active |
|---|---|
| Input Connections | 1 x 1/4" TRS phone |
| Output Connectors | 1 x XLR 2 x 1/4" TS phone |
| Input Level | +45 dBu @ 1kHz, 390Vp-p |
| Output Level | +8dBu - balanced 600Ω load, unbalanced: 50kΩ |
| Controls | Ground lift Phase reverse Three position attenuation switch |
| Frequency Response | 20Hz to 40kHz, +0.5/-1.0dB |
| Power | 9V battery or +48VDC phantom power |
| Dimensions (WxDxH) | 3-13/16 x 4-15/16 x 1-13/16" (97 x 125 x 46 mm) |
| Weight | 1.06 lbs (0.5 kg) |
