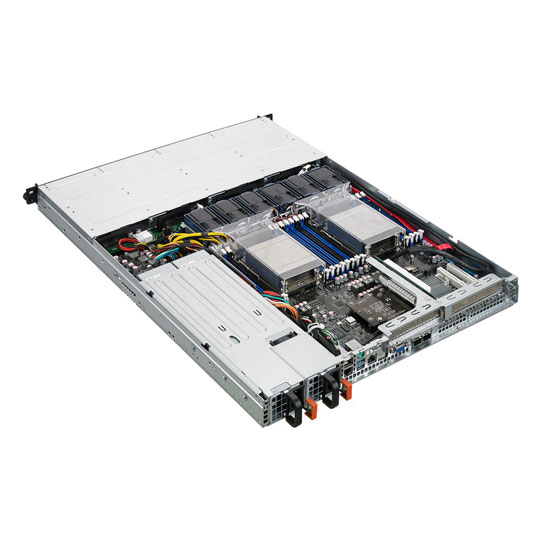

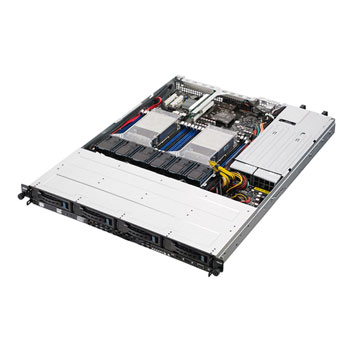

ASUS RS500-E8-RS4 V2 Open Box Server for Intel Xeon E5-2600 v3 product family (145W)
Refurbished
ASUS RS500-E8-RS4 V2 Open Box Server for Intel Xeon E5-2600 v3 product family (145W)
Scan code: LN146259 Manufacturer code: 90SV03TA-M04CE0
£359.99
Add To Basket
Get it Tomorrow, 14 OctIn stock
  • Thumbnail 1 : ASUS RS500-E8-RS4 V2 Open Box Server for Intel Xeon E5-2600 v3 product family (145W)
  • Thumbnail 2 : ASUS RS500-E8-RS4 V2 Open Box Server for Intel Xeon E5-2600 v3 product family (145W)
  • Thumbnail 3 : ASUS RS500-E8-RS4 V2 Open Box Server for Intel Xeon E5-2600 v3 product family (145W)
  • Thumbnail 4 : ASUS RS500-E8-RS4 V2 Open Box Server for Intel Xeon E5-2600 v3 product family (145W)
Refurbished

ASUS RS500-E8-RS4 V2 Open Box Server for Intel Xeon E5-2600 v3 product family (145W)

Open Box ASUS RS500-E8-RS4 V2, Intel C612 PCH, S2011-3 x2, DDR4 RDIMM / LRDIMM, 4x 3.5" SATA HDD Drive Bays, 1u
MORE INFO
MORE INFO

Scan code: LN146259 Manufacturer code: 90SV03TA-M04CE0
£359.99
Order now and get it tomorrow, Mon 14th Oct
Add To Basket
Get it Tomorrow, 14 OctIn stock
  • By DPD On 14th Oct Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £17.58 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £32.62
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £359.99
    Total inc. interest: £391.35
    Monthly Payment: £17.58
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £359.99
    Total inc. interest: £421.86
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £9.57 / month (APR 19.9%)
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

RS500-E8-RS4 V2

RS500-E8-RS4 V2 internal layout is optimised for rack-mounted configurations, with optimised fan speed control and an adjustable-fan-curve feature. Advanced air-ducting technology allows RS500-E8-RS4 V2 to work at high operating temperature and with an 80 PLUS® Platinum power-supply unit (PSU) up to94% VR efficiency!

Features

ASUS PIKE II & 12G SAS Integration
ASUS PIKE II offers the latest 12Gb/s SAS together with PCI-E 3.0 solution. While ASUS latest 12Gb/s SAS doubles the data rate running at twice the speed of the previous generation, PCI-E 3.0 offers high reliability and faster speed connection. ASUS PIKE II meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID data protection. Just placing the PIKE II card can immediately enlarge the capacity, improve the performance, and strengthen the signaling, making it the great upgrade option. Additionally, multiple HBAs allow multi-paths which improve over performance.

2+1 expansion
RS500-E8-RS4 V2 has high expandability with 2+1 expansion slots in a configuration: that means one PCI-E Gen3x 16 slot, one PCI-E Gen3x 8 slot, plus one PCI-E Gen3x 8 slot OCP Mezzanine card. This flexible expansion offers diverse applications in storage and networking to meeting the demands of future expansion.

Premium components for premium efficiency
RS500-E8-RS4 V2 benefits from premium components hand-chosen and carefully arranged by ASUS engineers to provide premium efficiency. With ASUS Beat Thermal Chokes, Dr. MOS and 1+1 Redundant 770W 80PLUS Platinum Power Supply, it delivers great durability and up to 94% power efficiency. The 1+1 Redundant 770W 80PLUS Platinum Power Supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation. RS500-E8-RS4 V2 has durable 12k solid capacitors that are able to withstand up to 12,000 hours of high ambient temperatures. These 12K capacitors also boast lower equivalent series resistance (ESR) for increased efficiency and minimal heat generation.

Instant Deployment
RS500-E8-RS4 V2 includes a front-side VGA port, so you’re able to connect a display quickly and easily. RS500-E8-RS4 V2 also benefits from an exclusive tool-less rail kit design, easing deployment for systems administrators for increased efficiency.
The server also carries an asset tag for fast identification. RS500-E8-RS4 V2 also offers great freedom when it comes to the choice of operating system drive type and placement, with both M.2 slot for independent OS available.

Easy Diagnostic and Management
RS500-E8-RS4 V2 has a built-in Q-Code/port 80 LED display LED for simple monitoring of the entire boot process, from the early hardware-awakening stages to the launch of the operating system and beyond. A bright CPU and Memory LED on board lets you check the server’s status instantly. With the Intelligent Platform Management Interface (IPMI) 2.0-compliant ASMB8-iKVM module in RS500-E8-RS4 V2, you’ll be able to monitor, control and manage the server remotely.
Specifications
Edition
Form Factor 1U
CPU Included No
CPU Type Intel Xeon
CPU Model E5-2600 v3 product family (145W)
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
TDP
CPU Socket 2011-3 x2
Chipset Intel C612 PCH
Motherboard Form Factor
Motherboard Model
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels
Memory Type (ECC)
Memory Type (R/U) RDIMM / LRDIMM
Memory Speed (Mhz)
  • DDR4 - 1333
  • DDR4 - 1600
  • DDR4 - 1866
  • DDR4 - 2133
Max. Memory Capacity 1024GB (16x64GB)
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 2 x PCIe x16 (Gen3 x8 Link), FH, HL
  • 1 x PCIe x8 (Gen3 x8 link), OCP Mezzanine
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive DVD±RW
Drive Bays 4 x 3.5" SATA Hot-swap
Backplane I/O
RAID Support SATA
Internal I/O
  • 1 x M.2
  • 9 x SATA III - 6Gb/s
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x D-Sub
  • 2 x USB 2.0

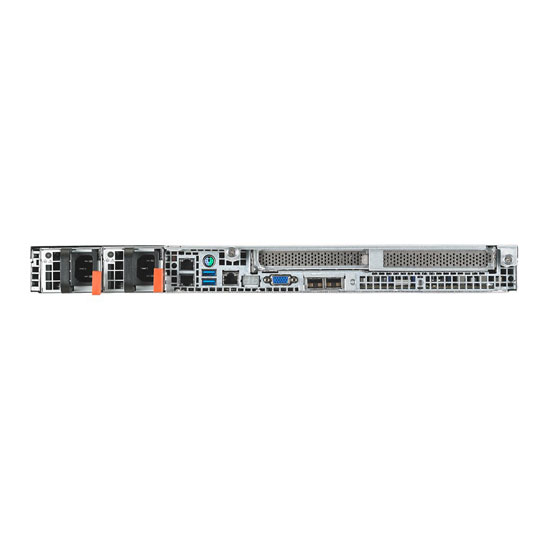

Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x Management LAN
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 3.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 615 x 444 x 44mm (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN146259
Model Number 90SV03TA-M04CE0
GTIN 4712900631036
