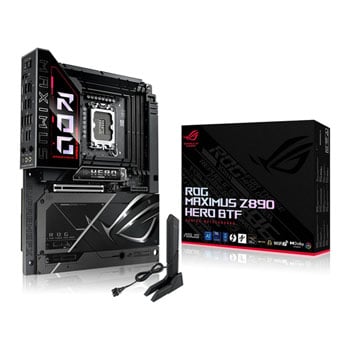

Open Box ASUS ROG MAXIMUS Z890 HERO BTF DDR5 PCIE 5.0 ATX Motherboard

ROG Maximus Z890 HERO BTF

The ROG Maximus Z890 Hero BTF features hidden connectors for motherboard power, graphics card power, USB ports and fan cables, enabling an ultra-clean build for your Intel® Core™ Ultra (Series 2) rig. Like the standard Z890 Hero, it also boasts ASUS-exclusive AI-enhanced tuning, DIY-friendly innovations, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology that enables advanced memory overclocking headroom and stability. Meanwhile, Polymo Lighting II elevates your overall system aesthetic

Advanced BTF Design

With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.

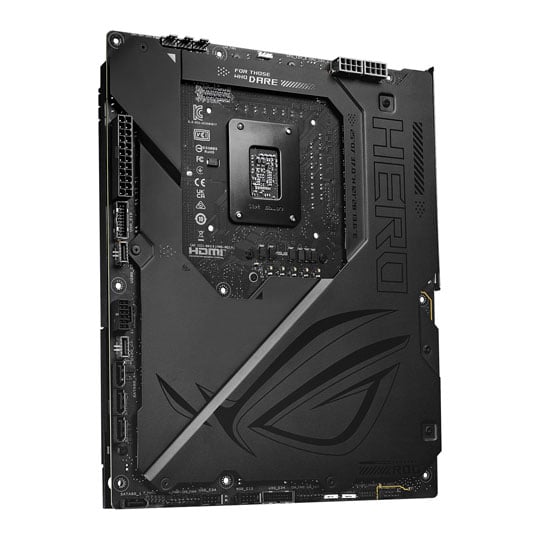

Hidden Connector Design

The hidden-connector design can be ideal for first-time builders, because it provides easier cable management. The absence of visible cables also creates a clean and tidy look that would normally require an expert.

Graphics Card High-Power Slot

The graphics card high-power slot stands ready to supply all the wattage that a BTF graphics card needs. This special design can deliver up to 600 watts through the motherboard itself, eliminating the need for visible 8-pin or 16-pin power cables on the front.

Exclusive AI Technologies

ASUS AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

Traffic Monitor
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.

Fast Check
Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength?

Direction Finder
Armoury Crate's Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.

Game First
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions.

AI overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

DDR5 - From Strength to Strength

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 9 GT/s mark on the ROG Maximus Z890 Hero BTF, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

DIMM FIT
DIMM Fit offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

Nitropath DRAM Technology
NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

ROG Ultimate Power Solution

8 + 8-pin ProCool II power connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.

22+1+2+2 Power Stages
The VRM features 22(110A)+1(90A)+2(90A)+2(80A) power stages.

10K black metallic capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

MicroFine Alloy Chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

Cooler By Design

VRM and Aluminium I/O heatsink
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

High Conductivity Thermal Pads
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

M.2 heatsinks and backplates
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four of six onboard M.2 slots have dedicated backplates for additional heat dissipation.

Chipset heatsink
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

M.2 Slots with ROG M.2 Powerboost

Six Onboard M.2 Slots
The ROG Maximus Z890 Hero BTF features six onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces.

ROG M.2 Powerboost
ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, enabling all M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD.

PCIe 5.0 Peformance

The primary x16 expansion slot offers PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, it is also protected with a SafeSlot retention bracket which can be released easily, thanks to PCIe Slot Q-Release Slim.

Impeccable Networking Coverage

WiFi 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gbps Ethernet.

2.5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5Gbps Ethernet.

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• Hidden-Connector Design: Delivers an unprecedented level of cable management to PC DIY enthusiasts
• Graphics Card High-Power Slot: Compatible with the graphics card high-power gold finger on the ASUS BTF graphics card, delivering up to 600 watts through the motherboard
• Exclusive AI Technologies: ASUS AI Advisor, AI Overclocking, AI Cooling II and AI Networking II to simplify setup and improve performance
• Advanced Overclocking & Memory Technologies: NPU Boost, NitroPath DRAM Technology, DIMM Fit, DIMM Flex and AEMP III
• Robust Power Solution: 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimised Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
• Latest M.2 Support: Three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, all with substantial cooling solutions

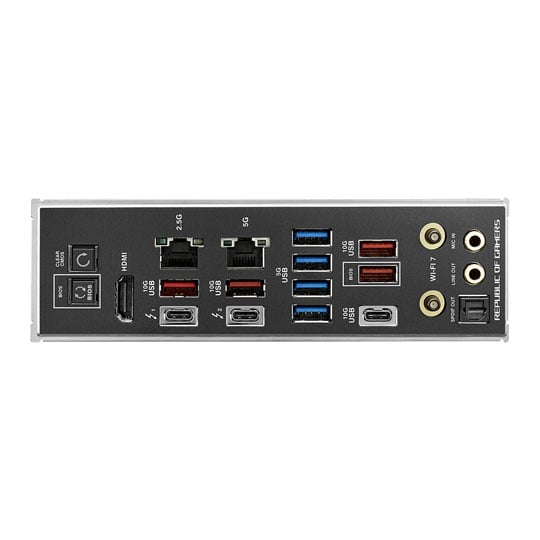

• Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps Type-C front-panel connector, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics cards, HDMI™ 2.1
• High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet
• DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9219 Quad DAC for up to 32-Bit/384 kHz playback
• Unmatched Personalization: I/O cover with Polymo Lighting II, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
• Renowned Software: ASUS DriverHub, Dolby Atmos®, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO, and bundled 1-year AIDA64 Extreme subscription
