Refurbished
Scan code: LN135848 Manufacturer code: 90DC00G0-B39000

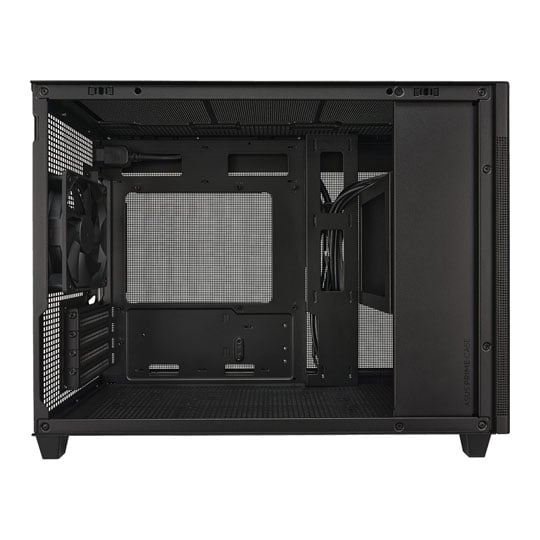

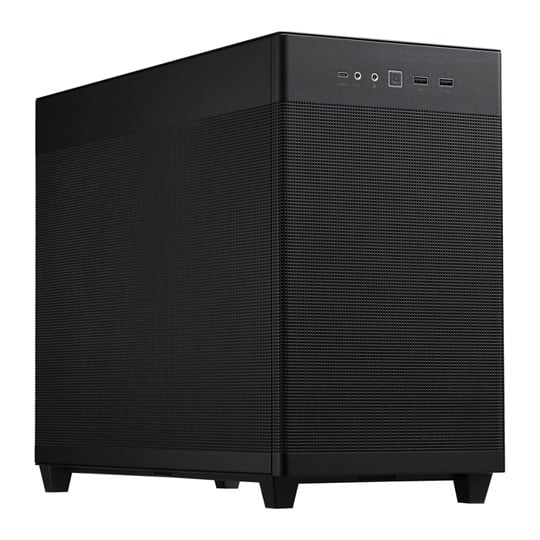

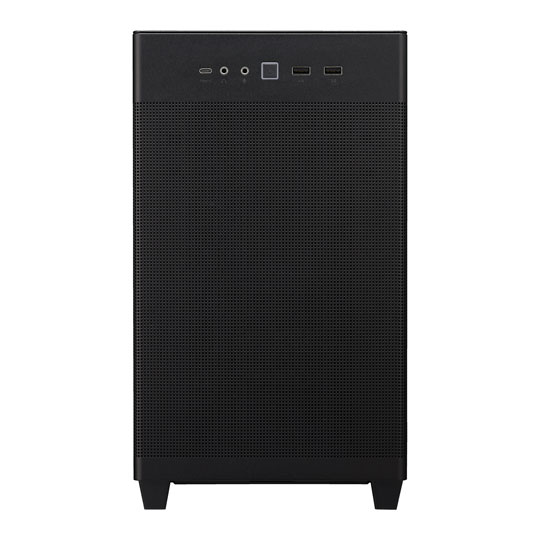

ASUS Prime AP201 Micro-ATX Open Box PC Case Black

Open Box ASUS Prime AP201 Chassis, Black, Mesh, 120mm Fan, USB 3.2 Gen 2 Type-C, Supports 360mm Radiators, mATX/mITX

Thumbnail 1 : ASUS Prime AP201 Micro-ATX Open Box PC Case Black Thumbnail 2 : ASUS Prime AP201 Micro-ATX Open Box PC Case Black Thumbnail 3 : ASUS Prime AP201 Micro-ATX Open Box PC Case Black Thumbnail 4 : ASUS Prime AP201 Micro-ATX Open Box PC Case Black
Scan code: LN135848 Manufacturer code: 90DC00G0-B39000
£79.99Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Go Big. Stay Compact

The ASUS Prime AP201 is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centrepiece of any DIY PC build.


Breathe Freely

The AP201 mesh design is comprised of over 57,000 precision-machined 1.5mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build.


Stay Chilled

With support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.


Specs, Not Specks

The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.


Load Up

Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.


Unrestricted Access

Instead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.


Tidy As You Like

The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.


Nimble Connections

In addition to two Type-A USB 3.2 Gen 1 ports, the front panel of the AP201 also features a Type-C port that is rated for USB 3.2 Gen 2.

Features


Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.
Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

Specifications
Core Chassis Specifications
Case Edition Prime AP201
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 1 x 2.5" Internal
  • 3 x 2.5"/ 3.5" Internal
Standard Expansion Slots 4
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 4 x 120mm
  • 2 x 140mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters Bottom
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 170 mm
Max GPU Card Length 338 mm
Cable Routing Space 32 mm
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 140-180 mm mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials
Dimensions 205 x 350 x 460 mm (WxHxD mm)
Weight 5.8 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN135848
Model Number 90DC00G0-B39000
GTIN 4711081771821
