Novation Zero SL MkII Controller
Scan code: LN38132
Manufacturer code: REMOTEZEROSLMKII
End Of Life

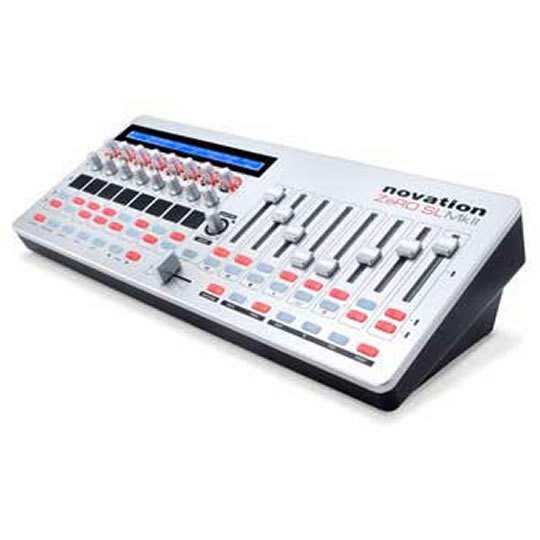

Novation Zero SL MkII Controller
Novation ZERO SL MKII USB DAW Controller With Automap Plugin Control.
Scan code:
LN38132
Manufacturer code:
REMOTEZEROSLMKII
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
ZeRO SL Mk II has been designed to give you complete control over your music making software. We have worked with each of the main DAW manufacturers to make sure each of the 56 knobs, faders and buttons control the things in your software that you need them to control. However, the really clever bit is that SL MkII can directly control your plug-in instruments and FX. The control surface is almost identical to the SL MkII keyboards, but it has longer throw faders (60mm) and a central crossfader. Being bus powered, it is already a firm favourite with performers.
Features
Specifications
Physical controls
Assignable controls:
• 8 Encoders (Infinite Rotation) with touch-sensitivity and 11 segment Led rings
• 8 Pots (270 Rotation) with touch-sensitivity
• 8 60mm Sliders with touch-sensitivity
• 32 Buttons with integrated LEDs (37 in MIDI mode]
• 8 soft feel Trigger pads
• Touch sensitive Speed Dial (as on Nocturn)
• Crossfader
System buttons:
• General Automap Operation Buttons (Learn, View, Browser Groups etc.)
• Octave up/down buttons with LED indicator
The central system buttons from the SL have been simplified; there is now:
• 1 Automap button with LED to toggle Automap mode on and off (this replaces the PLAY button) – this way, manual MIDI mode is separate from Automap mode and can be avoided completely if preferred
• Template and Edit modes have been combined into one edit mode, for editing both individual controls and overall settings within one Template
Connectivity
Rear Panel connections are as follows:
• Data Port: 1 x USB (Win XP/Vista and Mac OSX – Not Class Compliant
• MIDI: MIDI ONE: IN, OUT and Thru, MIDI TWO: OUT
• Sustain Pedal: 1 x 1/4 Jack Input
• Expression pedal: 1 x 1/4 Jack Input
• Power switch: Ext DC/USB
Minimum Operational Requirements:
• Mac OSX 10.4.0 or greater (Leopard and Snow Leopard (32-bit kernel only) also supported) or Windows XP with
• Service Pack 2 or greater (Vista 32/64 and Windows 7 32/64 also supported)
• Minimum Computer spec: Mac - G4/1GHz, both with 256MB RAM or PC -
• Pentium 3/1GHz/256MB RAM (machines running Vista will require a higher spec)
• Dimensions: 445x 68 x 200 mm
