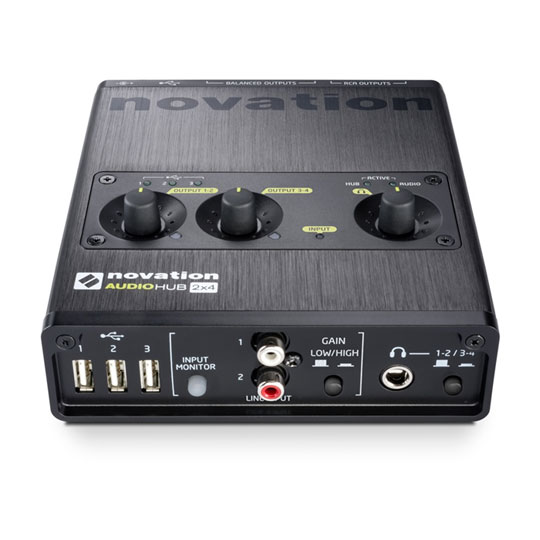

Novation Audiohub 2x4 Audio Interface

Novation Audiohub - USB 2, 96 kHz, 24 Bit , 2 / 4 Analogue I/O, USB Hub

Novation
Scan code: LN59850 Manufacturer code: NOVHUB01 Request call
£134.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Free Delivery Delivery options Free By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Your Ultimate Electronic Music Production Hub

Audiohub 2x4 is a combined audio interface and USB hub for electronic music production with Focusrite sound quality. It lets you connect and power all your USB gear at once, while getting ultra-low latency audio and super loud output.

Declutter Your Setup

Sick of having USB hubs, interfaces, cables and power supplies cluttering up your studio desk space? Us too. That's why we designed a single unit that does it all. Just connect all your USB and audio gear to Audiohub 2x4:

• Three USB 2.0 ports for bus-powering your whole setup
• Matched stereo inputs for sampling pristine audio
• Four line RCAs or two balanced jack outputs with super high quality sound

Focusrite Sound Inside

This isn't just a USB hub; it's a powerful audio interface too. We partnered with Focusrite, who make the best sounding audio interfaces in the world, to make sure Audiohub 2x4 gives you extraordinary quality 96 kHz, 24-bit audio performance. This allows you to sample and capture pristine quality audio and listen back with zero latency at the click of a button.

Perfect for Live Performance

Connect your main speakers and cue sub to high quality balanced and unbalanced outputs, with totally independent level control. The headphone output is also ludicrously loud, which is essential. We put all the volume and status controls on the top, to make them easy to access in the darkest environments, then housed the whole thing in a rock solid metal case.

Beat Making and Sampling with NI Maschine

Sample pristine audio through matched stereo inputs and Focusrite audio conversion, then play it back with the same exceptional quality audio, ultra-low latency and super-loud outputs. Do it all whilst bus-powering all your USB gear, so you don't have the usual cable and power supply clutter.

Condense Your DJ Rig

Leave the complexity at home. Connect all your DJ equipment to a single rock solid unit, with blisteringly loud speaker and headphone outputs, and independent level controls helpfully placed on the top. It's so much simpler.

Produce and Perform Electronic Music

Connect and power all your Novation USB and MIDI gear using a single unit. Audiohub 2x4 will blast your music out as loud as you like, while capturing your synth performances with exceptional Focusrite-quality audio, and playing them back with zero latency.

Simplify Your Mobile Rig

Connecting to iPad is a nuisance. Luckily, you can plug all your USB and audio gear into Audiohub 2x4, then connect that to your iPad using a single camera connection kit. Simply play your music in and output it live, all while powering your gear without draining your iPad battery as quickly. Features Declutter Your Setup
It can take a lot of gear to make a great tune. That's why we put three integrated USB 2.0 ports into Audiohub 2x4, so you can connect your keyboard controller, NI Maschine, Novation Launchpad or any other USB gear to your computer at the same time. You can even connect it all to your iPad, if you have a camera connection kit.

Focusrite Sound Inside
We've partnered with legendary audio equipment manufacturer, Focusrite, to raise your sound quality with exceptional 96 kHz, 24-bit audio performance. Sample pristine audio in - get pristine audio out, no matter how loud you go.

It's Super Loud
Live music needs to be loud and no performer appreciates quiet headphones. We've made sure every output is blisteringly loud: the four RCAs, the two balanced jacks and the headphone outputs. Everything is super loud.

Capture Balanced Audio
Premium matched stereo RCA inputs mean you can capture pristine stereo sound and synth recordings, at perfectly matched levels.

Ultra-Low Latency for Live Performance
The ultra-low latency performance is essential for playing out live using input signals, such as synths. Of course, you can always hit a button for direct, latency-free monitoring.

Connect To Just About Anything
Simply plug and play on Mac and iOS. Dedicated low latency drivers for PC are supplied with simple, rock solid reliability.

Make Music Out of the Box
Comes with Ableton Live Lite, the music production software of choice for countless leading artists, as well as an impressive collection of production-ready samples from the highly-esteemed Loopmasters.

Rock Solid
We designed this for the gigging electronic music producer. It's compact, reliable and housed in a tough aluminium case. This is as rugged as interfaces get!


Technical Specification

Rear Panel
• 2 TRS Balanced jack outputs
• 4 Unbalanced RCA outputs
• USB type B socket for connection to computer
• Power jack for included power supply
• Kensington security slot

Front Panel
• 2 RCA Line Inputs with selectable gain switch
• Input Monitor switch
• Headphone socket with output select switch
• 3 USB type A sockets for connecting USB devices to the hub

Top Panel
• 2 Volume controls for outputs 1&2 and 3&4
• Signal/clip LEDs for outputs 1&2 and 3&4
• Input signal/clip LED
• Headphone volume control
• LEDs to indicate USB ports in use
• LEDs to indicate Audio interface and USB hub function

Supported Operating Systems:
• Mac OS X 10.9 Mavericks, Mac OS X 10.8 Mountain Lion (class compliant)
• Window 8.1, Windows 8, Windows 7 (ASIO drivers included)
• iOS 7, 6 (class compliant)

Product Power Requirements
• Audiohub 2x4 requires the included power supply in most cases, however USB bus powering is possible
• The included power supply is required for USB hub operation
• We also strongly advise the use of the included power supply for optimal performance with audio streaming and output level operation

Includes:
• Audiohub 2x4
• 1.5m USB cable
• A5 Quick start Guide
• Registration card
• Power Supply Unit
• Ableton Live Lite 9 Software
• 1 GB of Loopmasters samples
Specifications
Specifications
Computer Interface Type USB 2
Analogue Inputs (Total) 2
Analogue Outputs (Total) 4
Connections (Input)
  • 2 x RCA Phono
  • 1 x USB
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 96 kHz
Bit Resolution 24
iPad Compatible No
Dynamic Range 108 dB
Connections (Output)
  • 2 x 6.35mm (1/4") Jack
  • 1 x Headphone (TRS 6.35mm Jack)
  • 4 x RCA Phono
  • 3 x USB
Dimensions (mm) 134 x 51 x 150 WxHxD
DSP Processing No
