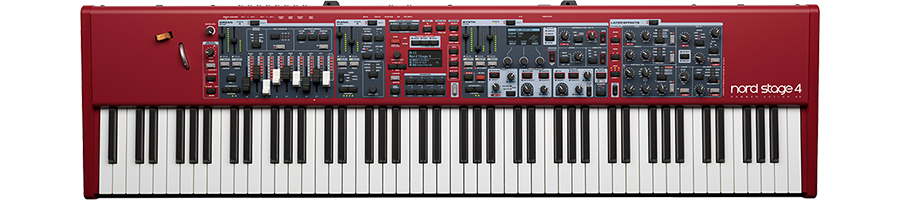

Nord Stage 4 88 Digital Stage Piano
Nord - Stage 4 88, 88-Key Digital Stage Piano with Nord Wave 2 Synth Engine
88-Key Digital Stage Piano
Nord - Stage 4 88
88-note fully weighted Triple Sensor keybedThe Nord Stage 4 comes with a brand new panel design with dedicated LED faders for each Layer, giving you exceptional overview and flexibility when creating sounds and performing live. The new Preset Library is filled with inspiring ready-to-use Piano, Synth and Organ sounds for quick and simple patch creation.
The Layer Scene allows you to seamlessly switch between two different sound setups at the touch of a button. Adding a powerful new Effect section together with versatile pedal options and a premium Triple Sensor keybed, the Nord Stage 4 offers a new level of musical expression.
Amazing Features
• Enhanced collection of pianos: uprights, grands, EPs and more
• Nord Wave 2 synth engine with 3 independent synth layers
• Award-winning organ simulations of B3, Vox/Farfisa and Pipe Organ models
• Dedicated Effect section per Layer
The Piano Section
An enhanced collectionThe Nord Stage 4 features a new enhanced collection of Grands, Uprights and Electric Pianos from our exclusive Nord Piano Library combined with new features such as Dynamic compression and Unison.
Nord’s state-of-the-art sampling techniques capture the extraordinary details and real character of the source instruments. The unique ‘Advanced String Resonance’ and Dynamic Pedal Noise features deliver breathtaking realism and an unsurpassed level of expressiveness.
The Synth Section
Nord Wave 2 Synth EngineThe Synth section includes three independent Layers based on the powerful Nord Wave 2 Synth Engine, including Virtual Analog synthesis, Samples, FM and Wavetable.
An extensive new collection of samples from the Nord Sample Library offers a broad sonic palette of Strings, Bass, Choirs, Guitars and much more. The advanced Arpeggiator features new Polyphonic, Gate and Pattern modes and can be used for a huge range of rhythmic applications with customizable patterns.
The Organ Section
Award-winning organ simulationsThe Organ section features Nord's award-winning simulations of B3 Tonewheel, B3 Bass, classic Vox and Farfisa as well as two Pipe Organ models.
All Stage 4 models are equipped with our new Physical drawbars with LED indicators for ultimate hands-on experience and overview.
The Effects Section
Dedicated Effect section per LayerThe Nord Stage 4 has a powerful new Effect section offering a complete setup of Effects for each Layer.
The extensive range of Effects includes a new Pump effect for side chain simulation, a new Spin effect and brand new variations of Reverb, Delay, Amps and Modulation effects.
The Tech Spec
| Features | Specification | Piano Section | 2 GB memory for Piano sounds All sounds can be replaced using Nord Sound Manager (Mac/Win) 120 Voice Polyphony Categories: Grand, Upright, Electric, Clav/Harpsichord, Digital/Layer and Misc (Mallet instruments) 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light) Piano Timbre controls with custom settings for Electric Pianos and Clavinet String Resonance for acoustic Grand Pianos and Uprights Selectable Soft Piano Release Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos Dynamic Compression Unison functionality 2 Layers (2-Part Multitimbral) |
|---|---|
| Synth Section | Nord Wave 2 Synth Engine with Sample Playback Dedicated OLED Display for Waveform/Sample selection and parameter editing 1 GB Memory for Nord Sample Library All samples can be replaced using Nord Sound Manager (Mac/Win) 46 Voice polyphony Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise) Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter Filter Drive: Off, 1, 2 and 3 Filter Tracking: Off, 1/3, 2/3 and Full 3 Unison modes Vibrato modes controllable from Mod Wheel, Aftertouch and pedal Filter envelope (Attack, Decay/Sustain, Release) with Velocity control Amplitude envelope (Attack, Decay/Sustain, Release) with Velocity control Oscillator envelope (Attack, Decay/Sustain, Release) with Velocity control LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold Advanced Arpeggiator with Arp, Polyphonic and Gate modes Arpeggiator Patterns for all modes, with Accent and Pan options LFO and Arpeggiator synchronizable to Master Clock 3 Layers (3-Part Multitimbral) |
| Effects | Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode 3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls Tube amp simulation with adjustable overdrive 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive Effect rates/tempo can be synchronized to the Master Clock Compressor with Fast Mode Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options |
| Keyboard | 88-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: A-C |
| Connections | 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced Stereo Headphone output - ¼", 6,35 mm stereo jack 1 Monitor input - 1/8", 3,5 mm stereo jack Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2 Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack Control Pedal - ¼", 6,35 mm TRS stereo jack Foot Switch input - ¼", 6,35 mm jack. Use a momentary two-button pedal or a single switch type pedal MIDI In - 5 pin DIN connectors MIDI Out - 5 pin DIN connectors USB - type B connector for USB MIDI, Software Update and Sound Transfer Power Cord with IEC C14 connector |
| Included Accessories | User Manual Power cord USB cord Nord Sustain Pedal 1 |
| Dimensions | 1282 mm (50.5"), 121 mm (4.7"), 349 mm (13.7") |
| Weight | 19.6 kg (43.2 lb) |
