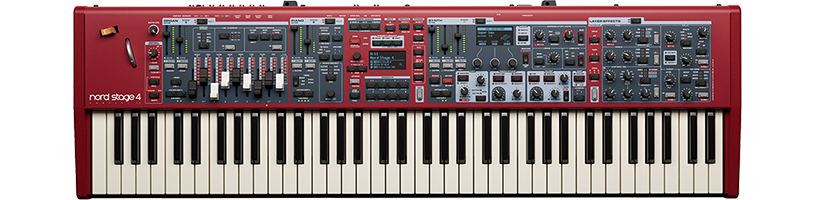

Nord Stage 4 73 Digital Stage Piano
Nord - Stage 4 73 Digital Stage Piano, 73-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: E-E
Digital Stage Piano
Nord - Stage 4 73
73-note fully weighted Triple Sensor keybedThe Nord Stage 4 sets a new standard with an updated intuitive panel design, a premium triple sensor keybed, complete effect sections for each layer and massive enhancements to award-winning technologies. Featuring a brand new panel design with dedicated LED faders for each Layer, you get exceptional overview and flexibility when creating sounds and performing live.
The new Preset Library is full with inspiring ready-to-use Piano, Synth and Organ sounds for quick and smooth patch creation. The Layer Scene allows you to seamlessly switch between two different sound setups at the touch of a button. Adding a powerful new Effect section together with versatile pedal options and a premium Triple Sensor keybed, the Nord Stage 4 gives you a new level of musical expression.
At a glance
• Enhanced collection of Uprights, Grands, EPs and more
• New Variations for Modulation, Amp, Delay and Reverb Effects
• Nord Wave 2 Synth Engine with 3 independent Synth Layers
• Award-winning organ simulations
• Dedicated Effect section per Layer

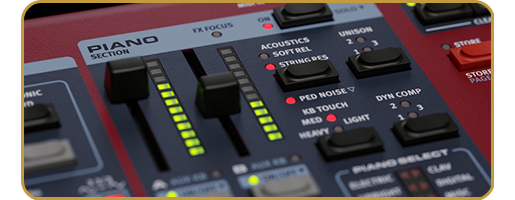

The Piano
Enhanced collection of soundsThe Nord Stage 4 includes a new enhanced collection of Grands, Uprights and Electric Pianos from Nord's exclusive Nord Piano Library, together with new features such as Dynamic compression and Unison. Nord’s state-of-the-art sampling techniques capture the extraordinary details and real character of the source instruments. The unique ‘Advanced String Resonance’ and Dynamic Pedal Noise features deliver stunning realism and an unsurpassed level of expressiveness.

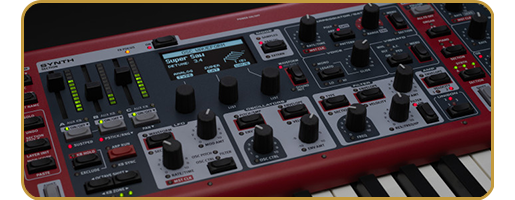

The Synth
Nord Wave 2 Synth EngineThe Synth section has three independent Layers and is based on the powerful Nord Wave 2 Synth Engine, including Virtual Analogue synthesis, Samples, FM and Wavetable. An extensive new collection of samples from the Nord Sample Library offers a broad sonic range of Strings, Bass, Choirs, Guitars and much more. The advanced Arpeggiator features new Polyphonic, Gate and Pattern modes and can be used for a huge variety of rhythmic applications with customizable patterns.

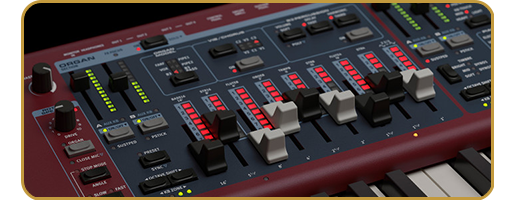

The Organ
Award-winning organ simulationsThe Organ section features Nord's award-winning simulations of B3 Tonewheel, B3 Bass, classic Vox and Farfisa as well as two Pipe Organ models. All Stage 4 models are equipped with new Physical drawbars with LED indicators for optimal hands-on experience and overview.

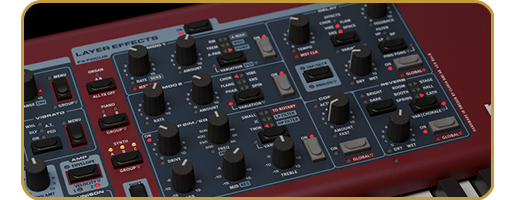

The Effects
New VariationsThe Nord Stage 4 has a powerful new Effect section offering a complete setup of Effects for each Layer. The extensive range of Effects includes a new Pump effect for side chain simulation, a new Spin effect and brand new variations of Reverb, Delay, Amps and Modulation effects.
The Tech Spec
| Features | Specification | General | Master Level Control Wooden Pitch Stick Modulation Wheel 512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations 8 Live Programs 2 Individual Layer Scene Setups 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch Stereo and Mono output routing options Programmable Transpose +/- 6 semitones Master Clock functionality with manual, external and tap-tempo rate control Internal and MIDI clock source MIDI over USB functionality Level control Aftertouch Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones 3 Split Point width (crossfade) options: Lrg, Sml or Off |
|---|---|
| Organ Section | Nord C2D B3 Tone wheel Organ simulation Vox Continental and Farfisa models 2 Digital Pipe Organ models B3 Bass mode Physical Drawbars with LED graphs Preset or Drawbar Live mode Percussion controls Vibrato / Chorus control 2 Layers (2-Part Multitimbral) |
| Piano Section | 2 GB memory for Piano sounds All sounds can be replaced using Nord Sound Manager (Mac/Win) 120 Voice Polyphony Categories: Grand, Upright, Electric, Clav/Harpsichord, Digital/Layer and Misc (Mallet instruments) 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light) Piano Timbre controls with custom settings for Electric Pianos and Clavinet String Resonance for acoustic Grand Pianos and Uprights Selectable Soft Piano Release Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos Dynamic Compression Unison functionality 2 Layers (2-Part Multitimbral) |
| Synth Section | Nord Wave 2 Synth Engine with Sample Playback Dedicated OLED Display for Waveform/Sample selection and parameter editing 1 GB Memory for Nord Sample Library All samples can be replaced using Nord Sound Manager (Mac/Win) 46 Voice polyphony Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise) Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter Filter Drive: Off, 1, 2 and 3 Filter Tracking: Off, 1/3, 2/3 and Full 3 Unison modes Vibrato modes controllable from Mod Wheel, Aftertouch and pedal Filter envelope (Attack, Decay/Sustain, Release) with Velocity control Amplitude envelope (Attack, Decay/Sustain, Release) with Velocity control Oscillator envelope (Attack, Decay/Sustain, Release) with Velocity control LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold Advanced Arpeggiator with Arp, Polyphonic and Gate modes Arpeggiator Patterns for all modes, with Accent and Pan options LFO and Arpeggiator synchronizable to Master Clock 3 Layers (3-Part Multitimbral) |
| Effects | Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode 3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls Tube amp simulation with adjustable overdrive 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive Effect rates/tempo can be synchronized to the Master Clock Compressor with Fast Mode Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options |
| Keyboard | 73-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: E-E |
| Connections | 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced Stereo Headphone output - ¼", 6,35 mm stereo jack 1 Monitor input - 1/8", 3,5 mm stereo jack Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2 Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack Control Pedal - ¼", 6,35 mm TRS stereo jack Foot Switch input - ¼", 6,35 mm jack. Use a momentary two-button pedal or a single switch type pedal MIDI In - 5 pin DIN connectors MIDI Out - 5 pin DIN connectors USB - type B connector for USB MIDI, Software Update and Sound Transfer Power Cord with IEC C14 connector |
| Included Accessories | User Manual Power cord USB cord Nord Sustain Pedal 1 (88 and 73 only) |
| Dimensions | 1069 mm (42"), 121 mm (4.7"), 349 mm (13.7") |
| Weight | 16.7 kg 36.8 lb |
