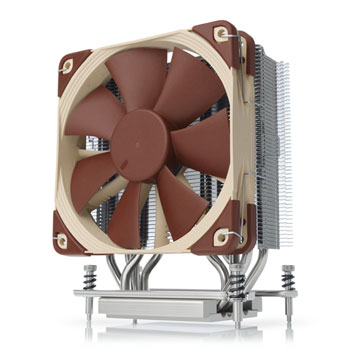

Noctua AMD Threadripper NH-U12S TR4 SP3 CPU Air Cooler

Noctua NH-U12S TR4-SP3 Compact Single Tower CPU Cooler, 5 Heatpipes, 120mm PWM Fan, for AMD Ryzen Threadripper/Epyc ONLY

Noctua
Scan code: LN83887 Manufacturer code: NH-U12S TR4-SP3 Request call
£74.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 21st Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Continuing the legacy of Noctua’s classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U12S has become a benchmark for slim, highly compatible 120mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket TR4/SP3. Topped off with the renowned quiet NF-F12 PWM 120mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12S TR4-SP3 forms a complete premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for high-end TR4/SP3 systems.

Please note that the NH-U12S TR4-SP3 is a dedicated version for the AMD TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits. Features Award-Winning NH-U12S Cooler
Tens of thousands of enthusiast users all over the world swear by the NH-U12S’ quality and performance. Recommended by more than 200 international hardware websites and magazines, it is renowned as being one of the best 120mm coolers on the market.

Tailored Custom Version for TR4/SP3 (Ryzen Threadripper / Epyc)

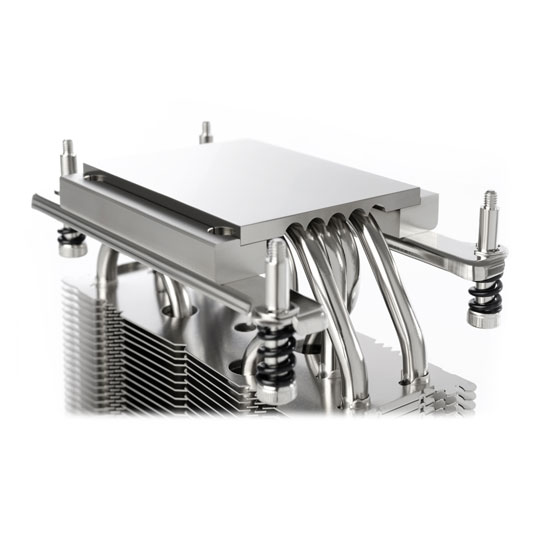

At 70x56mm, the copper contact surface of the TR4-SP3 version is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s TR4/SP3-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

120mm Size for Excellent Performance and Compatibility
With five heatpipes and the powerful NF-F12 120mm fan, the NH-U12S achieves outstanding cooling performance while maintaining excellent compatibility: At 158mm height and 125mm width, it is short enough to fit most modern tower cases and stays clear of the top PCIe slot on most motherboards.

NF-F12 120mm Focused Flow™ Fan
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua's premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.

PWM Support and Low-Noise Adaptor
The NF-F12 120mm fan supplied with the NH-U12S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Anti-Vibration Pads and Fan-Clips for Second NF-F12 (2nd Fan Optional, Not Included)
For users who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.

SecuFirm2™ Mounting System for TR4/SP3
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!

Offset Mounting Options for Better PCIe Clearance

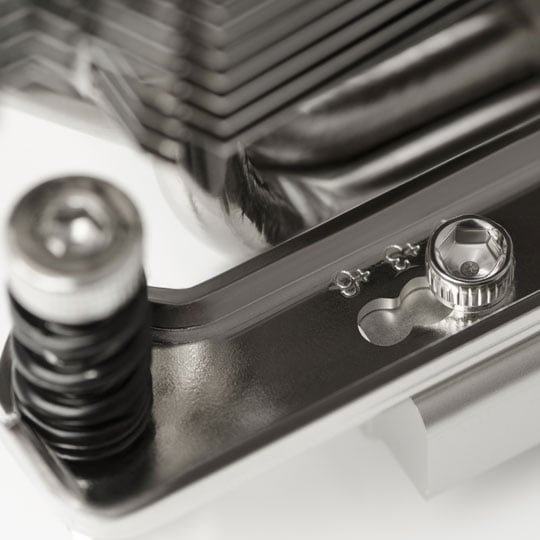

In order to assure optimal compatibility with SLI and CrossFire multi-GPU setups, the SecuFirm2™ mounting for TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot.

NT-H1 Thermal Compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.

6-Year Manufacturer’s Warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTTF rating of more than 150.000 hours and the entire NH-U12S package comes with a full 6-year manufacturer's warranty.
Specifications
Cooler Specifications
Edition NH-U12S TR4-SP3
Cooler Form Factor Compact Single Tower
Heatpipes 5
Cooler Features
  • Aluminium Fins
  • Copper Base
  • Nickel-Plated Coldplate
Socket Compatibility
  • SP3
  • TR4
Max. Recommended TDP
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration 1 x 120mm
Fan Edition Noctua NF-F12 PWM
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour Beige/Brown
LED Lighting Colour N/A
Fan Connectors 1 x 4-pin
Approx Fan Speed 300 - 1500 rpm
Adjustable Fan Speed Controller No
Fan Airflow
Air Pressure 2.61 mm H2O
Sound Level (dB) 22.4 dB
Sound Level (Sone)
Materials
Fan Material Plastic
Heatsink Material Aluminium / Nickel Plated / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Fan Dimensions 120 x 120 x 25 mm
Heatsink Dimensions 125 x 158 x 45 mm (WxHxD)
Total Dimensions 125 x 158 x 71 mm (WxHxD)
Weight 870 g
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
