Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler
Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler
Scan code: LN98040 Manufacturer code: NH-U12A
£109.99
Get it Tomorrow, 09 NovIn stock
  • Thumbnail 1 : Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler
  • Thumbnail 2 : Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler
  • Thumbnail 3 : Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler
  • Thumbnail 4 : Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler
  • Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler : video thumbnail 1
  • Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler : video thumbnail 2

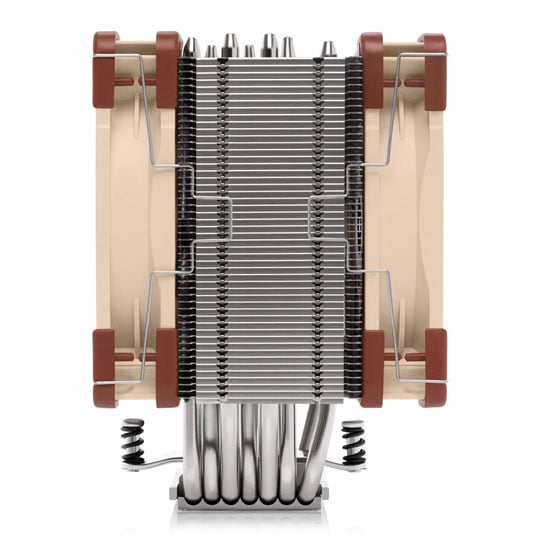

Noctua NH-U12A Premium Dual 120mm Fan Intel/AMD CPU Air Cooler

Noctua NH-U12A Asymmetric Single Tower CPU Cooler, 7 Heatpipes, 2x 120mm NF-A12x25 PWM Fans, Al/Nickel Cu, for Intel/AMD

Scan code: LN98040 Manufacturer code: NH-U12A
£109.99
£5.48 NEXT DAY DELIVERY
Order by 8:30 PM today and get it tomorrow (upgrade to Saturday delivery at checkout)
Get it Tomorrow, 09 NovIn stock
  • By DPD On 11th Nov Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £9.17 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £9.17
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £109.99
    Total inc. interest: £109.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

Product Overview The NH-U12A is the latest, 5th generation of Noctua’s award-winning NH-U12 series of 120mm size premium-quality quiet CPU coolers. Conceived to push the envelope of the 120mm form factor, it combines two of Noctua’s flagship model NF-A12x25 PWM 120mm fans with a completely redesigned heatsink featuring 7 heatpipes and an increased fin surface area for superior heat dissipation. This way, the NH-U12A can rival the performance of many 140mm size coolers while offering 120mm class case and PCIe compatibility. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12A is a deluxe choice that combines top-tier performance with excellent compatibility and outstanding quietness of operation.

Award-Winning NH-U12 Series
First introduced in 2005, Noctua’s NH-U12 series has won more than 600 awards and recommendations from leading international hardware websites and magazines. The NH-U12A is the latest addition to this prestigious series that has established itself as a benchmark for premium-quality quiet 120mm coolers.

140mm Performance In 120mm Size
Thanks to its completely revised, thoroughly optimised 7 heatpipe layout, 37% more fin surface area (as compared to the NH-U12S) and a dual fan push/pull configuration that uses the new, state-of-the-art NF-A12x25 fans, the NH-U12A pushes the performance envelope in the 120mm class and can actually match or even outperform many 140mm sized coolers.

100% RAM Compatibility On LGA115x & AM4
Due to its asymmetric design, the NH-U12A does not overhang the RAM slots on Intel LGA115x and AMD AM4 based motherboards, which ensures easy access to the modules and 100% compatibility with tall heat-spreaders. On LGA2066, the rear fan will overhang the RAM slots on the left-hand side of the socket, so RAM modules should not exceed 42mm in height.*
*In cases with more than 158mm CPU cooler clearance, the rear fan can be moved upwards to make room for memory modules taller than 42mm.

Classic 120mm Tower Size for Excellent Case & PCIe Compatibility
Standing 158mm tall, the NH-U12A is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.

Dual NF-A12 120mm Fans
The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. Using this elite-class fan in a push/pull dual fan configuration is one of the cornerstones of the NH-U12A’s commanding performance and acoustic efficiency.

PWM Support & Low-Noise Adaptors
The NF-A12 120mm fans supplied with the NH-U12A support PWM for convenient automatic speed control through the motherboard: Full performance under load, virtually silent at idle! In addition, maximum fan speed can be reduced from 2000 to 1700rpm using the supplied Low-Noise Adaptors for even quieter operation.

SecuFirm2™ Multi-Socket Mounting System
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1, the SecuFirm2™ mounting included with the NH-U12A is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.

Compatibility with Past & Future Sockets
Thanks to Noctua’s SecuFirm™ ecosystem, the NH-U12A can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-U12A a safe long-term investment.

NT-H1 Thermal Compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.

Soldered Interface Between Heatpipes & Fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-U12A’s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.

6-Year Manufacturer’s Warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U12A heatsink is built to last, and like all Noctua fans, the supplied NF-A12x25 units feature an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty. Features • 140mm class performance in 120mm size.
• Excellent case, RAM and PCIe compatibility.
• Quiet, state-of-the-art NF-A12x25 120mm fans.
• Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system.
• Renowned Noctua quality backed up by 6-year manufacturer's warranty.
• Compatible with Intel LGA1155/1156/2011/2066 and AMD FM1/FM2/AM3+/AM3/AM2+/AM2.
Specifications
Cooler Specifications
Edition NH-U12A
Cooler Form Factor Single Tower
Heatpipes 7
Cooler Features
  • Adjustable Height Fan
  • Aluminium Fins
  • Low-Noise Cable
  • Nickel-Plated Copper Base
  • Nickel-Plated Copper Heatpipes
  • Push-Pull Operation
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 2011
  • 2011-3
  • 2066
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. TDP
Fan Specifications
Included Fan Configuration 2 x 120mm
Fan Edition Noctua NF-A12x25 PWM
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour Beige/Brown
LED Lighting N/A
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 2000 rpm
Max. Fan Airflow 60 CFM
Max. Air Pressure 2.34 mm H²O
Max. Sound Level 22.6 dBA
Materials
Cooler Materials Aluminium / Nickel Plated / Copper
Included TIM (Thermal Interface Material) NT-H1 High-Grade Thermal Compound (Included)
Dimensions & Weight
Heatsink/Radiator Dimensions 125 x 158 x 58 mm (WxHxD)
Total Dimensions 125 x 158 x 112 mm (WxHxD)
Weight 1220 g
Additional Information
Scan Code LN98040
Model Number NH-U12A
GTIN 841501100161
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Noctua
