Scan code: LN80577 Manufacturer code: NH-L9x65 SE-AM4

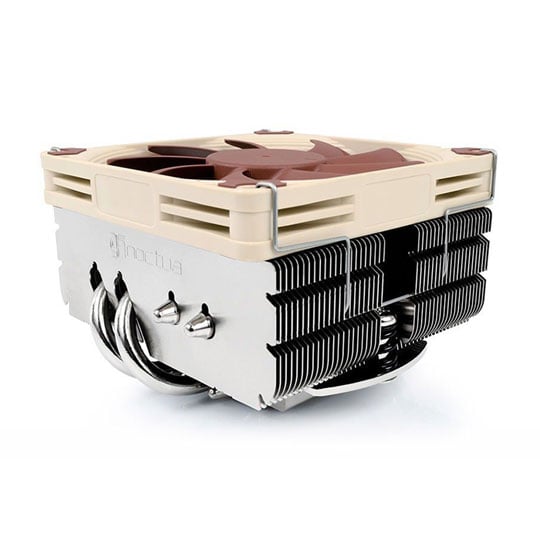

NH-L9x65 Noctua SE-AM4 Low Profile CPU Cooler

Noctua NH-L9x65 SE-AM4 AM4 Compact Quiet Low Profile CPU Cooler, 14.8 - 23.6dB, 600 - 2500rpm, 33.8CFM,

Thumbnail 1 : NH-L9x65 Noctua SE-AM4 Low Profile CPU Cooler Thumbnail 2 : NH-L9x65 Noctua SE-AM4 Low Profile CPU Cooler Thumbnail 3 : NH-L9x65 Noctua SE-AM4 Low Profile CPU Cooler
Scan code: LN80577 Manufacturer code: NH-L9x65 SE-AM4
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Award-Winning NH-L9x65 Cooler

Tens of thousands of enthusiast users all over the world swear by the NH-L9x65’s quality and performance. Recommended by more than 100 international hardware websites and magazines, it is renowned for being one of the best sub-70mm low-profile heatsinks on the market.

Dedicated Special Edition for AM4

The NH-L9x65 SE-AM4 brings the NH-L9x65’s signature quiet cooling performance to AMD’s new AM4 platform. With its highly compact design and low profile, it is ideal for cooling lower TDP AM4 CPUs in HTPC or Small Form Factor cases.

65mm Low Profile

Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.

100% RAM Compatibility

Being 95mm wide, the NH-L9x65 SE-AM4 complies with the AMD AM4 socket’s keep-out zone. This means that it won’t cause issues with chipset coolers and doesn’t overhang the RAM slots, making it fully compatible with tall memory modules.

100% Compatibility with PCIe Cards on Mini-ITX

Many mini-ITX mainboards have the PCIe slot sitting close to the socket zone. While larger coolers with 120mm or 140mm fans that exceed this zone may block the PCIe slot, the compact NH-L9x65 provides full compatibility with PCIe cards.

Easy Access to Near-Socket Connectors

Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient cooling performance, but by protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX mainboards. Thanks to its compact footprint, the NH-L9x65 provides easy access to all connectors and components.

NF-A9x14 PWM Premium Fan

The highly optimised NF-A9x14 premium fan features Noctua’s proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9x65 to stay remarkably quiet.

Low-Noise Adaptor

Allowing to reduce the maximum speed of the NF-A9x14 fan from 2500 to 1800 RPM, the included (L.N.A.) makes it possible to achieve near-silent setups using CPUs with up to 65W TDP.

SecuFirm2 Mounting System for AM4

Noctua’s SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. In order to achieve the best compatibility and to match the airflow path inside the case, the SecuFirm2 mounting for AM4 makes it possible to install the cooler either in standard orientation or turned by 90° (motherboard dependant).

NT-H1 Thermal Compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.

6 Year Warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTBF rating of more than 150,000 hours and the entire NH-L9x65 package comes with a full 6-year manufacturer’s warranty.

• Low profile cooler for AMD’s AM4 socket.
• Only 65mm in height.
• Ideally for mini ITX builds.
• Supplied with NF-A9x14 premium fan.
• Six year warranty.
Cooler Specifications
Edition NH-L9x65 SE-AM4
Cooler Form Factor Compact Single Tower
Heatpipes 4
Cooler Features
Socket Compatibility AM4
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 90mm
Fan Edition
PWM Fan Yes
Fan Bearing Type
Fan Colour Beige/Brown
LED Lighting
Fan/Pump Connectors
Max. Fan Speed 600 - 2500 rpm
Max. Fan Airflow 33.8 CFM
Max. Air Pressure
Max. Sound Level 14.8 - 23.6 dBA
Cooler Materials
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 95 x 95 x 51 mm (WxHxD)
Total Dimensions 95 x 95 x 65 mm (WxHxD)
Weight 413 g
Additional Information
Scan Code LN80577
Model Number NH-L9x65 SE-AM4
GTIN 9010018000085

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
TekSpek Guides
Date Issued: 20th Oct 2008

The purpose This TekSpek quickly and easily explains AMD’s new processor socket and related technology to the reader, comparing it to AMD’s previous socket types.

Read More

AMD 64 Processors
AMD 64 Processors
Date Issued: 20th Oct 2008

This TekSpek explains what AMD’s AMD64 CPU instruction set architecture (ISA) is, shows what CPUs implement it from both AMD and Intel, and explains what software is available to run on those 64-bit consumer processors.

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Noctua NH-L9x65 SE-AM4 AM4 Compact Quiet Low Profile CPU Cooler, 14.8 - 23.6dB, 600 - 2500rpm, 33.8CFM, is rated 2.8 out of 5 by 5.
Rated 3 out of 5 by from Not sufficient for 2700X Noctua’s website suggested this is OK for a 2700x in a well ventilated case. I can confirm that in an mini-itx case with the psu close above the cpu- it doesn’t work! 95degs under load, avoid for this cpu.
Date published: 2018-11-05
Rated 4 out of 5 by from Good in a pinch I am running an non OC 1800x, I idle at around 35-46c, a little high for my tastes but not dangerous levels, on load I reach up to 70-80c, well within acceptable operating temps So in a nutshell it works, However I would like to see my temps at least 20c lower than this, to that end this cooler is not designed for best performance As it is listed as a compact quiet and low profile I will go into detail about those point specifically, It is not as 'small' as its sister cooler but it does indeed sit well below the clearance of most high performance graphics cards, I have a 1080 TI and the reaches barley half way along the width of the GFX card, Clearance between RAM and GFX card is as you might expect, with at least an inch clearance between these components, more in the case of the GFX card. Using a turbo fan speed profile on my MOBO, Crosshair VI Hero, I do not hear the fan over my system fans or the transistors in the GFX card, my PC is situated on my desk a foot away from me, At full power you will hear the fan but it is in no way too loud and the only time I have noticed the fan speed up to full is under synthetic loads. Summary: The Noctua NH-L9x65 is a great cooler if you're not planning on putting your CPU though it's paces and serves well in low form factor cases and situations where case real-estate is limited. That said if you are looking for performance this is not the cooler for you.
Date published: 2018-03-07
Rated 1 out of 5 by from Runs way too hot When I read the other review, I thought the guy had made a silly installation mistake or something, but how wrong I was, this cooler keeps my 1600x at 70c IDLE! I have yet to stress it I am afraid to, but when doing a lot of PDF work it hits 90 nearly instantly! I do NOT recommend this cooler
Date published: 2017-08-09
Rated 1 out of 5 by from Hopeless Not suitable for 1700X, it doesn't even keep the CPU cool enough to run at full CPU load for more than 1 minute (this is stock settings, no overclocking). So disappointing.
Date published: 2017-06-08
