New
Scan code: LN104601 Manufacturer code: NH-L9I-CH-BK

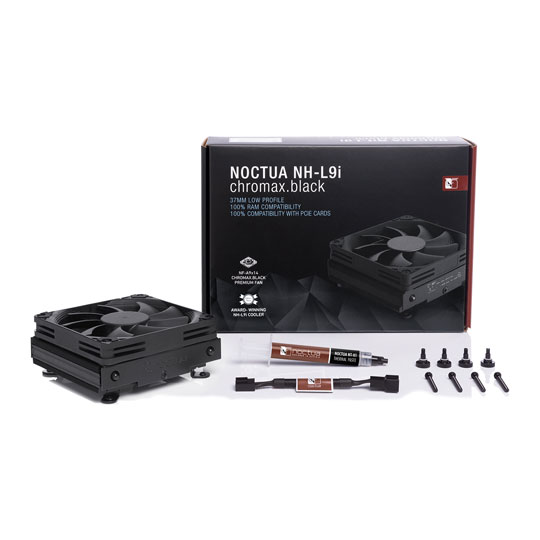

Noctua NH-L9i chromax.black Low Profile CPU Cooler

Noctua NH-L9i chromax.black, Low Profile CPU Cooler, Single 92mm Fan, 600-2500RPM, 33.8CFM Airflow, 23.6dB, 4-pin PWM

Thumbnail 1 : Noctua NH-L9i chromax.black Low Profile CPU Cooler Thumbnail 2 : Noctua NH-L9i chromax.black Low Profile CPU Cooler Thumbnail 3 : Noctua NH-L9i chromax.black Low Profile CPU Cooler
Scan code: LN104601 Manufacturer code: NH-L9I-CH-BK
£47.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 28th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Low Profile Quiet CPU Cooler

The NH-L9i chromax.black is an all-black version of Noctua’s award-winning NH-L9i low-profile quiet CPU cooler for HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9i’s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ low-profile mounting system for Intel LGA115x, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9i chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.

PLEASE NOTE: The NH-L9i is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.


Award-Winning NH-L9i Cooler

Tens of thousands of enthusiast users all over the world swear by the NH-L9i’s quality and performance. Recommended by more than 150 international hardware websites and magazines, it is renowned as being one of the best low-profile coolers on the market.


CHROMAX.Black Design

The NH-L9i chromax.black is black from head to toe: Featuring a black coated heatsink, a black fan with black anti-vibration-pads, black fan screws and black mounting parts, it’s right at home in all-black builds and easy to integrate with other colour schemes.


37mm Low Profile

Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.


100% RAM Compatibility

The NH-L9i has a 95x95mm footprint that complies exactly with the Intel LGA115x socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, so it's fully compatible with tall memory modules.


100% Compatibility with PCIe Cards on Mini-ITX

Most Intel LGA115x based mini-ITX motherboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-L9i provides full compatibility with PCIe cards.


NF-A9x14 PWM Premium Fan

The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet.


Low-Noise Adaptor

Allowing the maximum speed of the NF-A9x14 PWM fan to be reduced from 2500 to 1800rpm, the included Low-Noise Adaptor (LNA) makes it possible to achieve near-silent setups with suitable CPUs that only create smaller heat loads.


Custom-designed SecuFirm2™ Mounting for LGA115x

The NH-L9i bundles a custom-designed, backplate-less SecuFirm2™ mounting system for LGA115x that offers extended compatibility with mini-ITX boards and makes installation easier than ever, all while maintaining the trusted SecuFirm2™ quality.


NT-H1 Thermal Compound

Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.


Soldered Interface Between Heatpipes and Fins

With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-L9i’s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.


6-Year Manufacturer’s Warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTTF rating of more than 150.000 hours and the entire NH-L9i package comes with a full 6-year manufacturer's warranty.

Features
• All-black version of Noctua’s award-winning NH-L9i 37mm low profile cooler.
• For use with processors up to 65W.
• 100% RAM compatibility.
• 100% compatibility with PCIe cards on mini-ITX.
• Black NF-A9x14 PWM premium fan.
• Compatible with Intel LGA1150/1155/1156/1151.
• Six years manufacturer’s warranty.
• NT-H1 thermal compound included.
Specifications
Cooler Specifications
Edition NH-L9i chromax.black
Cooler Form Factor Compact Single Tower
Heatpipes 2
Cooler Features
  • Aluminium Fins
  • Low-Noise Cable
  • Nickel-Plated Copper Base
  • Nickel-Plated Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
Max. TDP 65W
Fan Specifications
Included Fan Configuration 1 x 92mm
Fan Edition Noctua NF-A9 HS-PWM
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour Black
LED Lighting
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 2500 rpm
Max. Fan Airflow 33.8 CFM
Max. Air Pressure 2.11 mm H²O
Max. Sound Level 23.6 dBA
Materials
Cooler Materials Aluminium / Nickel Plated / Copper
Included TIM (Thermal Interface Material) NT-H1 High-Grade Thermal Compound (Included)
Dimensions & Weight
Heatsink/Radiator Dimensions 95 x 23 x 95 mm (WxHxD)
Total Dimensions 95 x 37 x 95 mm (WxHxD)
Weight 380 g
Additional Information
Scan Code LN104601
Model Number NH-L9I-CH-BK
GTIN 9010018000191
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Noctua
