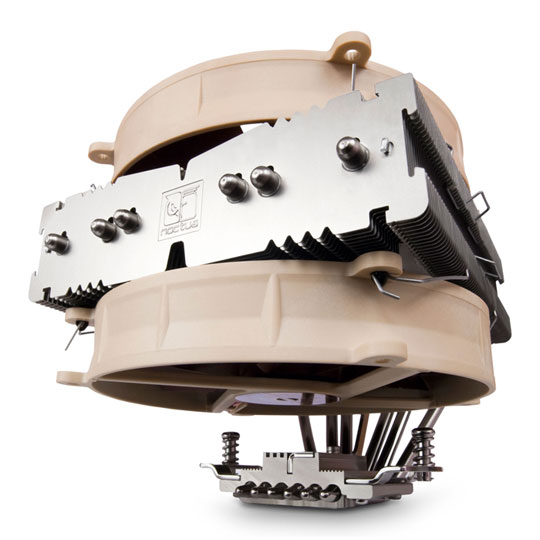

Noctua NH-C14 CPU Cooler
Scan code: LN36939
Manufacturer code: NH-C14
End Of Life
Product Overview
The NH-C14 brings top-flow cooling to a new level by offering an exquisite, uniquely flexible 140mm dual fan setup: The two supplied NF-P14 premium fans can be installed on top and underneath the fin-stack to configure the cooler for maximum performance in dual fan mode and either lower profile (105mm) or maximum component clearance in single fan modes.
Bundled with the award-winning NT-H1 thermal compound and Noctua's SecuFirm2 multi-socket mounting system, the NH-C14 is a highly flexible, premium-class top-flow solution that further boosts the renowned quiet cooling performance of the much acclaimed NH-C12P series. Features C-Type Top-flow Design
The NH-C14s six heatpipe c-type design allows for superb quiet cooling performance while maintaining a much lower profile than today's tower-style coolers and providing excellent airflow over RAM modules and near-socket mainboard components.
Dual NF-P14 FLX Fans
The NH-C14 comes with two of Noctua's award-winning, premium quality NF-P14 140mm fans that can be fine-tuned according to the users needs via the supplied Low-Noise (L.N.A.) and Ultra-Low-Noise Adaptors (U.L.N.A.).
Low Profile Mode
Run with a single NF-P14 fan underneath the fin stack and with the top fan removed, the NH-C14 measures only 105mm in height, which makes it ideal for use in smaller enclosures and HTPC applications.
High Clearance Mode
The lower NF-P14 fan can be removed in order to provide additional clearance for chip-set coolers or RAM modules with tall heat-spreaders. Run with a single fan on top, the NH-C14 provides a full 65mm of clearance.
SecuFirm2 Multi-socket Mounting System
Noctua's enthusiast grade SecuFirm2 multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, LGA775, AM2, AM2+ and AM3) and meets the highest demands in safety, performance and ease-of-use.
Noctua NT-H1 High-end Thermal Compound
Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
Includes:
• 2x NF-P14 premium fan
• Low-Noise Adaptor (L.N.A.)
• Ultra-Low-Noise Adaptor (U.L.N.A.)
• NT-H1 high-grade thermal compound
• SecuFirm2™ Mounting Kits
• Noctua Metal Case-Badge
Installation Manual:
Please note: The cooler doesn’t come with LGA2011 mounting hardware out of the box, but it can be upgraded to support LGA2011 via the NM-I2011 mounting kit.
Backplate may be required for AMD CPUs.
Bundled with the award-winning NT-H1 thermal compound and Noctua's SecuFirm2 multi-socket mounting system, the NH-C14 is a highly flexible, premium-class top-flow solution that further boosts the renowned quiet cooling performance of the much acclaimed NH-C12P series. Features C-Type Top-flow Design
The NH-C14s six heatpipe c-type design allows for superb quiet cooling performance while maintaining a much lower profile than today's tower-style coolers and providing excellent airflow over RAM modules and near-socket mainboard components.
Dual NF-P14 FLX Fans
The NH-C14 comes with two of Noctua's award-winning, premium quality NF-P14 140mm fans that can be fine-tuned according to the users needs via the supplied Low-Noise (L.N.A.) and Ultra-Low-Noise Adaptors (U.L.N.A.).
Low Profile Mode
Run with a single NF-P14 fan underneath the fin stack and with the top fan removed, the NH-C14 measures only 105mm in height, which makes it ideal for use in smaller enclosures and HTPC applications.
High Clearance Mode
The lower NF-P14 fan can be removed in order to provide additional clearance for chip-set coolers or RAM modules with tall heat-spreaders. Run with a single fan on top, the NH-C14 provides a full 65mm of clearance.
SecuFirm2 Multi-socket Mounting System
Noctua's enthusiast grade SecuFirm2 multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, LGA775, AM2, AM2+ and AM3) and meets the highest demands in safety, performance and ease-of-use.
Noctua NT-H1 High-end Thermal Compound
Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
Includes:
• 2x NF-P14 premium fan
• Low-Noise Adaptor (L.N.A.)
• Ultra-Low-Noise Adaptor (U.L.N.A.)
• NT-H1 high-grade thermal compound
• SecuFirm2™ Mounting Kits
• Noctua Metal Case-Badge
Installation Manual:
Please note: The cooler doesn’t come with LGA2011 mounting hardware out of the box, but it can be upgraded to support LGA2011 via the NM-I2011 mounting kit.
Backplate may be required for AMD CPUs.
