Button Interface & LED Control

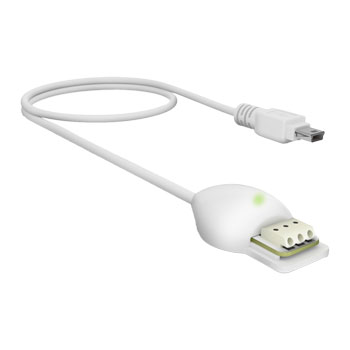

The X-DOT I5 is designed to work seamlessly with standard push buttons featuring embedded LEDs. With its ultra-small form factor, it includes an LED driver for 5.0V LEDs, offering smooth dimming from 100% to 0%, making it ideal for interactive retail displays or kiosks. Thread the copper ends into the X-DOT 15 to bend LED buttons to your will; X-Talk allows signals to be programmed and trigger actions based on user inputs. The X-DOT I5 supports controlling 5.0V LEDs, allowing for smooth dimming and programmable lighting effects, such as glowing or pulsing. Mount easily with non-marking double-sided tape, with options for bottom or side cable feeds for clean installation.
X-Talk Integration
To integrate the X-DOT I5 with your system, connect it to a Nexmosphere Xperience controller using the X-Talk interface. This wired connection allows for seamless communication and configuration of the X-DOT I5 through the controller. The module is also compatible with any 3rd party 5.0V I/O devices. By using the Xperience controller, you can collect data from the X-DOT I5 and use it to enhance the functionality of your display or interactive kiosk.
Features
• Status LED driver for 5.0V LED
• Unique cable connection (bottom feed or side feed) enables invisible cable installation.
• Securely mounts on any flat surface, horizontal, vertical or angled.
• Multiple data gathering functionalities on Xperience controller offer unique insight in traffic.
• Interfaces with any 3rd party 5.0V I/O device
