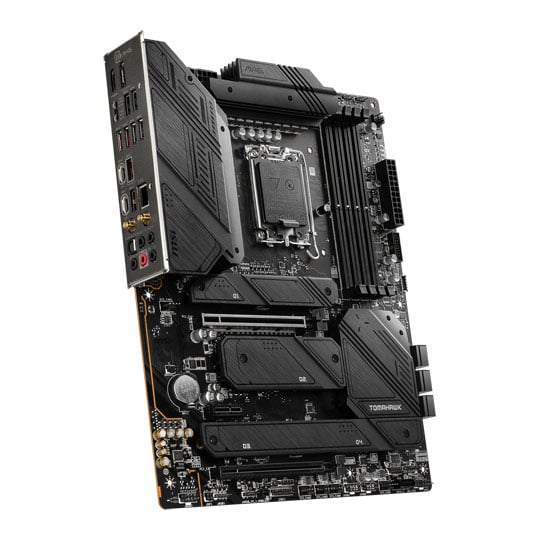

MSI Intel MAG Z790 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG Z790 TOMAHAWK WIFI, Intel Z790, S 1700, DDR5, SATA3, PCIe 5.0, 4x M.2, 2.5GbE, USB 3.2 Gen2x2, ATX
- SCANPROTECT Protect against installation damage for 28 days. More info
Frequently Bought Together
Unite As One Meet the Z790 TOMAHAWK WiFi, designed and constructed to draw the full potential from the latest 13th Generation Raptor-Lake CPUs, by combining durability, value and stunning aesthetics with a military-inspired twist. Boasting support for DDR5 memory, an enhanced 16+1+1 duet rail power system, lightning-fast PCIe 5.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.
Intel Z790Chipset
LGA 1700CPU Socket
12th/13th Gen Intel® Core™ ProcessorsCompatible CPU
ATXForm Factor
Outstanding Cooling Solution
7W/mK MOSFET Thermal Pads
M.2 Shield Frozr
Pump Fan Support
Extended Heatsink
High-Speed Transmission
2.5G LAN
WIFI
6E
PCIE 5.0
Slots
Memory Boost
A Stable Cornerstone for Your System
Steel PCIe
armor
16+1+1 Phases
Duet Rail Power
Server Grade
PCB
Core
Boost
Massive Cooling Potential
1. Extended HeatsinksLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.
2. M.2 Shield FrozrM.2 thermal solutions keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
3. Heavy Plated VRM HeatsinkThis VRM heatsink, covers the upper MOS and helps to increase heat dissipation.
4. 7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.
Aggressive Power Design
16 PhaseCore 90A Power Stage
1 PhaseGT Power
1 PhaseAUX Power
16+1+1 DUET RAIL POWER SYSTEMUnleash and sustain the maximum performance with a premium VRM design built with a total of 16+1+1 Duet Rail Power System(DRPS). Combining dual power connectors and Power Stage, MAG Z790 TOMAHAWK WIFI is ready for the challenge of high-end processors.
Meet The Latest Generation
LIGHTNING GEN 5 PCI-ESay hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.
SMT PCIe 5.0 SlotThe advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.
Maximise Your Storage Capabilities
Fast and future ready storageMSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

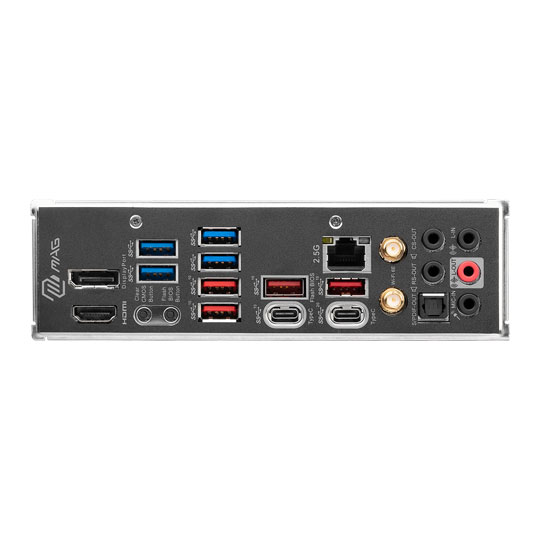

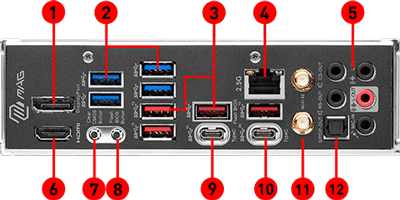

Fully Comprehensive I/O Panel
Rear:
1: DisplayPort 1.4
2: USB 3.2 Gen 1 5Gbps Type-A
3: USB 3.2 Gen 2 10Gbps Type-A
4: 2.5G LAN Port
5: HD Audio Connectors
6: HDMI™ 2.1 Port
7: Clear CMOS Button
8: Flash BIOS Button
9: USB 3.2 Gen 2 10Gbps Type-C
10: USB 3.2 Gen 2x2 20Gbps Type-C
11: Wi-Fi / Bluetooth Antenna
12: Optical S/PDIF OUT
