HEDD TYPE 07 MK2 Black, Adam Hall Stands & Leads, Frequency response 38 - 40 000 Hz, Maximum SPL 116 dB
HEDD - 'Type 07 MKII' Monitors (Black)
Adam Hall Stands & Leads

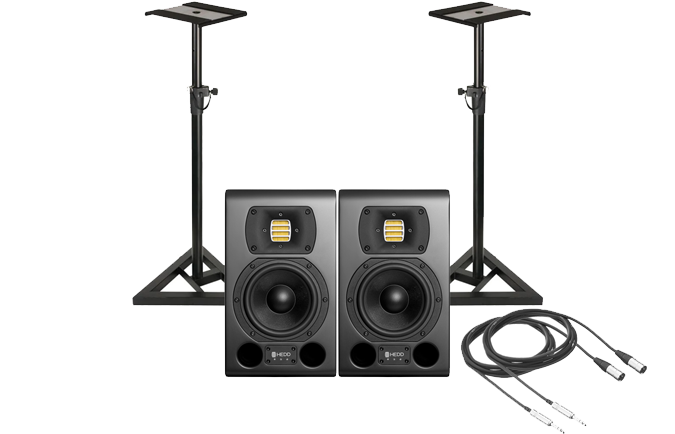

scan pro audio presents...Scan Pro Audio is proud to present the ultimate studio-monitoring bundle, comprised of the revolutionary and ground-breaking ‘Type 07 MK2’ from German audio luminaries ‘HEDD’, we’ve included a pair of these incredible 7” monitors, alongside a pair of Adam Hall monitor stands, and of course a pair of 3m XLR to 6.3mm stereo jack cables so you can get connected right away!
HEDD - 'Type 07 MKII'
(Black)
INTRODUCING MK2 STUDIO MONITORS
The mk2 range from HEDD improve further a fantastic product line, which itself was the result of decades of speaker technology research. It follows on from designer Klaus Heinz work at Adam Audio where he was responsible for many legendary models such as the incredibly popular A7X. All models retain the AMT (Air Motion Transformer) driver that provides sharp and fast treble and combines it with two new technologies for making the speakers more accurate and responsive.
Firstly, they have now integrated the lineariser DSP plugin that accompanied the first-generation units inside the speaker itself. This works by slightly delaying certain frequencies so that all of them leave the speaker at exactly the same time, resulting in a perfect, phase coherent impulse response. The listener will sense the that the bass notes will appear much punchier and tighter, especially in the sub octaves, as lower waves take longer to develop than the treble frequencies, alongside an improves spatial response. Surprisingly the integrated version has less latency than the previous plugin, coming in at only 10ms.
“The new HEDD product line demonstrates what can be achieved
today both in audio quality and control versatility. We believe that we
are about to set a new benchmark within MI / Pro Audio whilst
increasing the company’s potential to be successful in both the
Broadcast- and Consumer Audio realm.” - Klaus Heinz, CTO HEDD Audio
7"Woofer
38 - 40,000HzFrequency response (-3 dB)
116 dBMax SPL
C.O.P.
pin-point transient responseThe other addition from adding the DSP in box is that in enables the “COP” (closed or ported) option. Since the inception of loudspeakers, there have been 2 differing design approaches to achieve a good bass response: closed box design which made the Yamaha NS-10’s & Neumann KH310 so revered and bass reflex speakers, or ported designs.
By offering removable plugs for the bass ports, in tandem with advanced FIR (Finite Impulse Response filtering), HEDD now offers users the choice between both of these worlds: A pin-point transient response/optimum accuracy (closed cabinet approach) or the advantages of a dynamic and low-reaching bass-ported design with greater SPL Closing the ports obviously affects the tonal balance, so there is a switch on the rear of the unit to change the balance accordingly to compensate.
Adding the DSP also has an additional advantage for connectivity, as alongside the analogue input, it is now also possible to digitally connect directly to the speakers using AES digital signals over XLR connection and includes a though socket to connect to additional speakers.

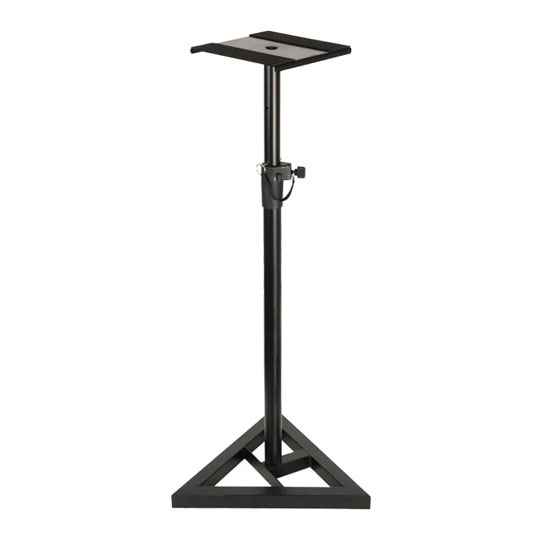

Adam Hall - Height Adjustable Studio Monitor Stand
universal studio monitor standThis universal studio monitor stand consists of 35/40 mm black powder-coated tubes and holds speakers weighing up to 35 kg. The height is adjustable in 12 cm increments, while a T-screw and a locking pin ensure increased safety.
The standing space required measures 230 x 230 mm and also provides space for your monitor speakers. The stand’s upper tube is fitted with a plastic clip for discreet cable guidance. The triangular foot can be fitted with three adjustable plastic feet or with steel spikes. Removing the stand’s shelf allows the stand to be used with any speaker in combination with a 36 mm standard flange.

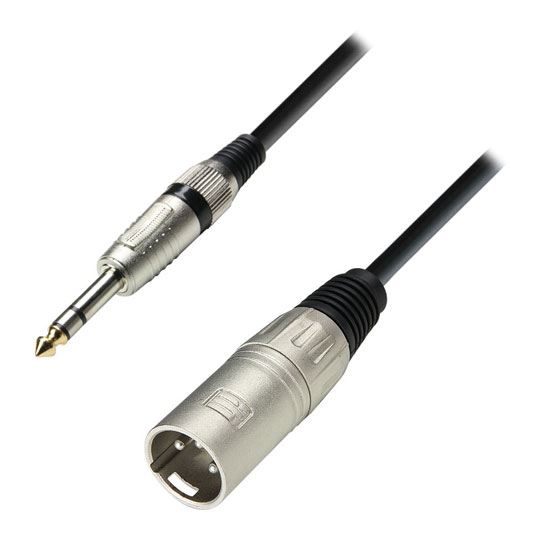

Adam Hall - 3m XLR(m) to 6.3mm Stereo Jack
These cables are perfect for connecting interfaces and mixers with 1/4" jack outputs with most powered monitors including Genelec and the Adam AX Series, which don't have jack sockets.
These provide a balanced connection (if your device supports it) to reduce susceptibility to external noise and help avoid groundloop problems.
Balanced conductor routing with a 6.3 millimetre TRS plug and a male XLR plug. Uses original Adam Hall plugs and high-quality cable material.
'Type 07 MKII' - Tech Spec
| Features | Specification | Woofer (honeycomb diagram) | 7’’ (1.5’’ voice coil) |
|---|---|
| Tweeter | HEDD AMT |
| Crossover frequencies (48 db/oct) | 2300 Hz |
| Input analog and digital (AES) | 2x XLR |
| Input impedance (balanced) | 22 kΩ |
| Input gain | ± 12 dB |
| Input sensitivity (A/D modulation) | -10 /-4 / 0 / +4 dB |
| Output: AES “through” | XLR |
| HEDD Lineariser®, disengageable, delay | 10 ms |
| Shelve filters high / low (.5 dB steps) | ± 4 dB |
| LF range (-3 dB): normal / extended / satellite | 38 / 30 / 80 Hz |
| Desk filter: small / medium / large | 180 Hz (-1 / -2 / -4 dB) |
| Frequency response (-3 dB) | 38 - 40 000 H |
| Maximum SPL (per pair) | 116 dB |
| Power amplifier / universal mains 110 - 240 V | 2x 100 W ICEpower |
| AD/DA Conversion | 96 kHz / 24 Bit |
| Cabinet with satin lacquer finish | black or white |
| Dimensions (H x W x D) | 370 x 220 x 300 mm |
| Weight | 9.9 kg |
| Warranty | 2 years |
