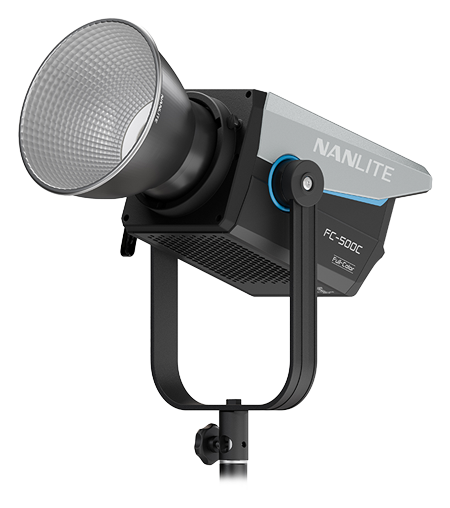

Nanlite - 'FC-500C RGB LED Spotlight'
Style Meets ColourIntroducing the Nanlite FC-500C RGBW LED Spotlight, the first RGBW model in its FC line, designed for maximum versatility and performance. This powerful 500W fixture offers full-colour lighting with a range of 2700-7500K and access to 36,000 vivid colours, providing extensive creative options. Built with Nanlite’s unique wing-shaped housing, the compact, stylish FC-500C runs on AC power and can also operate on V-mount batteries with the optional FC power controller. As Nanlite’s brightest RGBW light, it delivers exceptional output with high colour accuracy (CRI 95, TLCI 94), all controllable via onboard or remote settings for advanced, user-friendly lighting.
2700K-7500KCCT Range
Average 95CRI
Average 92TM-30 Rf
SSI 84SSI（3200K）
±150G/M adjustment
Average 94TLCI
Average 100TM-30 Rg
SSI 71SSI（5600K）
Stunning Output

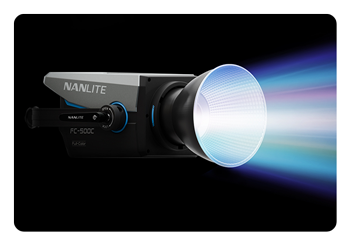

White Light or ColourThe FC-500C utilizes Nanlite’s high power-ratio RGBW full-color LED. This makes the light as powerful as possible so it can deliver remarkable output in both white light and colour modes. Coupled with the company’s advanced optical light mixing technology, it ensures an even beam and excellent performance.

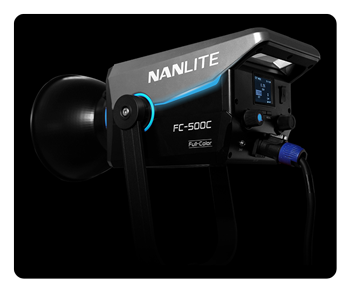

Stylish
LightweightThe FC-500C is designed with a distinctive contrasting grey/black body and Nanlite blue accents. It is a stylish, practical and lightweight addition to any set. The light comprises a lamp head with integrated controls and clear display, plus a separate AC power supply. The head weighs in at just 3.91kg/8.62lb, making the FC-500C easier to transport and simple to use as an overhead light. No longer do users have to choose between lightweight or output - with the FC-500C they can have it all.
Wide CCT Range
High Colour AccuracyUsing Nanlite’s specially developed colour mixing technology the FC-500C offers a wide colour temperature range from 2700K-7500K and ±150 Green/Magenta adjustments. This enables easy fine-tuning of colour output to match the time of day or different light sources as required. The FC-500C delivers outstanding colour rendering, meeting the strict colour accuracy demanded today in both video production and still photography.
Multiple Modes
Efficient OperationsThe FC-500C has five built-in lighting modes, offering almost limitless possibilities for lighting. All modes can be easily controlled through the intuitive user interface on the head, or via the NANLINK app. Users can effortlessly achieve the perfect lighting for their shoots by quickly adjusting colour and effects at will.
CCT ModeThe colour temperature and Green/Magenta value can be accurately adjusted to reproduce various lighting effects or create different looks.
HSI ModeThe hue, saturation and intensity of light can be quickly adjusted to choose from any one of 36,000 colours.
RGBW ModeThis offers individual control of red(R), green(G), blue(B), and white(W) intensity, enabling a wide range of colour options.
Gel ModeSelect any one of 151 different gels. The base colour temperature of the light can also be adjusted and the gel colour is helpfully previewed on the light’s display screen.
Effect Mode15 effects are available and the parameters of each effect can be adjusted to achieve life-like lighting effects.
Multiple Control Options

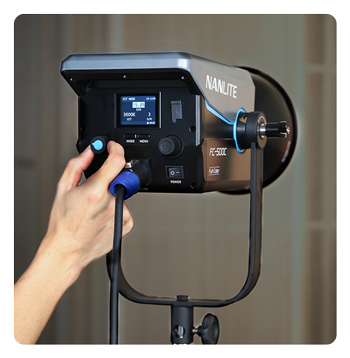

On-board ControlThe FC-500C has an elegantly designed two knob and two button control layout, combined with a bright, clear display to make setup straightforward.

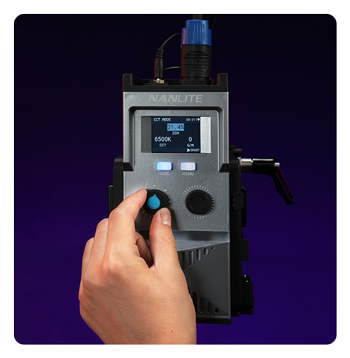

FC PowerControllerThe FC-500C can be connected to the optional FC PowerController for wired control at up to 3m/9.84ft away from the light. The display is duplicated on the controller allowing users to quickly and accurately set options.

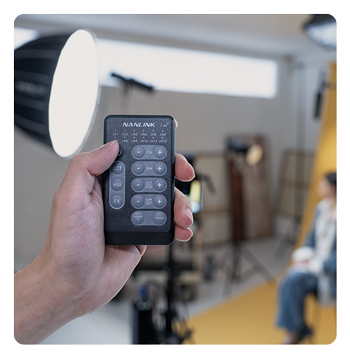

Wireless Remote ControllerThe FC-500C features a built-in 2.4G module, enabling quick and easy remote adjustments of basic settings via the wireless remote controller.

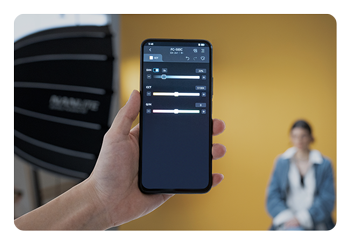

NANLINK APP 2.0 ControlThe fully upgraded NANLINK 2.0 delivers complete and intuitive touchscreen control for the FS-500C using a tablet or smartphone, greatly enhancing flexibility and usability.

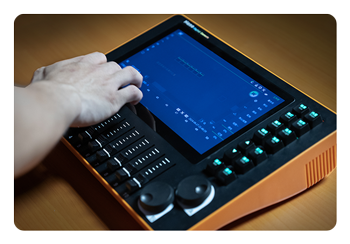

DMX/RDM ControlFor more complex lighting setups, the FC-500C is engineered with a DMX port. It can be connected to a DMX console via the DMX adapter cable with a 3.5mm connector, ensuring reliable control for multiple light fixtures.
Broad Range Of Accessories
Bowens MountThe FC-500C features a standard Bowens mount and an umbrella mount to attach light modifying accessories. This ensures comprehensive accessory compatibility, allowing users to take advantage of the powerful point light source for light shaping.
Efficient Cooling

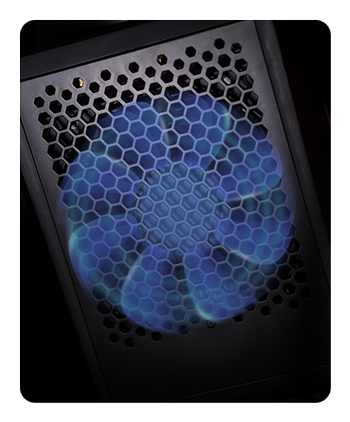

cooling systemThe FC-500C features a larger 11cm diameter fan that allows for efficient cooling at lower speeds. To minimize noise, it has four fan modes (Smart / High Speed / Low Speed / Off) that allow the user to balance lighting and audio recording requirements. In Smart mode, the fan automatically adjusts its speed based on the ambient temperature, allowing for 100% power output while limiting the noise level to around 29 dBA, making it suitable for professional projects. In Smart mode or Full Speed mode, the maximum output is 100%. In Low Speed mode, the maximum output is 50%. In Off mode, the maximum output is 8%.
Flexible Power Supply

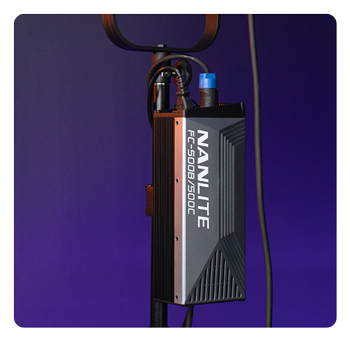

DC 48V inputThe FC-500C supports DC 48V input and can be powered either by the included power adapter or the external batteries (sold separately). When used with the FC PowerController, the FC-500C can be powered by one or two 14.4-14.8V/26V batteries, providing freedom of movement without the restrictions of needing AC power. This setup also ensures that lighting remains ongoing in outdoor or other environments without power access.
Firmware Update

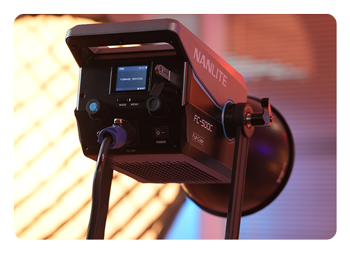

update via usbThe FC-500C fixture body is equipped with a USB port for firmware update via a USB drive, unlocking constantly enhanced performance.

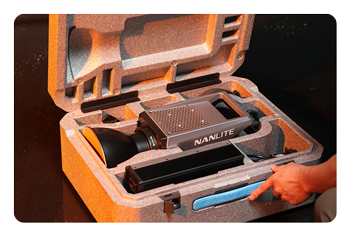

EPP Carry Case
carry caseThe FC-500C comes with a carry case made from high-density EPP material, which offers excellent pressure resistance and impact durability. This makes transporting the FC-500C convenient. The case features two lock catches for a secure yet easy opening, and the carefully designed interior ensures easy storage and access.
