MSI Intel Z790 GAMING PLUS DDR5 PCIE 5 WIFI ATX Motherboard
MSI Intel Z790 GAMING PLUS DDR5 PCIE 5 WIFI ATX Motherboard
Scan code: LN139984 Manufacturer code: Z790 GAMING PLUS WIFI
£189.98
Add To Basket
Get it Tomorrow, 16 JanIn stock
  • Thumbnail 1 : MSI Intel Z790 GAMING PLUS DDR5 PCIE 5 WIFI ATX Motherboard
  • Thumbnail 2 : MSI Intel Z790 GAMING PLUS DDR5 PCIE 5 WIFI ATX Motherboard
  • Thumbnail 3 : MSI Intel Z790 GAMING PLUS DDR5 PCIE 5 WIFI ATX Motherboard
  • Thumbnail 4 : MSI Intel Z790 GAMING PLUS DDR5 PCIE 5 WIFI ATX Motherboard

MSI Intel Z790 GAMING PLUS DDR5 PCIE 5 WIFI ATX Motherboard

MSI Z790 GAMING PLUS WIFI, Intel Z790, S 1700, DDR5, PCIe 5.0, 4x M.2, 2.5GbE, WiFi 6E/BT 5.3, ATX
MORE INFO
MORE INFO

Scan code: LN139984 Manufacturer code: Z790 GAMING PLUS WIFI
£189.98
Order now and get it tomorrow, Thu 16th Jan
Add To Basket
Get it Tomorrow, 16 JanIn stock

Email me when the availability or price changes

  • By DPD On 16th Jan Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £15.84 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £15.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £189.98
    Total inc. interest: £189.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

MSI steam promotion

MSI Z790 GAMING PLUS WIFI LGA1700 13th Gen Intel ATX Motherboard

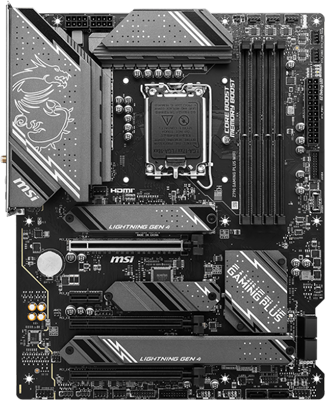

MSI Z790 Motherboard

Designed For Gamers Take a step into the future with the Z790 Gaming Plus Wifi motherboard, designed and constructed to draw the full potential from the latest 13th Generation Raptor-Lake CPUs. Combining durability, Power and stunning aesthetics with a stylish twist. Boasting support for DDR5 memory, an aggressive 14+1+1 duet rail power design system, lightning-fast PCIe 5.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink design, heavy plated VRM heatsinks, M.2 Shield Frozr and high-end thermal pads perfect for a high-end system. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

Intel Z790Chipset

LGA 1700CPU Socket

12th/13th Gen Intel® Core™ ProcessorsCompatible CPU

ATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK MOSFET Thermal Pads

M.2 Shield FROZR

M.2 Shield
Frozr

extended heatsinks

Extended Heatsink

Pump fan support

Pump Fan
Support

High-Speed Transmission

Connectivity options
10G

2.5G LAN

Wifi 6e

WIFI
6E

Gen 5 slots

PCIE 5.0
Slots

M.2 Connector

m.2
Connector

20G USB

Lightning USB
20G

DDR5 Memory

DDR5 Memory
Support

A Stable Cornerstone for Your System

DIY protection
Steel PCIe slots

Steel PCIe
armor

Digital PWM

14+1+1 Phases
VRM Power

PCB

6-Layer Server
Grade PCB

XL Clip

XL
Clip

IO Shield

IO
Shield

Dual Power Connectors

Dual Power
Connectors

Massive Cooling Potential

1. Extended HeatsinksLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.

4. 7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.

5. Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

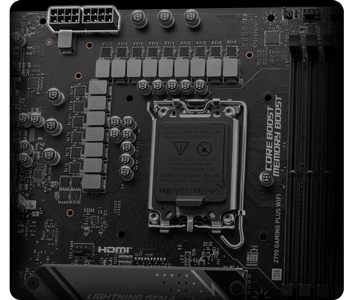

Aggressive Power Design

Robust power design

14 PhaseCore Power Stage

1 PhaseGT Power

1 PhaseAUX Power

14+1+1 DUET RAIL POWER SYSTEMUnleash and sustain the maximum performance with a VRM design built with a total of 14+1+1 Power Phases. Combining dual power connectors and exclusive core boost technology, Z790 Gaming Plus WIFI is ready for the challenge of high-end processors.

Meet The Latest Generation

PCIE 5 slots

LIGHTNING GEN 5 PCI-ESay hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.

SMT PCIe 5.0 SlotThe advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageThe MSI Z790 GAMING PLUS WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

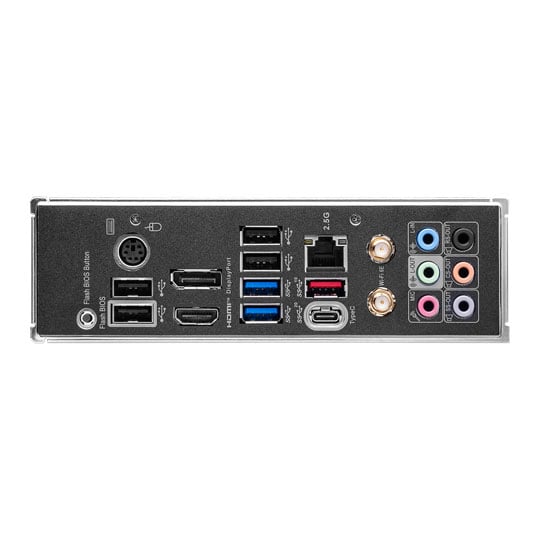

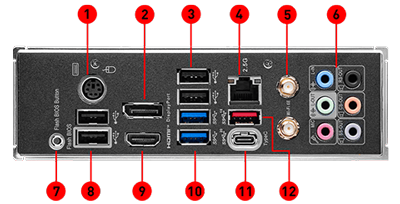

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: Keyboard / Mouse
2: DisplayPort
3: USB 2.0
4: 2.5G LAN Port
5: Wi-Fi / Bluetooth Antenna
6: Audio Connectors
7: Flash BIOS Button
8: USB 2.0
9: HDMI™ 2.1 Port
10: USB 3.2 Gen 1 5Gbps Type-A
11: USB 3.2 Gen 2x2 20Gbps Type-C
12: USB 3.2 Gen 2 10Gbps Type-A

Specifications
Core Specifications
Edition GAMING PLUS WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
SATA Support SATA3
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 6 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x Thunderbolt header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 4 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x Side Speaker Out
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN139984
Model Number Z790 GAMING PLUS WIFI
GTIN 4711377134712
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
