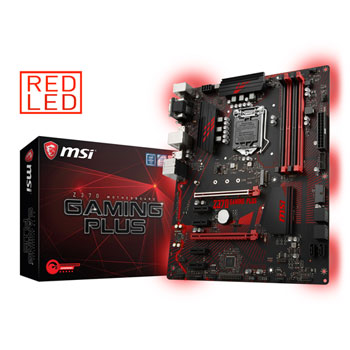

MSI Intel Z370 GAMING PLUS Coffee Lake ATX Motherboard

MSI Z370 GAMING PLUS, Intel Z370, S 1151, DDR4, SATA3, M.2, 2-Way CrossFire, Intel GbE, USB 3.1 Gen1 A, ATX

MSI
Scan code: LN84370 Manufacturer code: Z370 GAMING PLUS Request call
£127.49
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End

There are 6 people viewing this product

Delivery options £11.50 By DPD On 25th Oct 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Built for Hard-core Gamers And Pc Enthusiasts
This motherboard is designed to fully utilize the Intel® Coffee Lake 6 core processors, ready to deliver world class performance when gaming.

The Competitive Edge
Unlimited customization options and packed with exclusive gaming features, MSI Performance Gaming motherboards offer the best possible gaming experience.

Powered by FNATIC

"We are proud to be a part of the MSI GAMING testing program to help give gamers the best hardware to play games at the highest level."
Fnatic CS:GO Team FeaturesSupports: 8th Gen Intel® CoreTM / Pentium® Celeron® processors for LGA 1151 socket.
Supports: DDR4 Memory, up to 4000+(OC) MHz.
Lightning Fast Game experience: 1x TURBO M.2, Intel Optane Memory Ready.
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.
Gaming LAN, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
Multi-GPU: With Steel Armour PCI-E slots. Supports 2-Way AMD Crossfire™.
VR Ready: Best virtual reality game experience without latency, reduces motion sickness.
Military Class 5, Guard-Pro: Latest evolution with high quality Japanese components for best protection and efficiency.
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast.
EZ Debug LED: Easiest way to troubleshoot.
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favourites and search function.
Gaming Certified: 24-hour on- and offline game and motherboard testing by eSports players.

Please Note: Intel Z370 Motherboards are ONLY compatible with Intel 8th. Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen. Intel CPUs.
Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.2
  • DVI-D
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x Parallel Port (LPT) Header
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 3 x Audio I/O
  • 1 x D-Sub (VGA) Out
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
14 days
RTB Period:
24 months
