MSI Intel Z370 GAMING M5 Coffee Lake ATX Motherboard

MSI Z370 GAMING M5, Intel Z370, S 1151, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, Killer GbE, USB3.1 G2 A+C, ATX

MSI
Scan code: LN84369 Manufacturer code: Z370 GAMING M5 Request call
£203.48
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Free Delivery Delivery options Free By DPD On 18th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Z370 Gaming Motherboard - MSI GAMING M5 - Intel 8th Gen

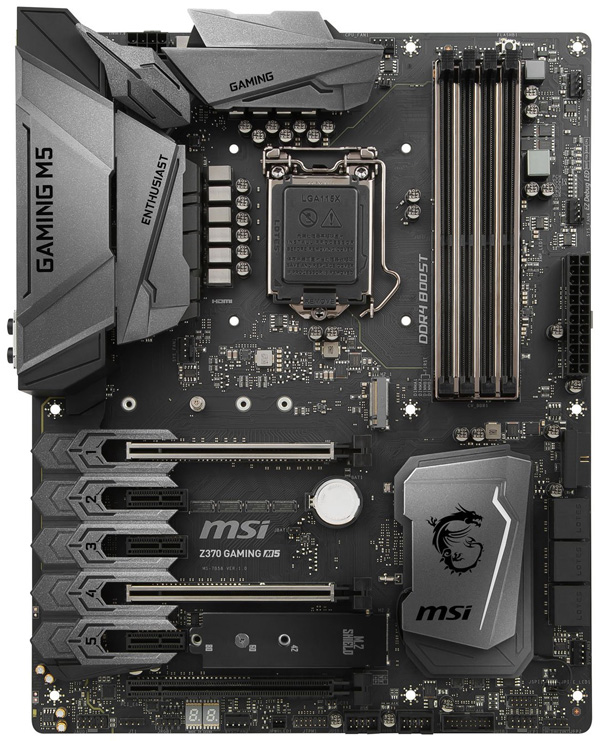

MSI Z370 Gaming M5

ATX Gaming Motherboard - GAMING M Series

The GAMING M5 Z370 from MSI has a unique look and feel, packed with exclusive gaming features, MSI Enthusiast Gaming motherboards offer the best possible gaming experience. It's packed with technologies that ensure you get the most performance from all your PCs components.

Please note: Z370 Motherboards are ONLY compatible with Intel 8th Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z370
Chipset

1151
CPU Socket

8th Gen Only
Compatable CPUs

ATX
Form Factor

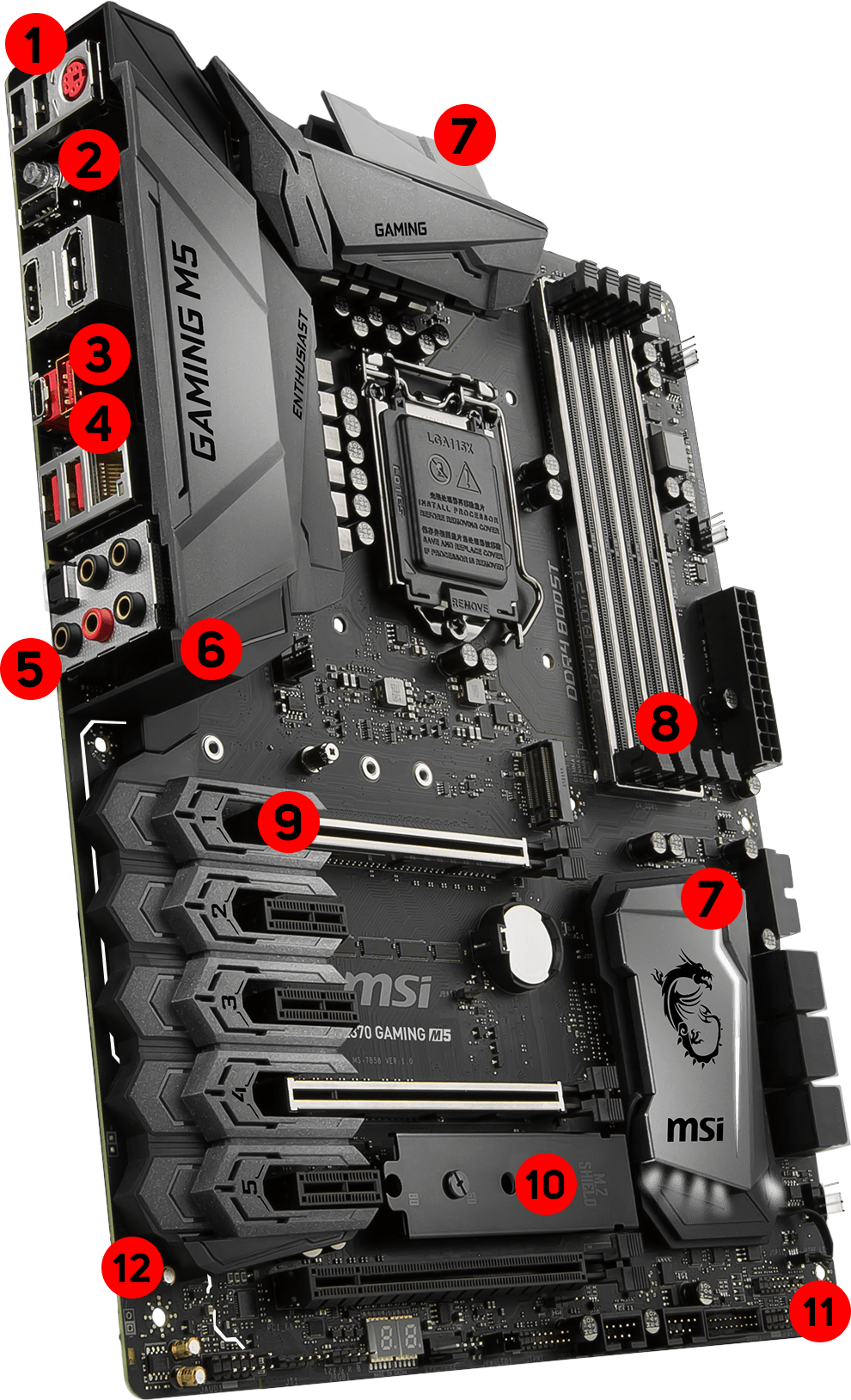

Features on the M5 Z370

Gaming M5 Features
  1. GAMING Device Port
  2. Clear CMOS & FlashBack+
  3. Lightning USB 3.1 Gen2
  4. Killer GAMING LAN
  5. Golden audio jacks with S/PDIF
  6. Full gaming IO cover
  7. Solid heatsink with RGB LED
  8. DDR4 Boost with Steel Armor
  9. PCI-E Steel Armor
  10. M.2 Shield
  11. Double ESD protection
  12. Audio Boost 4 with amplifier

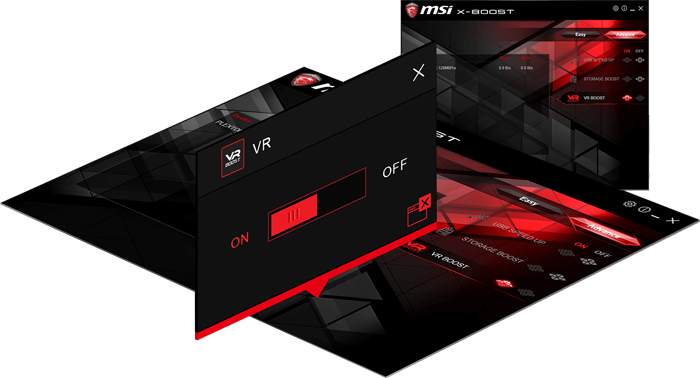

Beyond VR Ready

VR Ready

Complete your Immersion

From the start of Virtual Reality, MSI has been deeply involved in making VR Ready hardware in each of its product lines. Whether it's a feature-rich motherboard, a framerate boosting graphics card or a blazing fast complete gaming system, a huge set of VR-supporting features awaits you. Both hardware and software need to be in tune for a smooth VR experience. One Click to VR makes it very fast and easy to get primed for VR. A single click sets all your key components to their highest performance and makes sure other software applications won’t impact your virtual adventure.

Personalise your Gaming Rig

Mystic RGB

With multiple colors available, you are the artist to create your own unique gaming rig. Done selecting colors? Choose between several LED effects to really make your system come alive and enjoy your personalized design! Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

Mystic Light RGB Sync LED Effects

Mystic - No Animation

No Animation

Mystic - Breathing

Breathing

Mystic - Flashing

Flashing

Mystic - Double Flashing

Double Flash

Mystic - Random

Random

Mystic - Stack

Stack

Mystic - Wave

Wave

Mystic - CPU Temperature

CPU Temp

Mystic - CPU Meteor

Meteor

Mystic - CPU Lightning

Lightning

Mystic - CPU Rainbow

Rainbow

Mystic - CPU Pop

POP

Mystic - CPU Rap

RAP

Mystic - CPU Jazz

Jazz

Mystic - CPU Play

Play

Mystic - CPU Movie

Movie

Mystic - Off

Off

Syncronize your LED Experience

With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards and mice or RGB system fans.

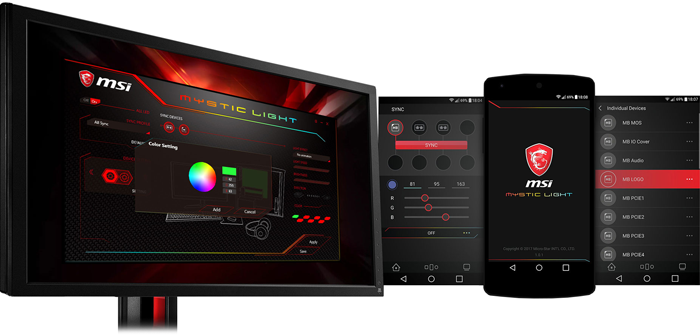

Smartphone & PC Control

Gaming App

Control the LED Lighting

Create your own colorful masterpiece with ease. The easy to use MYSTIC LIGHT APP is available on PC, phone and tablet. It offers remote control, simply using your smartphone or tablet. Make your PC look and feel brand new with any color you want with just a few clicks.

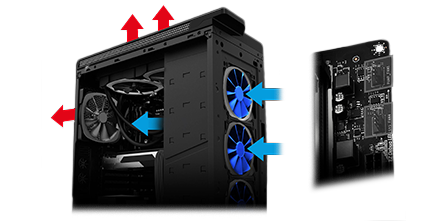

Stay Cool woth PC Pro

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max. High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance at all times.

Fan Headers

Fully Controllable Fan Headers

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

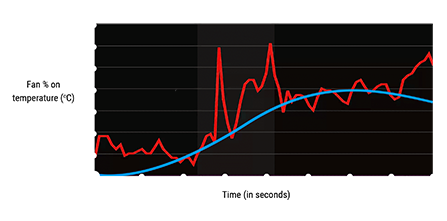

DC or PWM Modes

DC or PWM Mode with Hysteresis

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

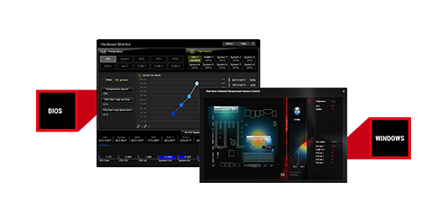

Control Fans

Total Control in BIOS and Software

Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

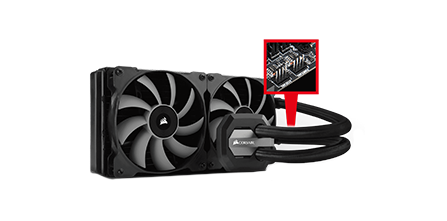

Watercooled Ready

Optimized for Water Cooling

Designed to support the most popular All-In-One & custom water cooling solutions. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked zone allows for easy and safe installation.

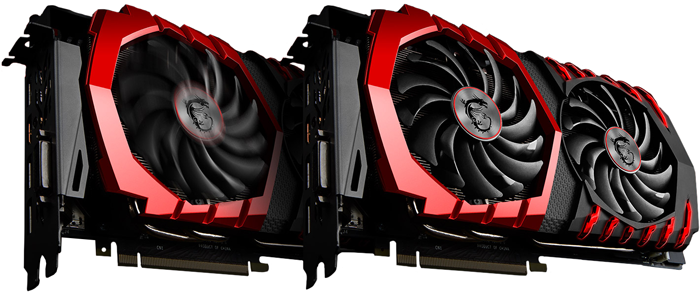

More Performance with Multi GPU

Multi GPU

Get More Performance

Gaming enthusiasts are always looking for more performance to get the ultimate experience. Using multiple graphics cards is a great way to find out just how good it gets. MSI GAMING motherboards fully support multi GPU technologies and have optimal PCI-E slot placement for the best thermal performance.

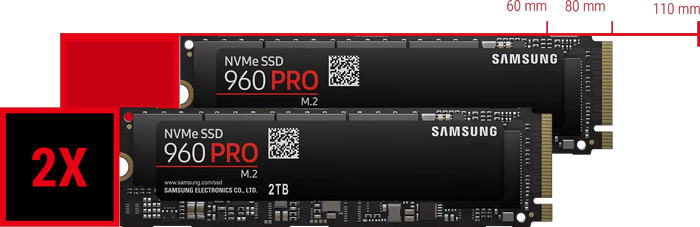

Ultrafast M.2 Connectivity

m.2 SSD

Boost your HDD to perform SSD

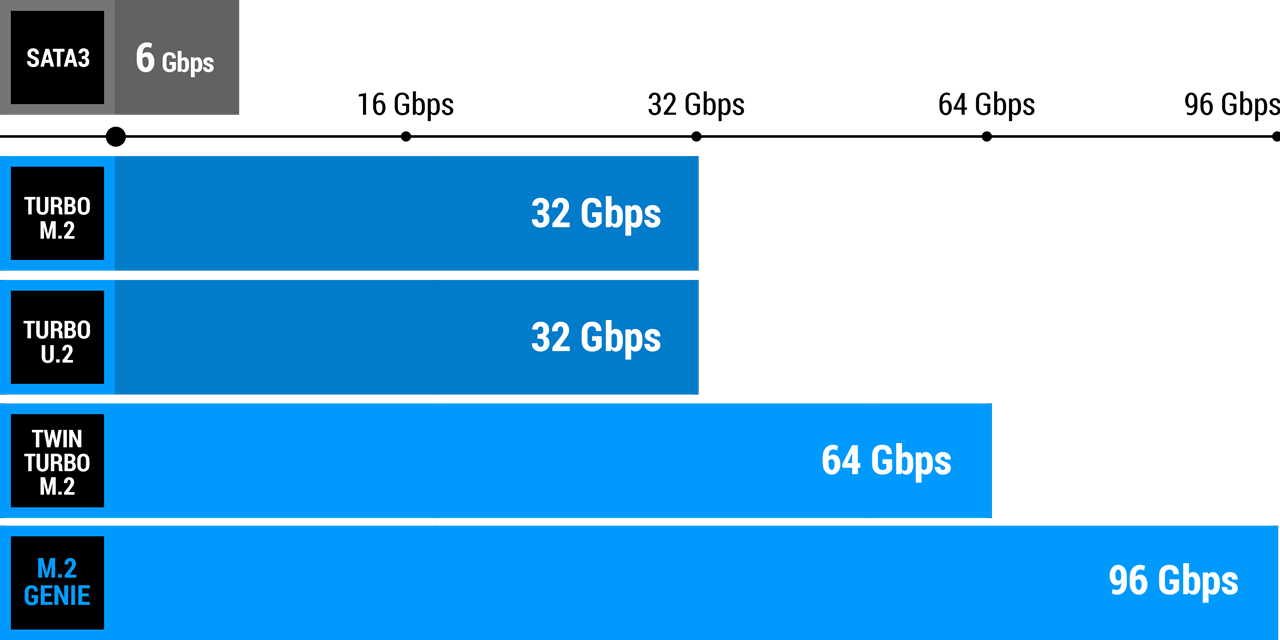

Enjoy a blazing fast system boot up and insanely quick loading of applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection. All of the next gen storage connectors support NVMe, the fastest storage standard in the world. Simply put, MSI GAMING motherboards offer the best of the best in storage options & performance. Instantly load your favorite games and always be the first on the battlefield with MSI.

m.2 SSD

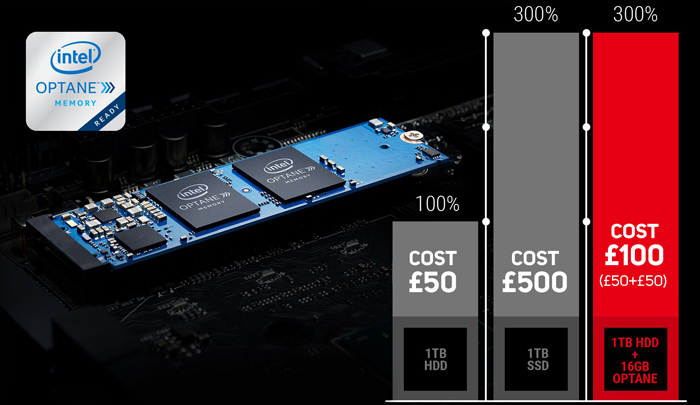

Intel® Optane™ Memory

Intel Optane Ready

Advanced performance with the Optane Cache Memory

Gamers and PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. All MSI 200 Series motherboards are ready for Intel® Optane™ Memory.

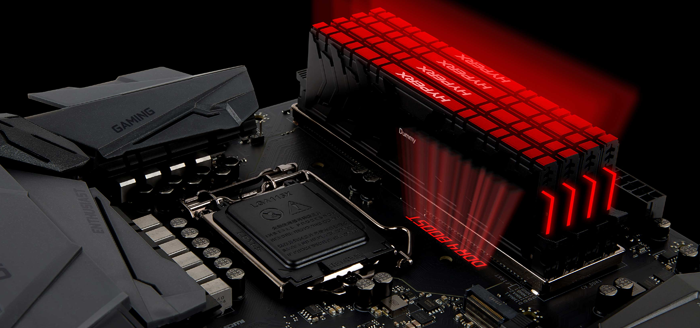

Unmatched Memory Performance

Performance Memory

Advanced performance with the Optane Cache Memory

MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files.

MSI Lightning USB

USB Type-C

Reversible Type-C Connection

Using multiple USB 3.1 devices has never been faster! Featuring the Lighting ASmedia 3142 USB 3.1 Gen2 controller, MSI motherboards offer never before seen USB speeds when connecting multiple USB devices at the same time. The Lightning USB connectors are covered with gold to ensure a bitter signal and performance. Also get all the performance benefits from USB 3.1 combined with the convenience of the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

Gaming Ethernet Connection

Intel Ethernet

Low Latency Gaming LAN

Designed with gaming DNA, Killer™ LAN is optimized for championship level online and LAN eSports. The Killer E2500 Intelligent Networking Platform, featuring Advanced Stream Detect 2.0, is built to provide maximum networking performance for online games and high-quality streaming media. Killer™ LAN automatically detects and prioritizes game traffic ahead of other network traffic for smoother, stutter-free in-game performance and a competitive edge.

MSI Motherboard LAN Protect

LAN Protection

Stable, Secure Networking

Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, the LAN Protect connector is designed to give you a reliable networking experience.

Professional Gaming Audio

Audio Boost 4

Amplify your In-Game Audio with Audio Boost

Built on years of experience in building motherboards dedicated to giving gamers true Hi-Fi sound. Audio Boost has developed into a high quality audio unit, offering a clear advantage over your opponents when gaming. Locate your enemies with your eyes closed using Audio Boost 4. ahimic Sound Technology has been famed for its quality and precision in projects undertaken by the Military and the Aeronautics Industry. Their experience in reflecting surround sound at the most immersive level allows you as a gamer to experience the next level in sound & gameplay. Unique features, including a sound tracker which visually shows where the enemies are making noise in game, truly allow you to get the upper hand on the battlefield.

Built on Everlasting Quality

Quality Components

Super Stable with the Highest Quality Components

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard. MSI uses Military Class 6 components, which is the latest evolution of the industries’ highest quality standard. These high quality components are shielded by the best protection to make sure your system runs smoothly under the most extreme gaming conditions.

TITANIUM CHOKE
Ti chokes run much cooler and deliver a 30% improvement in power efficiency, allowing for better overclocking and stability.

SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

DARK CHOKE
A special core design allows the Dark Choke to run at a lower temperature offering better power efficiency and stability.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 2-Digit debug code LED
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x BIOS FLASHBACK+ button
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x LED power input connector
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Killer E2500 (Gigabit LAN)
Rear I/O Connectors
  • 2 x Audio I/O
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 1 x USB 2.0 BIOS FLASHBACK+ port
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
MSI UK Support
Telephone:
08708200009
