Scan code: LN84385 Manufacturer code: Z370-A PRO

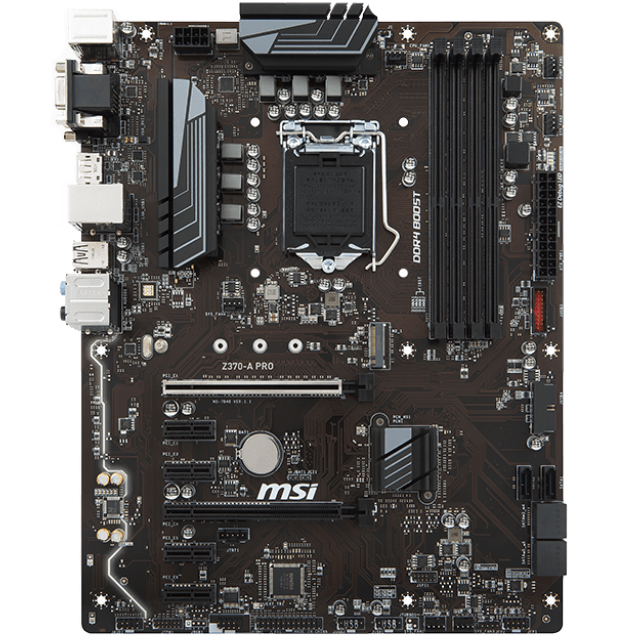

MSI Intel Z370-A PRO Coffee Lake ATX Motherboard

MSI Z370-A PRO, Intel Z370, S 1151, DDR4, SATA3, M.2, 2-Way CrossFire, Realtek LAN, USB 3.1 Gen1 A, ATX

Thumbnail 1 : MSI Intel Z370-A PRO Coffee Lake ATX Motherboard Thumbnail 2 : MSI Intel Z370-A PRO Coffee Lake ATX Motherboard Thumbnail 3 : MSI Intel Z370-A PRO Coffee Lake ATX Motherboard Thumbnail 4 : MSI Intel Z370-A PRO Coffee Lake ATX Motherboard
Scan code: LN84385 Manufacturer code: Z370-A PRO
RRP: £95.99
£89.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Aug 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Z370 Gaming Motherboard - MSI Z370-A PRO - Intel 8th Gen

z370 A Pro

BUILT FOR CONTENT CREATORS AND PROFESSIONALSCombining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.

Please note: Z370 Motherboards are ONLY compatible with Intel 8th Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z370Chipset

1151CPU Socket

8th Gen OnlyCompatible CPUs

ATXForm Factor

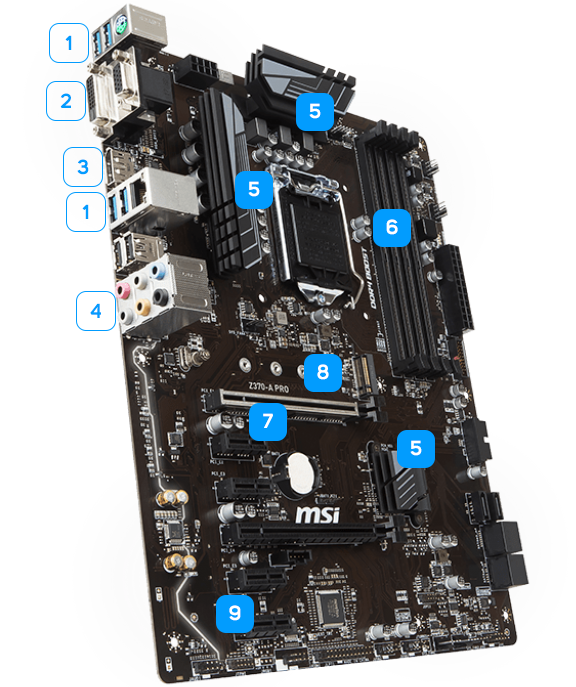

Features on the Z370-A PRO

features

1 4x USB 3.1 Gen1  2 DVI / VGA  3 Displayport  4 Golden audio jacks

5 Heavy plated heatsinks - Leading heatsink design, for maximum cooling

6 DDR4 Boost - Optimized traces and isolated memory circuitry

7 PCI-E Steel Armor - Protecting VGA cards against bending and EMI

8 Turbo M.2 - NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4

9 Audio Boost with amplifier - Optimized audio using the best components, 120 dB SNR 32-bit

Generate Your Own Money

mining

OPTIMIZED FOR CRYPTO CURRENCY MINING MSI PRO Series motherboards are optimized for crypto currency mining like Bitcoin, Litecoin, Ethereum and more. These motherboards come with more PCI expansion slots, perfectly placed so you can install multiple graphics cards simultaneously with ease. Optimized Power Design and special BIOS options ensure a rock solid system for long mining sessions to maximize efficiency and coin generation.

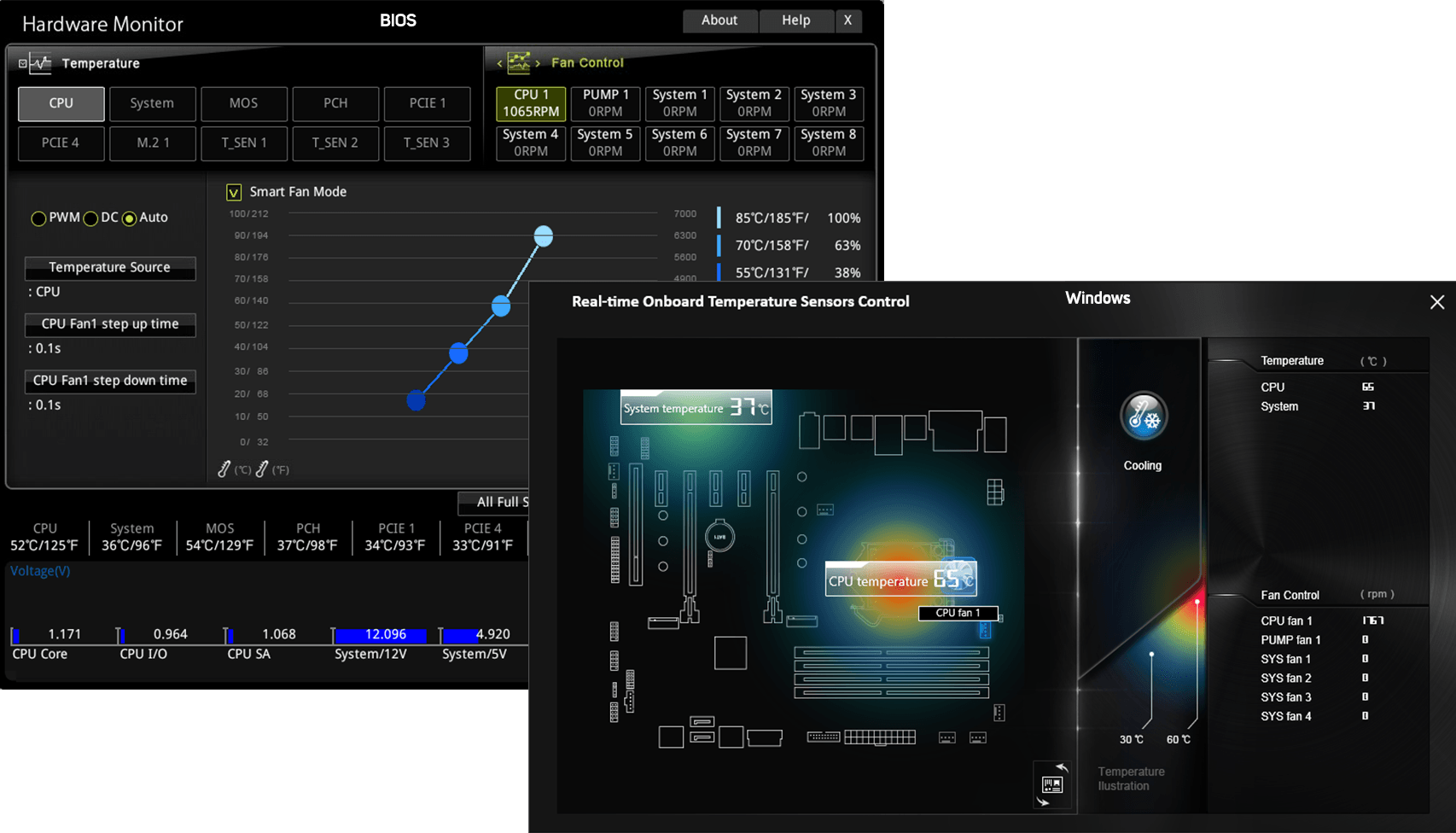

Complete Fan Control in Bios and Software

fan control

DC OR PWM MODE WITH HYSTERESIS Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence, giving you full control to set up a cool & silent system. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

4K UltraHD with Multi GPU

HDR

Get More Performance Gaming enthusiasts are always looking for more performance to get the ultimate experience. Using multiple graphics cards is a great way to find out just how good it gets. MSI motherboards fully support multi GPU technologies and have optimal PCI-E slot placement for the best thermal performance. Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.

Ultrafast M.2 Connectivity

m.2

Speed up with onboard M.2 up to 32Gbps Enjoy a blazing fast system boot up and insanely quick loading of applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection. With the easy M.2 Genie you can set up multiple SSDs in RAID 0 and get speeds up to 300% faster. X-Boost optimizes your SSDs to keep your system fast and maximize storage performance, saving you a lot of time when loading or transferring data. Start programs faster, load data faster and increase productivity.

m.2 SSD

Intel® Optane™ Memory

Intel Optane Ready

Advanced performance with the Optane Cache Memory

Intel Optane™ is a revolutionary non-volatile memory technology supported by Z370-A PRO. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost operates like a dedicated soundcard by being physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal possible. A bright border illuminated by LEDs showcases and protects the Hi-Fi audio unit.

Beyond VR Ready

VR

Complete your Immersion From the start of Virtual Reality, MSI has been deeply involved in making VR Ready hardware in each of its product lines. Whether it's a feature-rich motherboard, a framerate boosting graphics card or a blazing fast complete gaming system, a huge set of VR-supporting features awaits you. Both hardware and software need to be in tune for a smooth VR experience. One Click to VR makes it very fast and easy to get primed for VR. A single click sets all your key components to their highest performance and makes sure other software applications won’t impact your virtual adventure.

Unmatched Memory Performance

memory

Advanced performance with the Optane Cache Memory MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Designed for Limitless Tuning

packed with smart features Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

overvoltage protection

OVERVOLTAGE PROTECTION Prevents potential short-circuit damage to the CPU and other critical components.

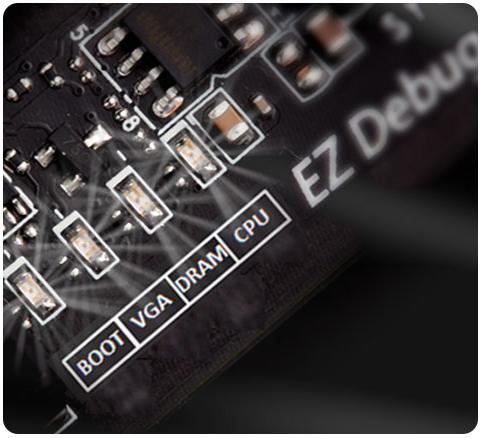

debug


EZ DEBUG LEDRun into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

Maximize Your USB Device Performance

usb

X-BOOST YOUR USB PERFORMANCE Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds! When enabled, X-Boost optimizes your devices for even better transfer speeds and can provide up to 30% increase in USB performance, saving a lot of time when transferring data. MSI Super Charger USB ports charge any connected device faster and delivers more power than regular USB ports to your smartphone, tablet, USB peripherals or other battery-powered gear. The USB ports on MSI motherboards are shielded by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

Apps to Greatly Improve Efficiency

performance enhancing toolsWith years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

X-Boost

X-Boost Your Storage This unique and exclusive software allows you to boost the performance of any storage or USB device connected to your system. Simply use X-BOOST’s Easy or Advanced mode to tune your system for up to 30% increased speeds, higher system responsiveness and faster loading of data.

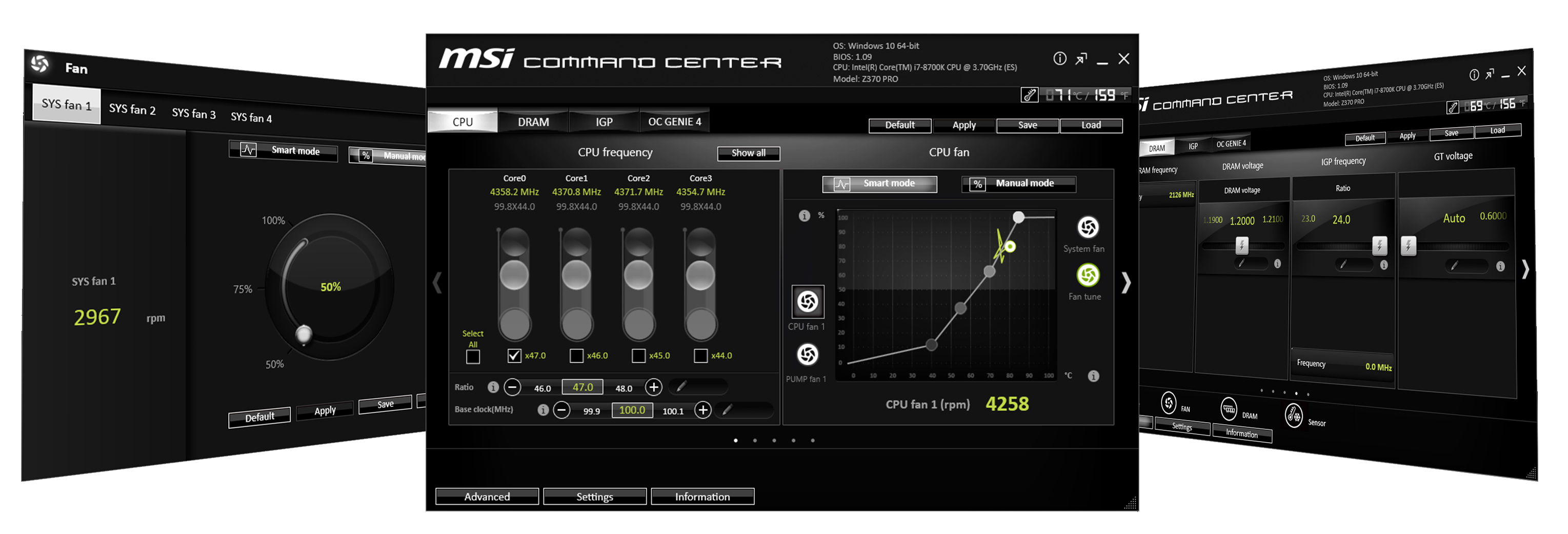

command centre

Take Command Of Your System MSI’s Command Center software is the perfect tool to get the most out of your motherboard. With an intuitive interface, Command Center allows you to tune settings to increase system stability, maximize performance and optimize your system’s cooling features.

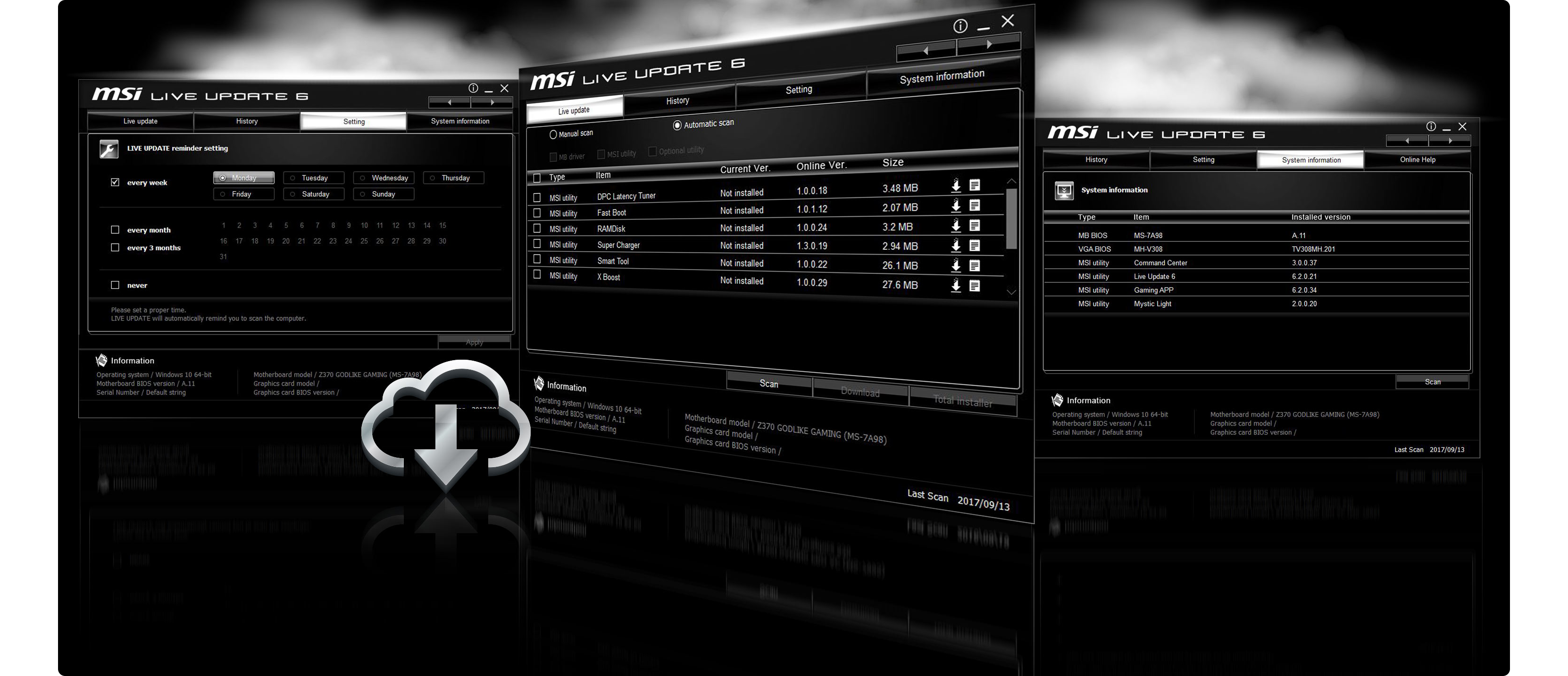

live updates

Always Up-To-Date Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your game.

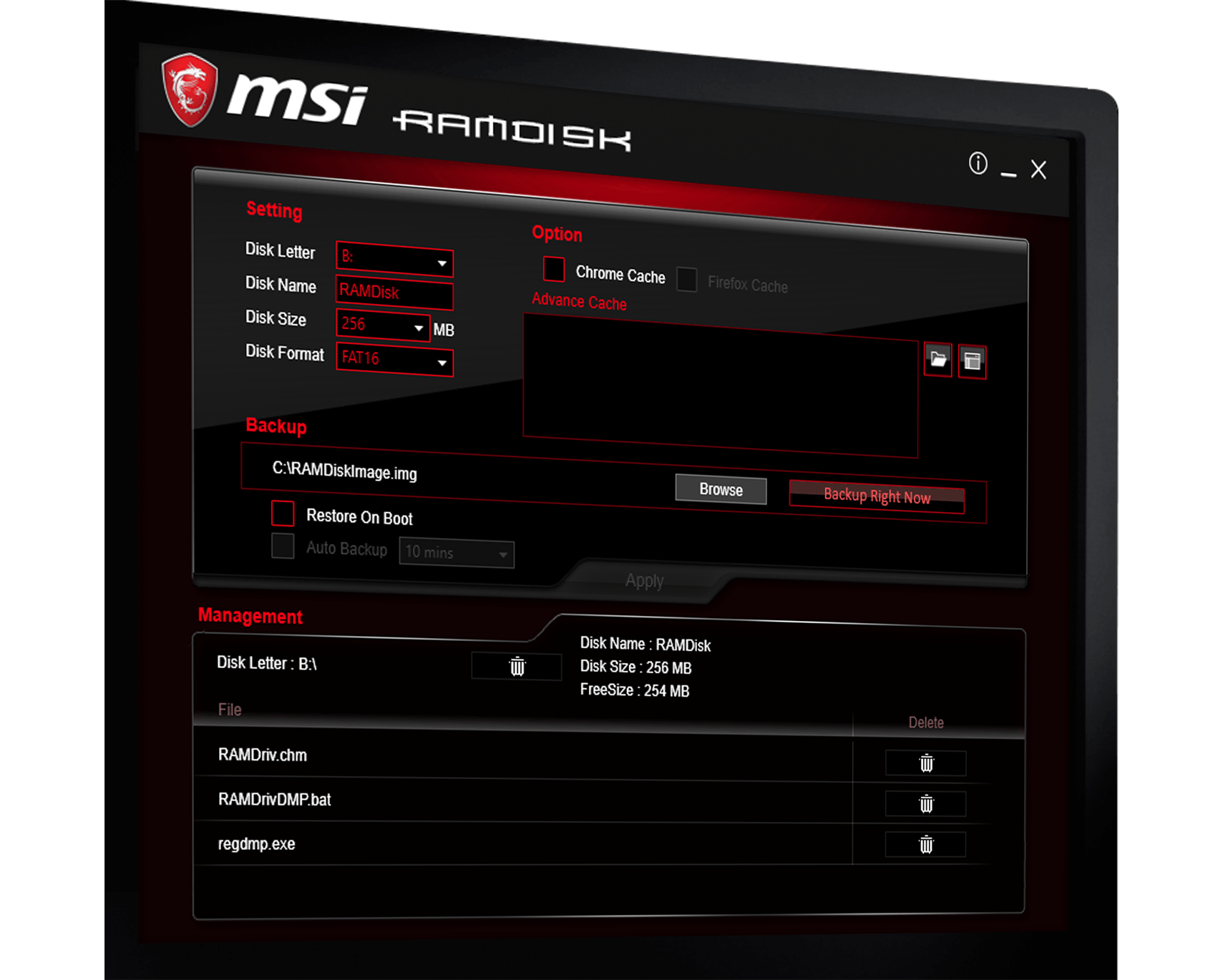

ramdisk

SSD not fast enough? Try MSI® RAMDISK MSI motherboards include RAMDisk, allowing you to create a virtual drive from your system RAM memory. Instantly load your software, speed up your browser or your page file to significantly speed up your system!

Fortify Your System With PCI-E Steel Armor

pci armor

Built on everlasting quality MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference to provide a pure and reliable signal for the best performance, even when turning it up a notch. MSI motherboards feature Double ESD protection with double layer grounding around the motherboard mounting holes, preventing Electrostatic discharge (ESD) surges from damaging the motherboard.

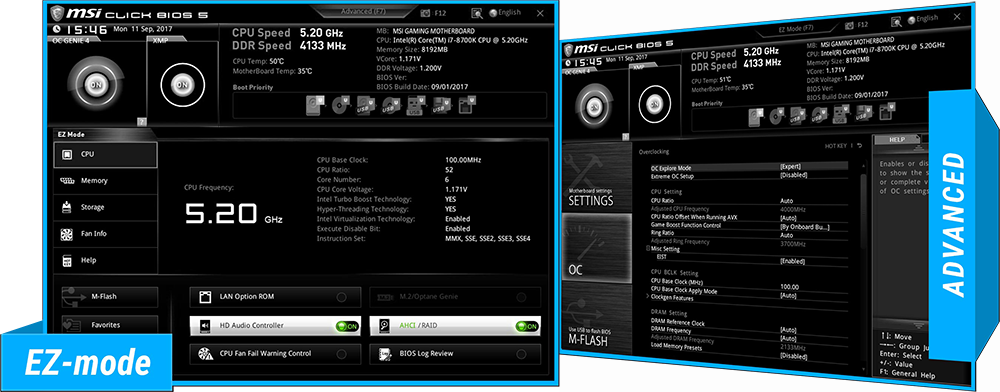

User-Friendly BIOS

bios

EASY MODE FOR QUICK TWEAKS MSI have made sure the BIOS contains all the latest options and is easy to use for everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your system to deliver reliable maximum performance. When you just want to get back to work, EZ-mode presents you with basic BIOS settings and functions for some quick adjustments. If you feel like spending more time fine-tuning options to boost your system’s performance, the Advanced mode is the way to go. Can't find a specific BIOS setting? Don’t worry, a permanent search option in the top right corner can be used to find what you need whilst 'My Favorites' gives easy access to selected Favorite settings, supporting up to 5 groups of Favorites.

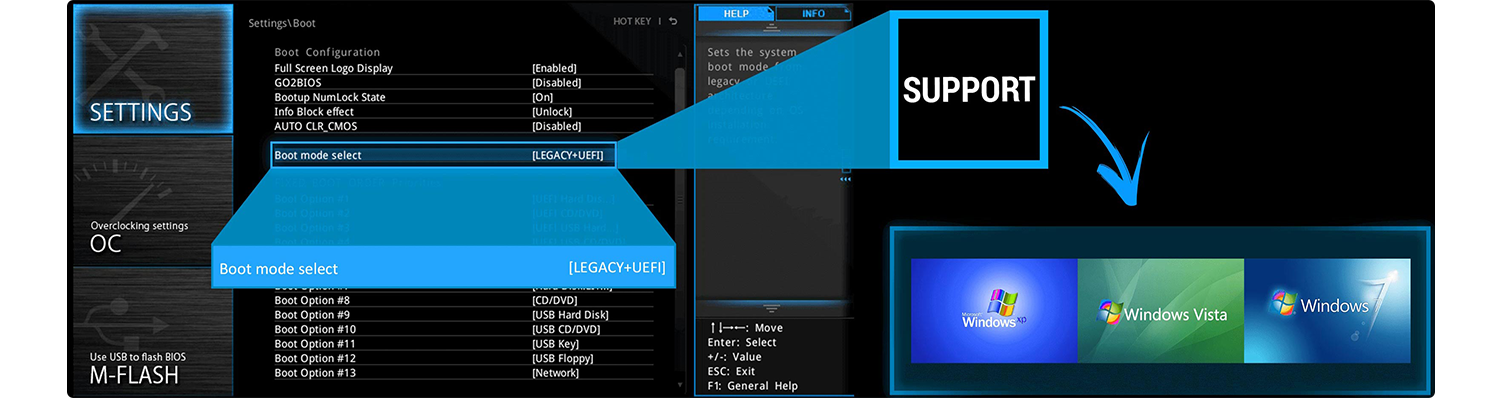

UEFI & LEGACY BIOS Support

bios support

Hotkey for Flash BIOS MSI motherboard support both Legacy (MBR) and UEFI (GPT) boot. In the legacy mode, the UEFI firmware functions as a standard BIOS instead of UEFI firmware. This can help improve the compatibility with older operating systems that weren’t designed with UEFI in mind — Windows 7, for example. Updating your motherboard BIOS will not be a nightmare anymore. MSI motherboards are easily for entering Flash BIOS menu, just press CTRL+F5 and one click for updating your motherboard BIOS.

Built on Everlasting Quality

Quality Components

Super Stable with the Highest Quality Components Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard. MSI uses Military Class 5 components, which is the latest evolution of the industries’ highest quality standard. These high quality components are shielded by the best protection to make sure your system runs smoothly under the most extreme conditions.

TITANIUM CHOKE Ti chokes run much cooler and deliver a 30% improvement in power efficiency, allowing for better overclocking and stability.

SOLID CAP With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

DARK CHOKE A special core design allows the Dark Choke to run at a lower temperature offering better power efficiency and stability.

Specifications
Core Specifications
Edition
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.2
  • DVI-D
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x Parallel Port (LPT) Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 3 x Audio I/O
  • 1 x D-Sub (VGA) Out
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
MSI UK Support
Telephone:
08708200009
Loading Please Wait

Please wait . . .

Reviews
MSI Z370-A PRO, Intel Z370, S 1151, DDR4, SATA3, M.2, 2-Way CrossFire, Realtek LAN, USB 3.1 Gen1 A, ATX is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Nice looking board! As motherboards go this once is fine. The BIOS is more advanced than I am used to due to the fact I haven't replaced my motherboard in about 9 years! There seem to be a lot of options and the Auto Update tool works well. I didn't realise the board came with lights so that was a nice surprise!
