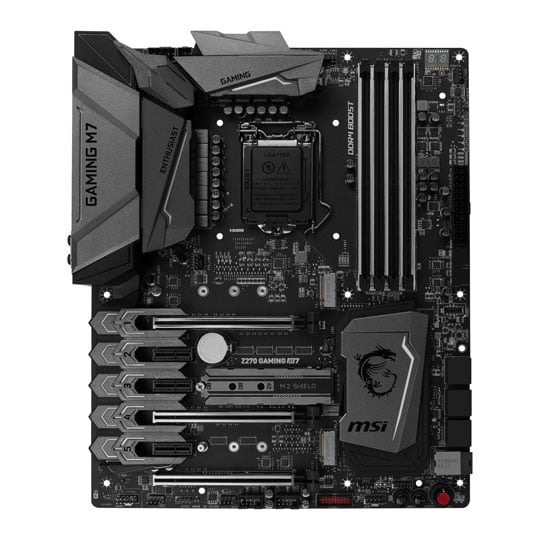

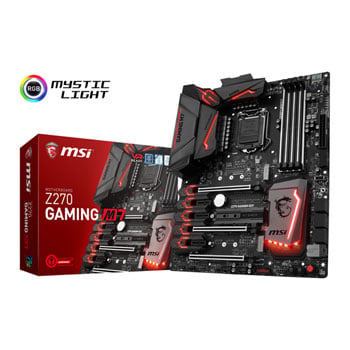

MSI Z270 Gaming M7 Kaby Lake SLi/CrossFire ATX Motherboard

MSI Z270 GAMING M7, Intel Z270, S 1151, DDR4, SATA3, U.2, M.2, 2-Way SLi/3-Way CrossFire, GbE, USB 3.1 Gen2 A+C, ATX

MSI
Scan code: LN77631 Manufacturer code: 911-7A57-01S Request call
£222.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 29th Jun 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Get up to £94 cashback with MSI gamingWhen you purchase a select msi gaming graphics card and gaming motherboard. Purchasing period: 14th APR 2017 - 30th June 2017. Claiming period 30-60 days after purchase date.

To claim & read full details

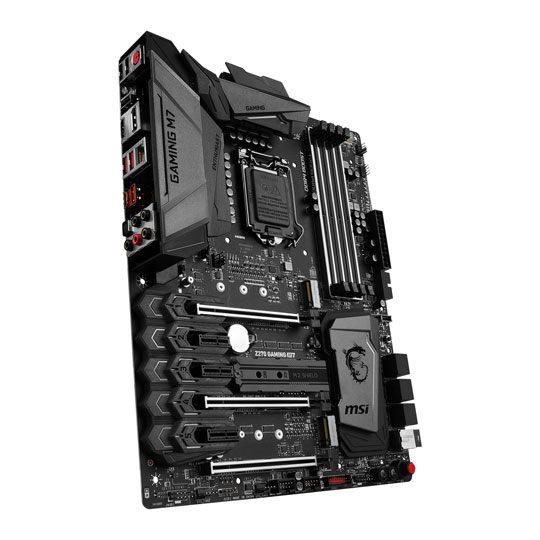

Kaby Lake, High Performance Motherboard. MSI GAMING M7

Gaming M7 Motheboard
MSI Z270 Boasts Flawless supremacy with the GAMING M7

This Z270 motherboard boasts some incredible gaming power potential. The GAMING M7 from MSI features the latest in motherboard protection, speed technologies, ease-of-use and style among other impressive aspect. Supporting 7th Gen processors, DDR4 memory and equipped with two M.2 slots it’s a motherboard capable of bringing out the best in next-generation gaming. Experience intense audio, armoured components and game enhancing technology all through the GAMING M7.

Intel Z270
Chipset

1151
CPU Socket

ATX
Form Factor

Motherboard with RGB Lighting

Mystic Light
Personalize your Gaming Rig with Mystic Light

Customize and set up your own color scheme with RGB Mystic Light. Select any of the colors from the palette using your smartphone or the MSI Gaming App to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

Compatible Mystic Light Brands

Fully Control PCB Fan Headers

Fan Headers

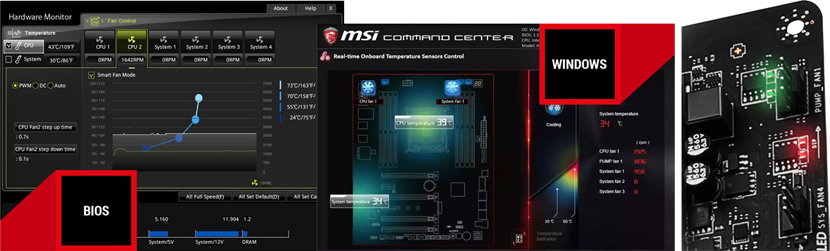

Fan Headers with LED to indicate PWM/DC mode

MSI FAN headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Z270 Game Boosting Tech

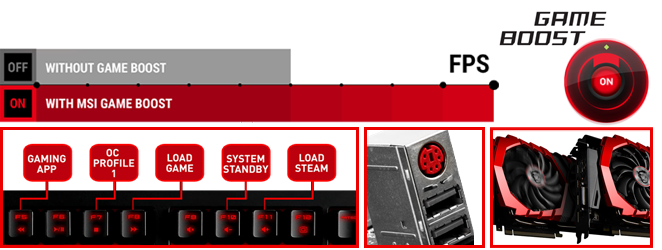

Game Boosting Tech
M7 is your in-game advantage

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

X-Boost & OPTANE Power

X-Boost and Optane

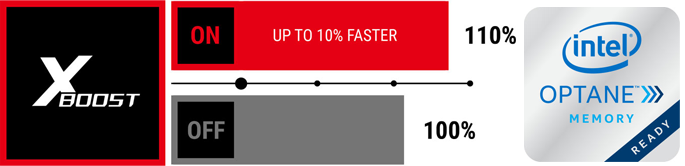

X-Boost your Storage Performance

XBoost - When enabled, X-Boost auto-detects and optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.
Intel Optane Ready - This new technological marvel brings game-changing performance to memory and storage devices. Allow Optane caching to boost your storage devices for an even faster gaming system!

MSI M.2 Performance Power

M-2 Protection

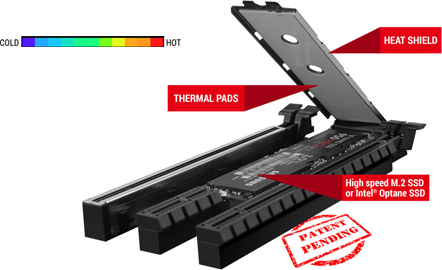

Protect & Cool your M.2 Device with M.2 Shield

Connect your M.2 device safer & easier while keeping it cooler for the best performance using the unique M.2 Shield. MSI M.2 Shield features cooling pads to lower the temperature of your M.2 device and avoid any possible throttling, causing it to slow down. Be sure your system stays blazing fast with M.2 Shield!

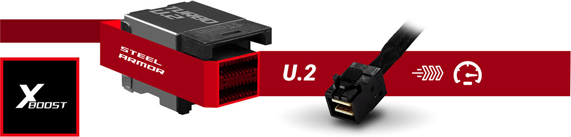

U.2 Connector with Steel Armor

U-2 Protection
Next Generation SSD Ready

Next generation SSDs demand a next generation connector. U.2 delivers just that with performance up to 32 Gb/s per device. The U.2 connector on this MSI GAMING motherboard also features Steel Armor for enhanced protection.

VR Ready MSI Z270

VR Ready
Immersive Virtual Reality Capabilities

VR Ready - Want the best of the best VR experience without any compromise? Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid, smooth and realistic experience in which content truly comes alive.
VR Boost - Traditional USB ports can suffer signal drops, significantly impacting performance of connected devices. VR Boost, only on MSI, is a smart chip that ensures a clean and strong signal to a VR optimized USB port, giving you an enjoyable VR experience.

Professional Gaming Audio

Audio Boost 4

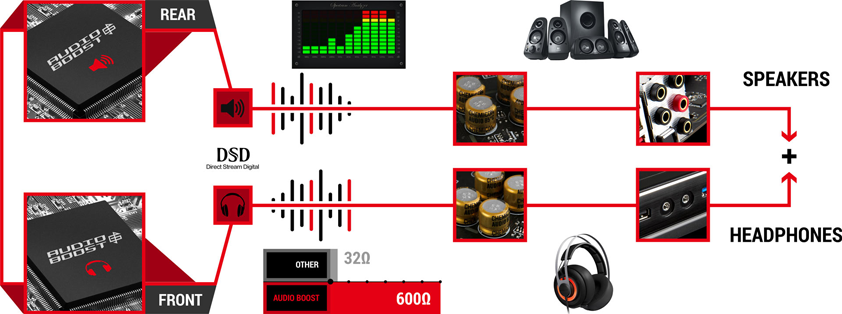

amplify your in-game audio with audio boost 4 pro

Like a dedicated sound card Audio Boost offers two independent audio processors with dedicated amplifiers to allow gamers to play music on a speaker system, while playing in-game amplified sound on headphones at the same time!

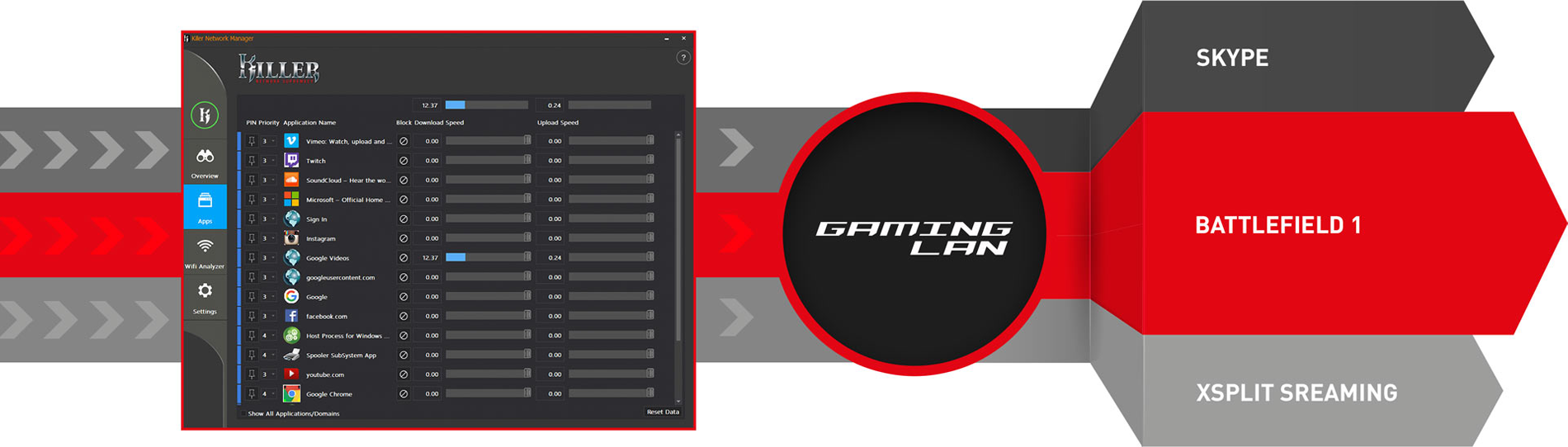

MSI Gaming LAN

Dominate games with the lowest latency

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
Click image for more information

DDR4 Memory Performance

DDR4 Memory Performance
Unmatched Signal Purity & Compatibility

Memory Signal Purity - MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
Best Compatibility - Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

MSI Lightning USB

DDR4 Memory Performance DDR4 Memory Performance
USB Device with maximized performance

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!
MSI Lightning USB see in RED other USB in GREY.

High-Quality Components

DDR4 Memory Performance
Built on everlasting quality

Only the finest quality components and latest innovations are used. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z270
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2600(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Dual Realtek ALC1220 Codec 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 0~5 / M.2
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • NVMe Boot (via U.2 Connector)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 2-Digit debug code LED
  • 1 x 2-pin Discharge jumper
  • 1 x 2-pin OC Force enter BIOS jumper
  • 1 x 2-pin OC retry jumper
  • 1 x 2-pin Slow mode jumper
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x Low Temperature Booting Jumper
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x U.2 Connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x Water Pump Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Killer E2500 (Gigabit LAN)

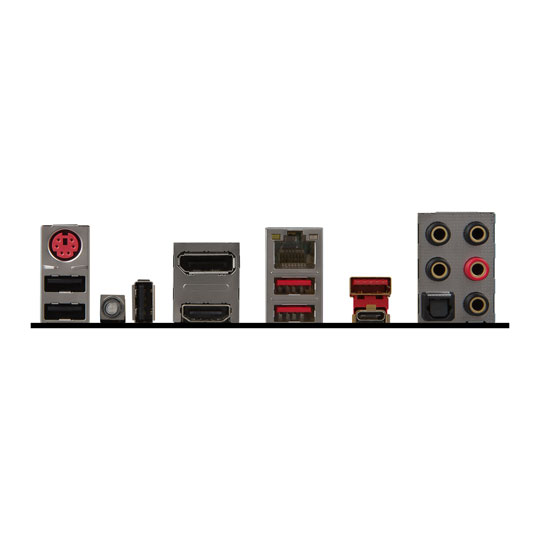

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 3 x USB 2.0
  • 2 x USB 3.1 Gen1 Type A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
MSI Z270 GAMING M7, Intel Z270, S 1151, DDR4, SATA3, U.2, M.2, 2-Way SLi/3-Way CrossFire, GbE, USB 3.1 Gen2 A+C, ATX is rated 5.0 out of 5 by 6.
Rated 5 out of 5 by from Not just another MSI board! Well where to start, I know this is a review of a MSI motherboard. First of all I would like to comment on the buying experience. I have used SCAN a few times and just need to say, That I ordered this on a Friday evening. It was sent out on saturday, due for delivery on Monday. However to my joy I got an email Sunday morning that it was out for delivery! So Sunday was a day spent replacing my old motherboard out for this beast. Right on with my review of the Z270 Gaming M7. First impressions when opening the box, where 'my god, when is some company going to change these anti-static bags'? Lets face it, these days you get a power supply in a fake velvet bag! Anyway the board, first impression are. It looks aggressive just in your hands, also the other thing that hits you is the amount of metal reinforcement. Not only are all 3 pci x 16 slots surrounded, but the ram slots are too! The angular plastic shrouds that cover the most part of the motherboard, are black matte with led's. What has impressed me the most, is the m.2 bays of which there are 3! (just more slots to fill) These can be run in raid 0, as if they need to run any faster? Not to sure about the m.2 cover, I'm still undecided of or if there will be any benefit to temps? The board support 2 way SLI or 3 way CROSSFIRE, SLI bridge is included in the box (standard). which brings me on to the contents of the box. 4 sata cables, sli bridge, driver cd and manuals. oh and a MSI badge. Only time will tell whether I made the right choice of board, but first impression are good. I never have been one for overclocking , even though I have a full custom water loop. However this board has a dial on it, that does it all for you! AMAZING. All the mystery of overclocking gone in the twist of a knob. Go on buy it, you know your gonna.
Date published: 2017-02-02
Rated 5 out of 5 by from Best Motherboard available in January 2017 MSI Z270 Gaming M7 – one of the best motherboards money can buy nowadays. Based on the latest Intel Chipset Z270, it provides 4 DDR4 Slots, which support the staggering 64GB of Ram Memory, meaning that even the most memory hungry application will run without any issues. The motherboard also comes with support for the latest generation of Intel® Core™ processers, giving you the boost you need when you need. On the other hand, it still supports the previous 6 generation Intel ® Core™ processors, giving you the ability to upgrade from your old LGA 1151 motherboard to this one, without spending more money. Bundled with SSD and overclocked Intel® Core™ i7 7700k @ 5.2Ghz, will provide unmatched performance both in gaming and in heavy applications. Another advantage of this motherboard is the m.3 shield, which is designed to reduce the heat which is produced by the SSD memory, thus improving the overall performance of the product. If you are lucky enough to purchase your new motherboard before 5th February 2017, you will be up for a treat as MSI will give you a free 256GB Intel® Series 6 SSD drive! This is not everything, you can also get a free copy of Ubisoft`s latest game – “For Honor” RRP - £40, even before it is released on the market. If you are hardcore gamer you can use the 3x PCIe x16 slots to install your favorite video graphics card, boosting your overall experience to the maximum level.
Date published: 2017-01-26
Rated 5 out of 5 by from Great motherboard On opening the box my initial impressions for this motherboard are that it is well made and has a solid feel. I like the gun metal look, which is a bit different to standard black or white options, but is still neutral enough to suit most builds. For those who want to customise the look there is the rgb lighting. For me, one of the main advantages of the motherboard over other brands is the number of internal usb headers. I have a number of devices that use these, so having two usb 2.0 and two usb 3.0 headers was a big plus. It also has a usb 3.1 header and three m.2 slots for future expansion. I also liked the audio specs. Overall this motherboard has a solid feature and software set that make it a great all round package.
Date published: 2017-01-21
Rated 5 out of 5 by from Amazing motherboard. For the past of 20 years I’ve been having many Intel and AMD motherboards. I have recently upgraded from Z170 motherboards. I had 2 Gigabyte and 1 ASUS. I really liked them but I wanted to see what is different on z270. Well, on the first look not much but... The new chipset gives you access to new Intel Optane technology and more PCI-E lines. It could be very useful for anyone who is using multi GPU set ups and M.2 drives at the same time. On MSI M7 are 3 Turbo M.2 PCI-E x4 Gen3 up to 32Gb/s and M.2 shield (!) to prevent overheating- great idea for the M.2 drive under the graphics card. Build quality is outstanding and you can really feel it is a high quality motherboard. There are shields on all PCI-Ex16 and memory slots. Power section is very good (8+2+1 phase design), memory section is fully isolated for better overclocking. Yeah, overclocking... It looks that MSI Gaming M7 is build for that. It can be done in BIOS (btw in my opinion MSI BIOS is the best one, even better than Asus or Asrock and way better than Gigabyte), using Command Centre or Game Boost knob (8 different presets) on the motherboard (no need to go to BIOS to overclock CPU!). Nice and easy. I used to use i5 6600K. No matter what I’ve done I couldn’t go beyond 4.4 GHz. On MSI M7 I used the same CPU, memory etc. and I was able to reach 4.8 GHz fully stable with easy. It reached even 5GHz (!?) but Prime95 was crashing. Sweet. There is also a significant improvement to sound card (Audio Boost 4) thanks to new Realtek ALC 1220. I am not a big fan of integrated sound cards but this one is really good - close to my Sound Blaster Z. There are 2 (yes TWO!) sound cards with amps. It is possible to watch or listening something on the speakers and play games using headphones in the same time. Crazy. MSI M7 is a very good looking motherboard. Mate black and (all!) heat sinks have RGB LEDs (RGB Mystic Light): 7 colours and 5 effects. If this is not enough you get RGB LED extension cable 80cm. There are also very useful onboard LEDs: EZ debug LEDs, XMP, fan etc. One quick look gives information about status of every important component. The debug code LED after the system has fully booted into the OS displays current CPU temperature. Love it! There is also new USB 3.1 internal connector (Gen2 Type-C), U.2 ports, USB Flashback+ to restore corrupted BIOS etc. Are they any cons? Well, yes - it not cheap but it is an amazing motherboard with tons of features. Fully recommended!
Date published: 2017-01-20
Rated 5 out of 5 by from An excellent product Its been a few years since I last built a PC and was astonished at the quality of this board. At the moment combined with the free 256gb intel M2 SSD it represents outstanding value for money. I really can't recommend it enough. Grab yourself a bargain while the promotion is still on!
Date published: 2017-01-16
Rated 5 out of 5 by from QUALITY NEUTRAL BORED GREAT RGBS This is a great bored with some amazing features it has it all. Bright glowing RGBS Reinforced steel armor on DDR4,PCI; M.2 port's. It even comes with 3 m.2 with ano one shield to stop thermal throttling. The audio is perfect with golden jacks to make sure you get the perfect gaming experience. This bored can reach 5ghz with ease and over clock memory to 4000mhz. Optane ready to make your Storage drives that little bit faster also X Boost. Has gaming Hot keys to give you that edge over your opponent in game. This bores has one of the best lan ports when it comes to good connection's this bored has it. Great aesthetic's would match in any case.
Date published: 2017-01-14
  • y_2017, m_6, d_26, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_6
  • loc_en_GB, sid_77631, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

does this board have the dual lan inputs

would like to play with this maybe moving over from Asus formula Z and amd 9590 running at 4.8 ghz will their be an astonishing difference ? you know like when ssd drives first hit the pc they left you gob smack at the speed or will it be more subtle?
Asked by: Kinnabraw
Hello, This has only one LAN input. Regards,
Answered by: LizN
Date published: 2017-02-06
