Scan code: LN89136 Manufacturer code: X470 GAMING PLUS

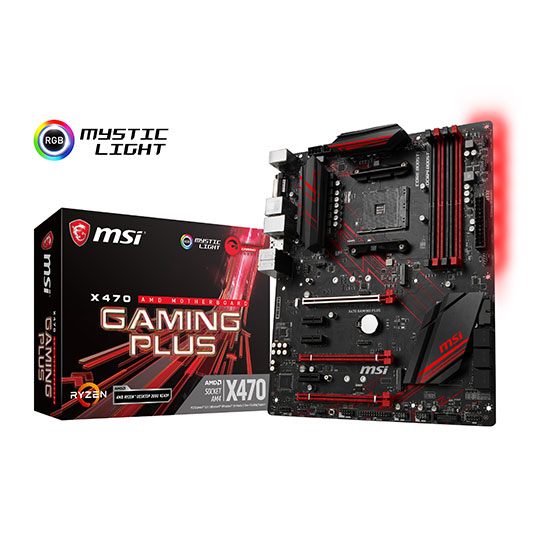

MSI AMD Ryzen X470 GAMING PLUS AM4 ATX Motherboard

MSI X470 GAMING PLUS, AMD X470, S AM4, DDR4, SATA3, Dual M.2, 3-Way CrossFire, GbE, USB 3.1 Gen2 A, ATX

Thumbnail 1 : MSI AMD Ryzen X470 GAMING PLUS AM4 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen X470 GAMING PLUS AM4 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen X470 GAMING PLUS AM4 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen X470 GAMING PLUS AM4 ATX Motherboard MSI AMD Ryzen X470 GAMING PLUS AM4 ATX Motherboard : video thumbnail 1 MSI AMD Ryzen X470 GAMING PLUS AM4 ATX Motherboard : video thumbnail 2
Scan code: LN89136 Manufacturer code: X470 GAMING PLUS
£129.98Item overdue since 16 November 2018
Pre order
From £11.67 / month (APR 14.9%)
Monthly Payment: £22.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £135.33
Monthly Payment: £11.67
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £140.02
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview MSI X470 GAMING PLUS AMD AM4 ATX Motherboard.

Turbo M.2
Running at PCI-E Gen3 x4 maximises performance for NVMe based SSDs.

Audio Boost
Reward your ears with studio grade quality for the most immersive audio experience.

8+4 Pin Power Supply
By providing 8+4 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance.

Mystic Light RGB
Personalize your PC with 16.8 million colours / 10 effects controlled in one click with MYSTIC LIGHT APP or a mobile device.

Core Boost
With premium layout and optiomized power design to support more cores and provide better performance.


Supports AMD® RYZEN™ Desktop Processors and AMD® A-series / Athlon™ Processors for socket AM4
Supports DDR4-3466+(OC) Memory
DDR4 Boost: Give your DDR4 memory a performance boost
Mystic Light and Mystic Light Sync: 7 colors / 7 effects in one click. Synchronize other RGB solutions for customization.
Lightning Fast Game experience: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2
Audio Boost with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 3-Way AMD Crossfire™
VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance.
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
EZ Debug LED: Easiest way to troubleshoot
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players



DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.

EZ Debug LED
Easiest way to troubleshoot.

X-Boost
Software that auto-detects and allows you to boost the performance of any storage or USB device. Features https://www.msi.com/Motherboard/X470-GAMING-PLUS/Specification
Specifications
Core Specifications
Edition X470 GAMING PLUS
Form Factor ATX
CPU Socket AM4
Chipset AMD X470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 3466+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 2.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 6 x SATA III - 6Gb/s
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Gigabit LAN
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 2 x USB 3.1 Gen2 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
Loading Please Wait

Please wait . . .

Reviews
MSI X470 GAMING PLUS, AMD X470, S AM4, DDR4, SATA3, Dual M.2, 3-Way CrossFire, GbE, USB 3.1 Gen2 A, ATX is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Fast!!! Bought this with ryzen 5 2600x cpu and 16gb ddr4 corsair ram at 3000MHz used with my existing nvidia 1060 6 gb and has trippled my frame rates in cod WW11, was around 60 fps now hits 200 fps. Easy to setup only problems was trying to reactivate existing win 10 on existing C drive, best to format hard drive to do fresh install.
Date published: 2018-11-09
Rated 5 out of 5 by from Great Board I needed a Ryzen 2600 compatible board after Amazon supplied a Motherboard that was not compatible worked straight away with no updates required
Date published: 2018-06-12
Rated 5 out of 5 by from MSI X470 GAMING PLUS Bought this motherboard as I didn't want to buy a b350 board and go through the palaver of updating the bios to recognise a ryzen 5 2400g apu. very good quality board with plenty of usb ports and fan connections. Bios is pretty simple and easy to follow in my eyes. running with: ryzen 5 2400g cpu 16gb ddr4 corsair ram at 3000MHz 128gb SSD+4tb Seagate at 7200rpm drive eclipse p300 case Eva 600 watt power supply msi gtx1060 6gb card.
Date published: 2018-05-21
  • y_2018, m_11, d_15, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_89136, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Is this compatible with the Ryzen 5 2600x processor?

Asked by: catflapninja
looking at the msi home page it says it is.
Answered by: chrisgeeza
Date published: 2018-07-21

Max size CPU cooler

What are the max dimensions for CPU cooler?
Asked by: JesseSixx
Hello, The motherboard does not have any specific limitations on the CPU cooler besides the socket type. Regards,
Answered by: JackB
Date published: 2018-09-18
