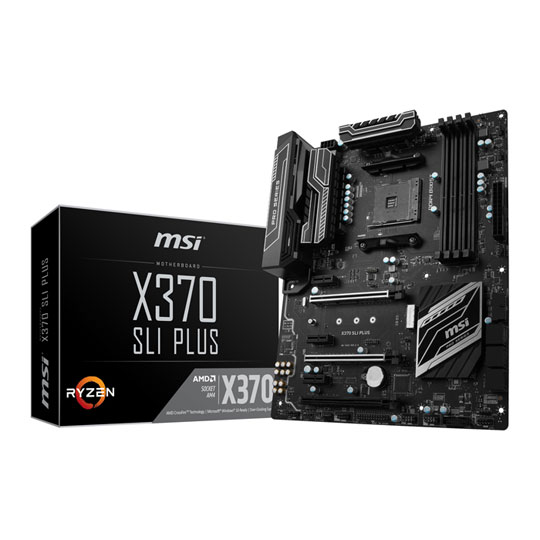

MSI AMD AM4 Ryzen X370 SLI PLUS ATX Motherboard

MSI X370 SLI PLUS, AMD X370, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way SLi/3-Way CrossFire, GbE, USB 3.1 Gen2 A+C, ATX

MSI
Scan code: LN79805 Manufacturer code: X370 SLI PLUS Request call
£149.99Item due on 27 March 2017
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

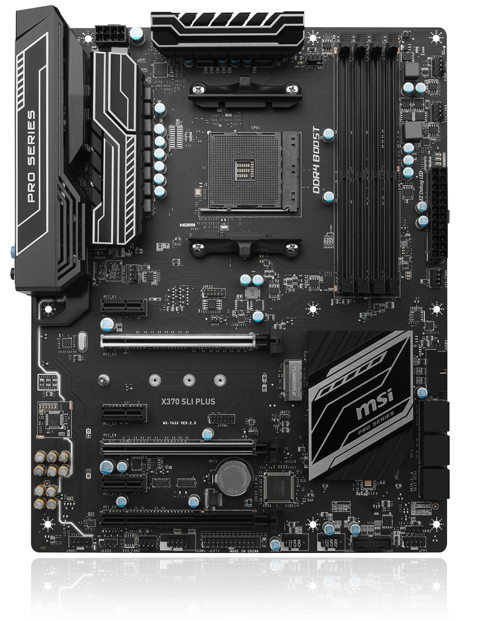

Product Overview X370 SLI PLUS: Stronger Than Steel

Fully Controllable Fan Headers
MSI FAN headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Multi GPU Support
Professionals and enthusiasts strive for the best performance to make their systems faster. MSI motherboards fully support multi GPU technologies. Optimal PCI slot placement allows for the best fit and usage conditions to ensure the best thermal conditions.

Extreme Storage Performance: Turbo M.2
Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection!

X-Boost Your Storage Performance
When enabled, X-Boost auto-detects and optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.

Professional Sound Quality
Like a dedicated sound card Audio Boost offers a HD audio processor, a dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest HI-FI audio signal.

• Isolated Audio with LED Line.
• Chemi-Con Audio Capacitors.

Professional Networking with Bandwidth Management
The high quality Gigabit LAN adapter is optimized for professional and multimedia use with outstanding performance to deliver a secure, stable and fast network connection.

Unmatched Memory Performance
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.

Best Compatibility
Optimized traces, a fully isolated memory circuitry and long list of memory compatibility testing ensures perfect stability and performance, so you never have to worry about your system crashing during heavy workloads.

Maximize Your USB Device Performance
Transfer your favourite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

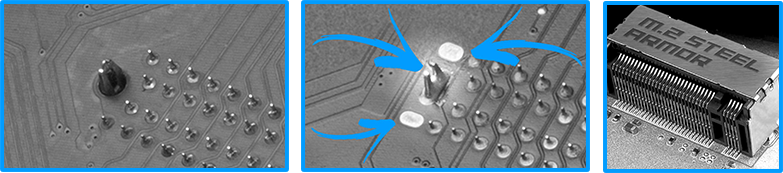

Built On Everlasting Quality
Only the finest quality components and latest innovations are used. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard. Features • Supports AMD® RYZEN Series Processors and 7th Gen A-series / Athlon Processors for socket AM4.
• Supports DDR4-3200+(OC) Memory.
• DDR4 Boost: Give your DDR4 memory a performance boost.
• VR Ready: Best virtual reality game experience without latency.
• Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience.
• Multi-GPU: With Steel Armour PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™.
• EZ Debug LED: Easiest way to troubleshoot.
• Lightning Fast Game Experience: Turbo M.2, Steel Armour, Lightning USB 3.1 Gen2.
• Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click.
• Mystic Light Extension: Personalize your rig, extend the RGB LED experience.
• X-Boost: Great tool to boost your USB & Storage performance.
• Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency.
• OC Genie 4: Award-winning BIOS with high resolution scalable font, favourites and search function.
• GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.
• WHQL Certified for Windows 10.
Specifications
Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD X370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 3 x Audio I/O
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
