MSI PRO DP180 14A Intel Core i7 Mini PC for Office Deployment

MSI PRO DP180 14A, Mini PC, Core i7-14700, 16GB DDR5, 1TB SSD, 2.5GbE, Wi-Fi 6E / BT 5.3, USB 10Gbps, Win11 Pro
MORE INFO
MORE INFO

Scan code: LN166766 Manufacturer code: PRO DP180 14A i7 14700 FS 16GB 1TB W11P
£939.98
£5.48 Next day delivery
Order now and get it tomorrow, Wed 8th Jul
Add To Basket
Get it Tomorrow, 08 JulIn stock
Pay in 3 interest-free payments of £313.33

Email me when the availability or price changes

  • By DPD On 8th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £32.92 / month (APR 16.9%) for 36 months or 0% for 4 months
  • With a 10% deposit from just £23.48 / month (APR 15.9%)

PRO DP180 14A Intel Core i7 Mini PC from MSI

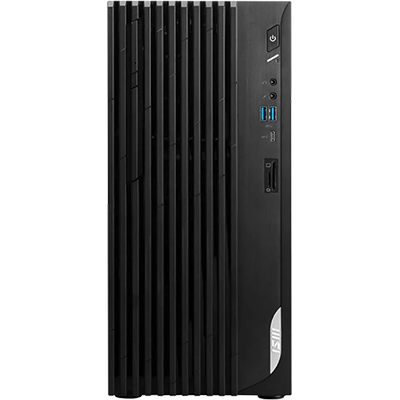

Hero Image of MSI Pro DP180 Mini PC

Your Window to the World The MSI PRO DP180 14A is a compact business desktop built with desktop-grade hardware, configured with an Intel Core Intel® Core™ i7 14700, 16GB DDR5 SO-DIMM and a 1TB PCIe NVMe M.2 SSD. It’s aimed at professional environments that need sustained performance, wide device compatibility, and systems that can be upgraded and secured over long deployment cycles.

Intel Core i7-14700Processor

Intel UHD Graphics 770Graphics Chip

16GB (2x8GB)DDR5 Memory

1TBM.2 PCIe NVMe SSD

Embracing the Spirit of Business

Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.

Lifestyle image of employees in an office

Business

Lifestyle image of a woman photographing food ingredients

Content Creation

Lifestyle image of three women in front of a computer during a class

Education

Lifestyle image of a female and male doctor wearing glasses looking at a computer

Medical & Science

Empowering Business

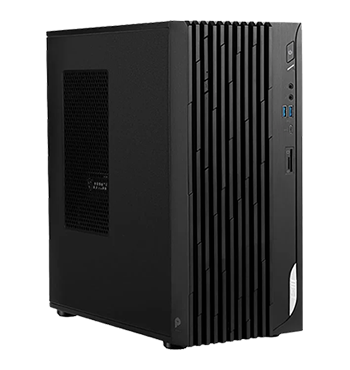

3/4 view image of the PRO DP180 Mini PC

Intel Core Processor PRO DP180 uses a full Intel® Core™ i7 14700 desktop processor rather than low-power mobile silicon. With high core counts and elevated boost frequencies, it handles concurrent applications, background services, and long-running workloads without the drop-offs associated with compact systems built around mobile parts. It also features Intel® UHD Graphics 770, delivering essential, out-of-box outputs for both work and play.


Photo of the mini PC on a desk next to a monitor

DDR5 Dual-Channel Memory DDR5 memory with dual-channel can enhance work efficiency and quality, processing large amounts of data and complex multitasking quickly and reducing waiting times and delays.

Enjoy High Efficiency with Multiple Displays

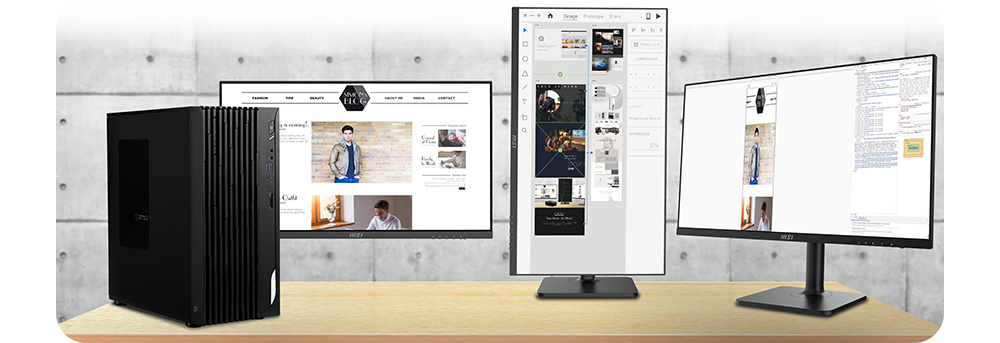

Image of the mini PC on a desk with three monitors connected

up to four displaysPRO DP180 supports up to four simultaneous displays, enabling expanded workspaces for monitoring, comparison tasks, content review, training environments, and operational dashboards. Support for up to 8K resolution allows deployment with ultra-high-resolution displays for signage, presentation systems, and detailed visual output, while also supporting high-resolution conferencing and media workflows. PRO DP180 allows you to enjoy the best viewing experience with your family, even the 8K display, or attending online conference call while working in the office or learning professional tasks at home.

Impressive Connectivity

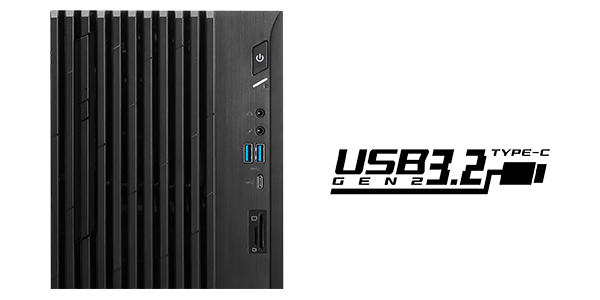

Close up of the PRO DP180 ports

Reversible Type-C With USB 3.2 Gen 2 When backup your projects at home you can get all the performance benefits from USB 3.2 Gen 2, combined with the convenience of the reversible USB Type-C connector and a fast USB 3.2 Gen 1 Type-A port.

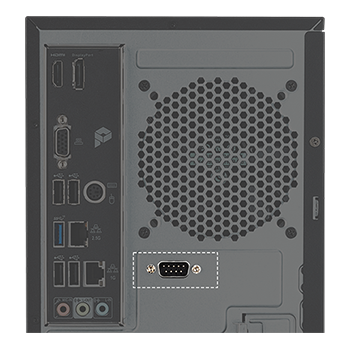

Image of the back of the mini PC with the COM Port highlighted

COM Port Device Support With a COM port and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more.

Teh COM ports can also communicate with the programmable logic controllers (PLCs) or with other module such as operator/HMI, motor controller,a robot or vision system in the intelligent factory.

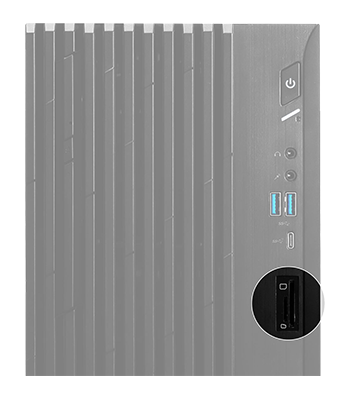

Close up of the DP180 card reader port

Built-in Card Reader The PRO DP180 supports both SD and Micro-SD cards via the built-in card reader, you can transfer files in the most intuitive way.


Circular image with the words Wi-Fi 6E inside

Wi-Fi 6E Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices simultaneously, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speeds up to 2.4Gbps. The PRO DP180 also supports Dual LAN along with 2.5G LAN and 1G LAN.

Control Made Easy

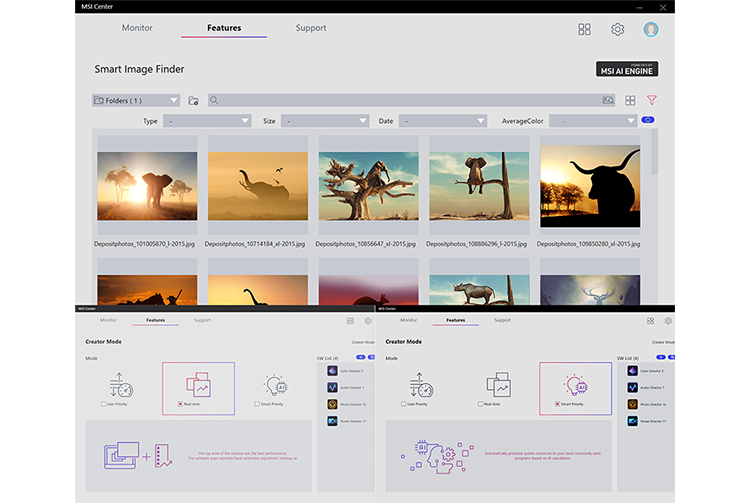

Image of the MSI Center App Interface

MSI Center AppMSI Center provides system mode controls and resource management through a single interface, allowing users to adjust system behaviour based on workload requirements.

Specifications
Edition MSI Pro DP180 14A
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i7
CPU Model i7-14700
Architecture Raptor Lake Refresh 14th Gen
Manufacturing Process
Unlocked CPU No
Core 20 Core
No. of Threads 28
Clock Speed 2.1 GHz
Burst Frequency 5.4 GHz
CPU Cache 33MB
CPU Cooler Air Cooled
TDP 65 W
CPU Socket 1700
Chipset Intel H610
Motherboard Form Factor MicroATX
Motherboard Model
Memory Type DDR5 SO-DIMM
Memory Included Yes
Memory Capacity Included 16GB (2x8GB)
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 5600
Max. Memory Capacity 64GB (2x32GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel UHD Graphics 770
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units 32
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots 1 x M.2, 22-80, PCIe Gen3
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included Yes
SSD Storage Type M.2 PCIe NVMe SSD
SSD Storage Capacity 1TB
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
  • 4x EDR Infiniband
  • 802.11ax Wi-Fi 6E
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel (Gigabit LAN)
Front Panel
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x MicroSD Slot
  • 1 x Power Button
  • 1 x SD Slot
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C

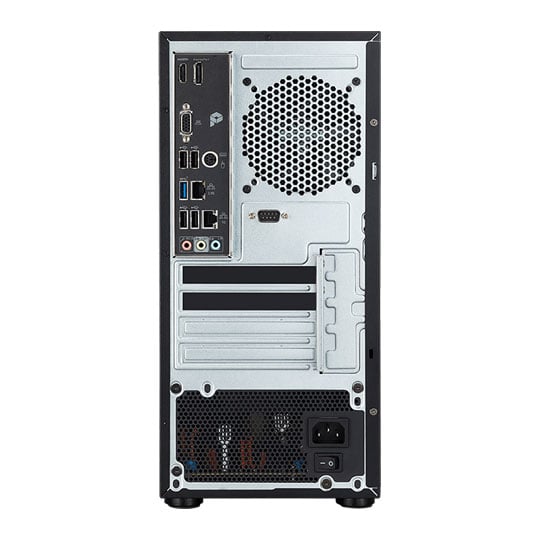

Back Panel
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Kensington Lock Slot
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x RJ-45
  • 1 x Serial (COM)
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x VGA
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 350 W
PSU Efficiency Rating 80 PLUS Bronze
PSU Redundancy Single PSU
Operating System Included Yes
Operating System Windows 11 Pro
Colour Black
Dimensions 168 x 369 x 323 (mm WxHxD)
Weight 7.59 kg
Includes 1 x Quick Start Guide
