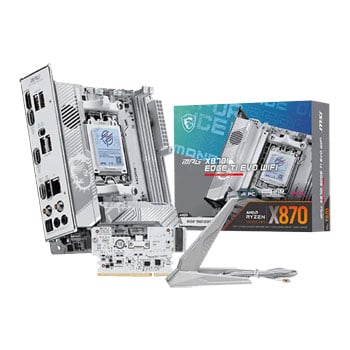

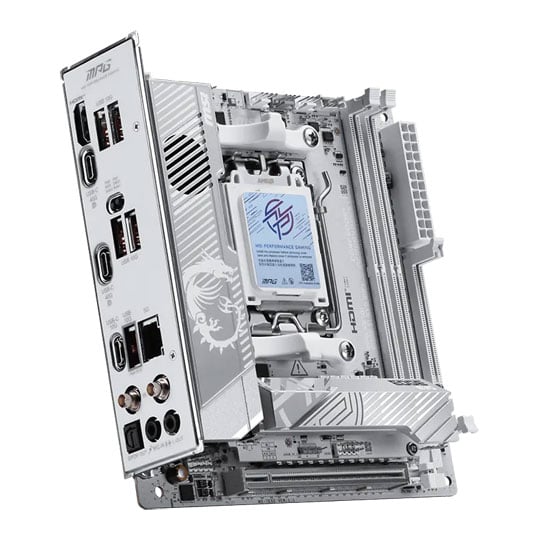

MSI MPG X870I EDGE TI EVO WIFI AM5 DDR5 PCIe 5.0 mITX Motherboard
MSI MPG X870I EDGE TI EVO WIFI, AMD X870, AM5, DDR5, PCIe 5.0, 3x M.2, 5G/WiFi7, USB4, AMD EXPO, mITX
Email me when the availability or price changes
Finance this product
- From £20.51 / month (APR 16.9%) for 24 months or 0% for 4 months
- With a 10% deposit from just £10.49 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.

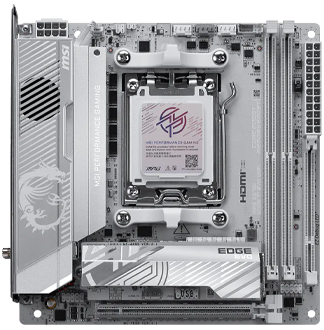

MPG X870I EDGE TI EVO WIFI DDR5 PCIe 5.0 AMD Mini-ITX Motherboard from MSI
Welcome to the futureThe MSI MPG X870I EDGE TI EVO WIFI is a premium Mini-ITX motherboard engineered for next-generation AMD gaming and high-performance small-form-factor builds. Built on the AMD X870 chipset with AM5 socket support for Ryzen™ 9000, 8000 and 7000 Series processors, it delivers cutting-edge performance with PCIe 5.0 readiness and a 5-in-1 XPANDER card. In total, it features three M.2 slots, one of which is accessible on this card. Two SATA ports are also included for older drives. Integrated Wi-Fi 7 and 5G LAN top it off by providing ultra-low-latency networking for competitive gaming and streaming.
X870AMD Chipset
AM5CPU Socket
DDR5 RAMMax. 128GB (Dual Channel)
Mini-ITXForm Factor
Incredible Power Design

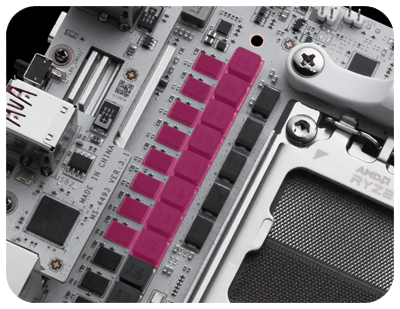

8+2+1 DRPS POWER DESIGN Unlock and maintain peak performance with the flagship VRM design featuring 8+2+1 digital power phases. Equipped with dual power connectors and a 110A Smart Power Stage, the EDGE TI is fully prepared to handle the demands of high-end processors.
8 Vcore Power - SPS 60A
2 SOC Power
1 Misc Power

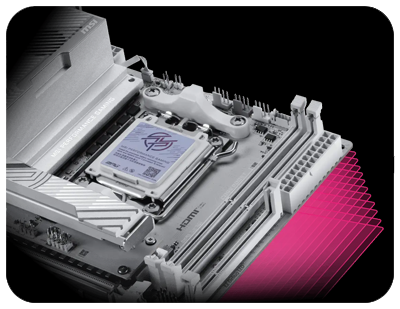

Optimised PCB The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission. 12 PCB Layers Server-grade PCB material 2oz Thickened Copper

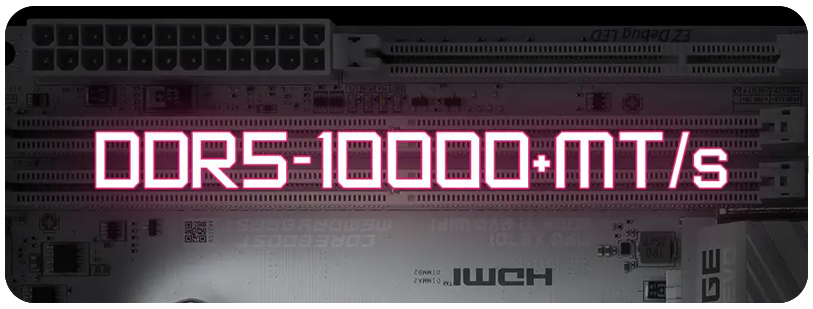

High Performance Memory Support
Unleash World-Class DDR5 Performance Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the X870E EDGE TI WIFI is primed to deliver world-class memory performance.
EXPO / A-XMP Support
Memory Boost
SMT Process

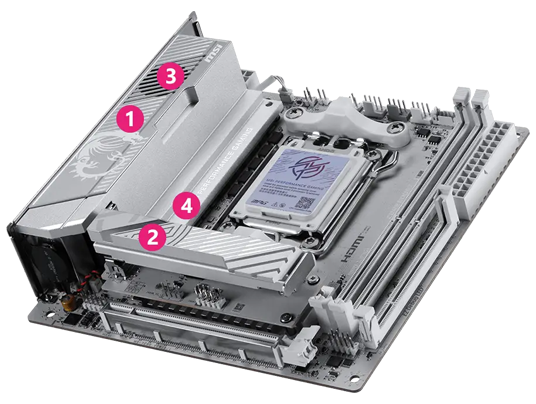

Frozr Cooling Design
1. Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.
2. M.2 Shield FrozrAchieve reliable operation and incredible performance with this strengthened M.2 thermal solution.
3. 7W/mK Thermal PadPremium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.
4. Enlarged Chipset HeatsinkThe enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.
A Breakthrough in Bandwidth
Precise Transfer Power

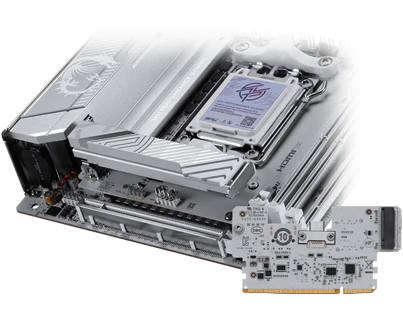

For PCIe, MSI motherboards maximise bandwidth with reinforced slots and advanced signal integrity, ensuring top-tier performance for GPUs and expansion cards. Due to its compact size, the optional 5-in-1 XPANDER card can be used to gain another M.2 slot.
x1 Steel Armoured Full-Length PCIe 5.0 (x16)
x1 FP Expansion Slot (for XPANDER Card)
x1 M.2 PCIe 5.0 x4 2280
x1 M.2 PCIe 4.0 x4 2280 (On Back)
x1 M.2 PCIe 4.0 x4 2280 (via XPANDER Card)
Supercharge Your Networking
WiFi 7 - 5.8Gbps
WiFi 6 - 2.4Gbps
WiFi 7The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.

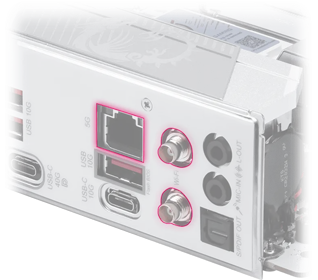

High-Bandwidth, Low Latency LANMSI's premium 5G network solution provides incredible transfer speeds for demanding users.
Peripheral Power
