MSI MPG X870E EDGE TI WiFi AM5 DDR5 PCIe 5.0 ATX Motherboard
MSI MPG X870E EDGE TI WiFi, AMD X870E, AM5, DDR5, PCIe 5.0, 4x M.2, 5G/WiFi7, USB 4.0, AMD EXPO, ATX
Frequently Bought Together
MPG X870E EDGE TI WIFI DDR5 PCIe 5.0 AMD ATX Motherboard from MSI

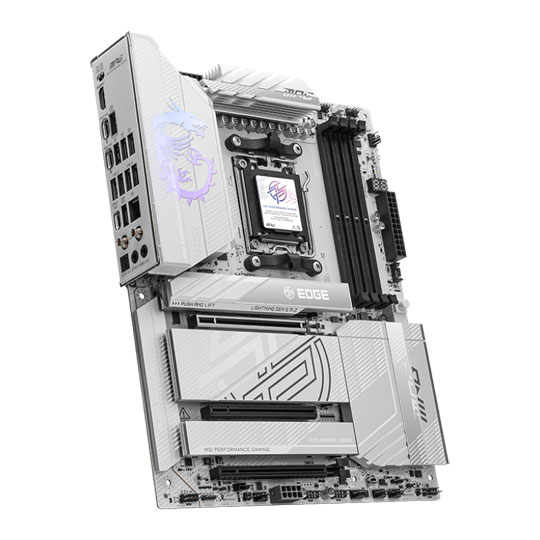

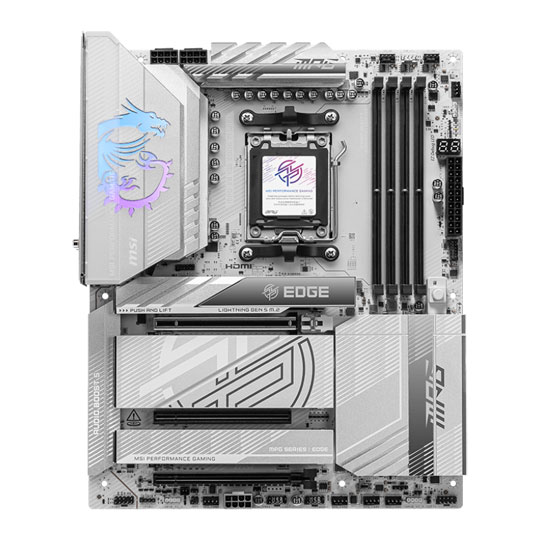

Welcome to the futureThe MPG X870E EDGE TI WIFI pushes futuristic engineering to new heights, clad in a pristine white PCB with towering silver heatsinks that catch the light with a subtle prismatic gleam. A radiant MSI dragon emblem glows atop the largest VRM heatsink, pulsing with colour as the system roars to life. Beneath its bold exterior, a 14+2+1 Duet Rail Power System and dual 8-pin CPU connectors supply unwavering power to Ryzen 9000 series processors, ensuring relentless stability. True Wi‑Fi 7 and 5G LAN propel connectivity to blazing speeds, while PCIe 5.0 support and supplemental PCIe power arm it for the next generation of high-performance hardware.
X870AMD Chipset
AM5CPU Socket
DDR5 DIMMMax. 256GB (Dual Channel)
ATXForm Factor
Incredible Power Design
14+2+1 DRPS POWER DESIGN Unlock and maintain peak performance with the flagship VRM design featuring 14+2+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the X870E EDGE TI WIFI is fully prepared to handle the demands of high-end processors.
14 Vcore Power - SPS 60A
2 SOC Power
1 Misc Power
Optimised PCB The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission. 8 PCB Layers Server-grade PCB material 2oz Thickened Copper
High Performance Memory Support
Unleash World-Class DDR5 Performance Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the X870E EDGE TI WIFI is primed to deliver world-class memory performance.
EXPO / A-XMP Support
Memory Boost
SMT Process
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >Frozr Cooling Design
1. Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.
2. Sturdy Heat PipeConnects two MOS heatsinks to enlarge the heat dissipation surface, making things more stable and reliable.
3. M.2 Shield FrozrAchieve reliable operation and incredible performance with this strengthened M.2 thermal solution.
4. 7W/mK Thermal PadPremium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.
5. Enhanced M.2 ThermalsA double-sided M.2 Shield Frozr and Enlarged heatsink design keeps M.2 SSDs safe while preventing throttling.
6. Enlarged Chipset HeatsinkThe enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.
Thermals Done Your Way
DIY 2.0
Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.
For CPU Cooler
For Liquid Cooler
For System Fan
Exclusive EZ CONN. - JAF_2
A Breakthrough in Bandwidth
Quadruple Armoured M.2 Slots
MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.
• M.2 PCIe 5.0 x4 (22110/2280)
• M.2 PCIe 5.0 x4 (2280/2260)
• M.2 PCIe 4.0 x4 (2280/2260)
• M.2 PCIe 4.0 x4 (2280/2260)
Packed with PCIe
For PCIe, MSI motherboards maximise bandwidth with reinforced slots and advanced signal integrity, ensuring top-tier performance for GPUs and expansion cards.
x1 Steel Armoured Full-Length PCIe 5.0 (x16)
x1 Full-Length PCIe 3.0 (x1)
x1 Full-Length PCIe 4.0 (x4)
Supercharge Your Networking
WiFi 7 - 5.8Gbps
WiFi 6 - 2.4Gbps
WiFi 7The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.
High-Bandwidth, Low Latency LANMSI's premium 5G network solution provides incredible transfer speeds for demanding users.
Peripheral Power
