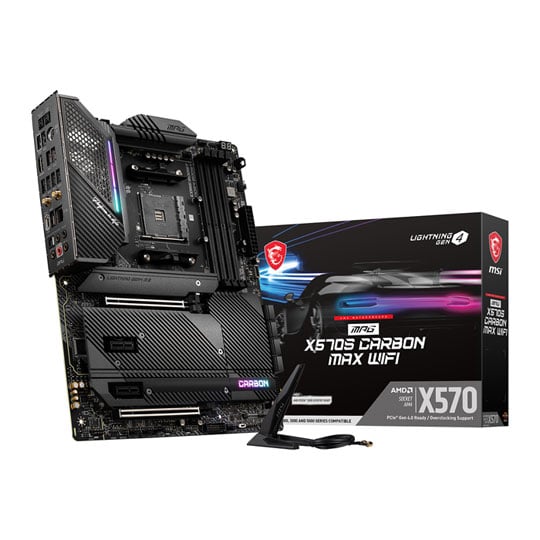

MSI MPG CARBON MAX WIFI X570S AM4 PCIe 4.0 ATX Motherboard
MSI MPG X570S CARBON MAX WIFI, AMD X570,S AM4, DDR4, PCIe 4.0, SATA3, 4x M.2, CrossFire, 2.5GbE, ax/BT5.2, ATX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£279.98|
|Total inc. interest:||£288.76|
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£279.98|
|Total inc. interest:||£297.05|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 20th May
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
MSI X570S CARBON MAX WIFI 3rd Gen Ryzen ATX MPG Series Motherboard
A step into the Future Take a step into the future with The MSI X570S CARBON MAX Wifi, here to support the very latest AMD Ryzen processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2 technologies, Type-C connectivity, DDR4 Memory boosts, a premium thermal design including aluminium cover, VRM heatpipes and MOSFET baseplate Plus onboard M.2 Shield Frozr and incredible Wi-Fi 6e technology. The MSI X570S motherboards have what it takes to push the boundaries of performance into unknown territories, so buckle up and get ready for the ride of your life.
Special Features of the X570S Carbon MAX WIFI
Core Boost TechnologyMSI's premium layout design, is ready to unleash maximum performance.
Digital PWMAn aggressive digital VRM power design with digital PWM IC and 14 Duet Rail CPU Power System with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions
6 layer PCB6 layer PCB provides higher performance and long-lasting system stability without any compromise.
PCIe Steel ArmorProtecting VGA cards against bending and electromagnetic interference for better performance, stability and longevity.
2oz Thickened Copper PCBAn enhanced PCB design improves heat dissipation and performance reliability.
Premium Thermal Solution
Premium Thermal DesignHeavy plated MOSFET heatsink with heat-pipe, high quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores run at their highest performcance.
Pump Fan SupportControl watercooling pump speeds for best flow and noise control.
Silent CoolingMSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
M.2 Shield FrozrUpdated built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, Allowing them to run faster.
Next Generation Connectivity
Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5G plus Gigabit LANFeaturing 2.5G, Gigabit LAN with LAN manager delivers better network experience.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >
Aggressive Power Design
8+4 PinCPU Power Connectors
14 PhaseDuet Rail CPU Power System
2 PhasesSOC Power
Digital PWM IC
14 + 2 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining 8+4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
Protect your Sensitive Components During Installation and Beyond
Impeccable Thermal DesignWith newer processors housing more cores, thermal and power design becomes for important to ensure temperatures remain stable. MSI have incorporated extended PWM heatsinks, heatpipes and enhanced circuit design to ensure even high-end CPUs run at full capacity with MSI motherboards.
Experience Core Boost
faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs, but also creating the perfect conditions for CPU overclocking allowing you to always get the most from your 3rd generation AMD Ryzen Processor.
Give yourself a Lightning Fast Experience
LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Fast and Future Ready Storage
Quadruple M.2The MSI X570S Carbon Max features onboard quadruple M.2 connectors for maximum storage performance. The Industry leading design maximises bandwidth to fully utilise high-end storage devices, providing multiple configurations for demanding gamers and power users.
Unmatched Memory Performance
Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds when compared to other brands. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what and with optimised memory traces you don't need to worry about your system crashing under load!
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MPG X570S CARBON MAX WIFI supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
WI-FI 6E & BLUETOOTHUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.
Professional Gaming Audio
Amplify your game with Audio Boost Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
Connections at your Fingertips
|Edition||MPG X570S CARBON MAX WIFI|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB|
|Audio||7.1 Channel HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||HDMI 2.1|
|RAID Support via|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
|Model Number||MPG X570S CARBON MAX WIFI|
