Scan code: LN136154 Manufacturer code: MPG B760I EDGE WIFI

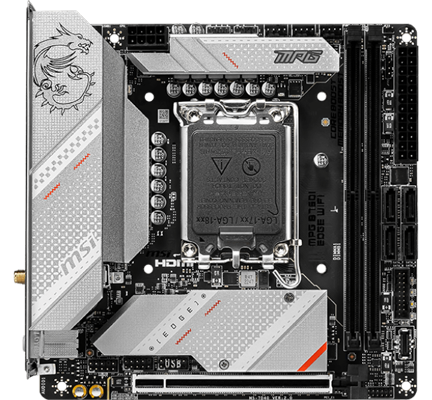

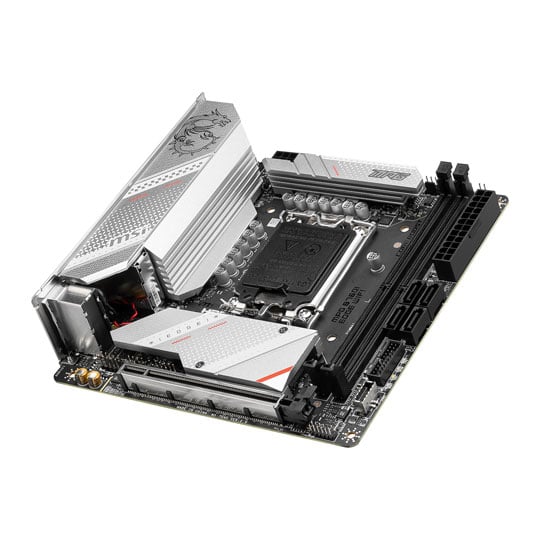

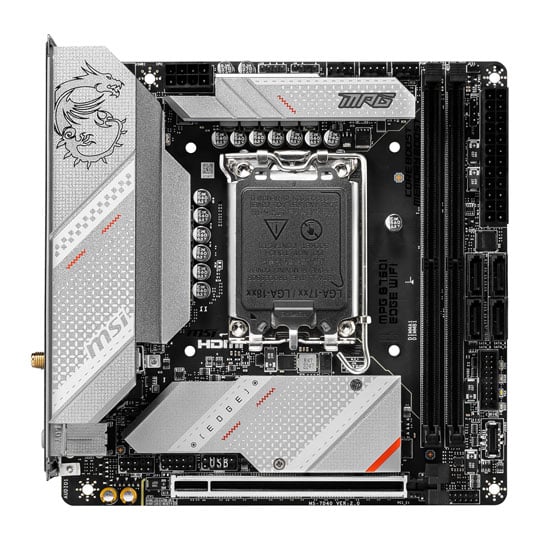

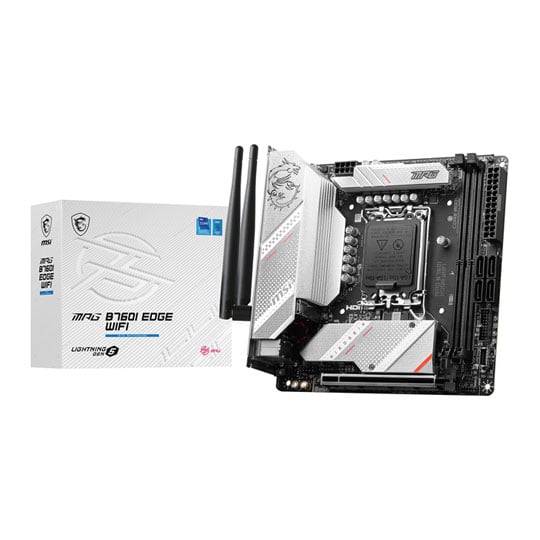

MSI Intel MPG B760I EDGE WIFI Mini-ITX Motherboard

MSI MPG B760I EDGE WIFI, Intel B760, LGA1700, DDR5, SATA3, PCIe 5.0, 2x M.2, 2.5GbE, WiFi 6E,USB 3.2 Gen2, Mini-ITX

Thumbnail 1 : MSI Intel MPG B760I EDGE WIFI Mini-ITX Motherboard Thumbnail 2 : MSI Intel MPG B760I EDGE WIFI Mini-ITX Motherboard Thumbnail 3 : MSI Intel MPG B760I EDGE WIFI Mini-ITX Motherboard Thumbnail 4 : MSI Intel MPG B760I EDGE WIFI Mini-ITX Motherboard
Scan code: LN136154 Manufacturer code: MPG B760I EDGE WIFI
Order now and receive it by Thursday, 30th May
£199.99
Get it Thursday, 30 MayIn stock
From £9.77 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £18.12
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £217.42
Monthly Payment: £9.77
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £234.33
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
MSI steam promotion

MSI MPG B760I EDGE WiFi DDR5 LGA1700 m-ITX Motherboard

MSI B760 Motherboard

Showcase Your Style Express your style with the MPG B760I EDGE Wi-Fi, designed and constructed to draw the full potential from the latest 13th Generation Raptor-Lake CPUs. The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world whilst combining durability, power and stunning aesthetics with a stylish twist and a minute form factor. Boasting support for DDR5 memory, a direct 8+1+1 enhanced power design, lightning-fast PCIe 5.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of a extended heatsink design with heatpipe, M.2 Shield Frozr and high-end thermal pads perfect for a high-end system. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

Intel B760Chipset

LGA 1700CPU Socket

12th/13th Gen Intel® Core™ ProcessorsCompatible CPU

M-ITXForm Factor

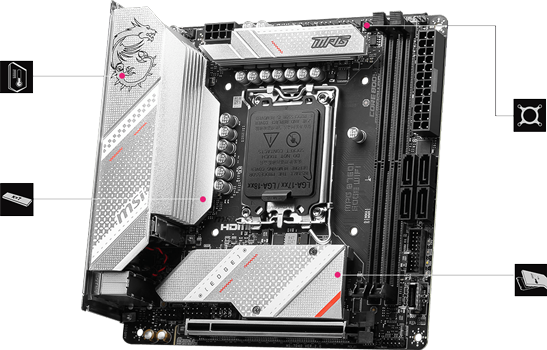

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK MOSFET Thermal Pads

M.2 Shield FROZR

M.2 Shield Frozr

Pump fan support

Pump Fan Support

Extended heatsinks

Extended Heatsink

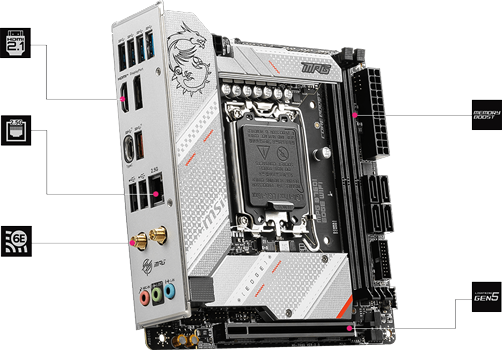

High-Speed Transmission

Connectivity options
10G

2.5G LAN

Wifi 6e

Wifi
6E

HDMI 2.1

HDMI
2.1

Gen 5 slots

PCIE 5.0
Slots

Memory Boost

Memory Boost

A Stable Cornerstone for Your System

DIY protection
Steel PCIe slots

Steel PCIe
armor

Digital PWM

Digital
PWM

PCB

2OZ Copper
PCB

io Shield

Pre-Installed
I/O Shield

io Shield

EZ Debug
LED

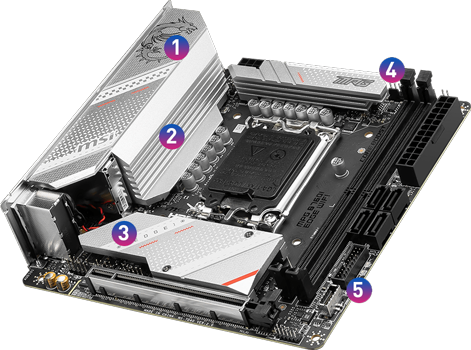

Massive Cooling Potential

1. Extended HeatsinksLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. 7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Massive Cooling heatsinks

3. M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.

4. Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

5. 8-Layer Server Grade PCB8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

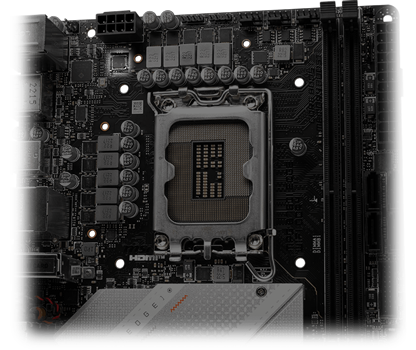

Aggressive Power Design

Robust power design

8 PhaseVCPU POWER 90A

1 PhaseGT Power

1 PhaseAUX Power

Direct 8+1+1 Phase Design SystemUnleash and sustain the maximum performance with a flagship VRM design built with a total of direct 8+1+1 digital power phases. Combining Core Boost and 90A Smart Power Stage, MPG B760I EDGE WIFI is ready for the challenge of high-end processors.

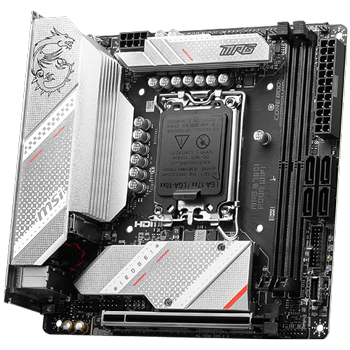

Meet The Latest Generation

PCIE 5 slots

LIGHTNING GEN 5 PCI-ESay hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.

SMT PCIe 5.0 SlotThe advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageMSI MPG series motherboards supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

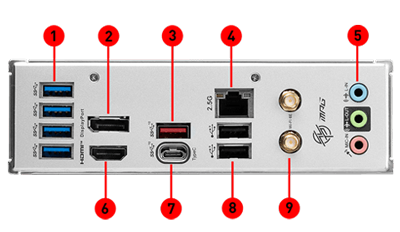

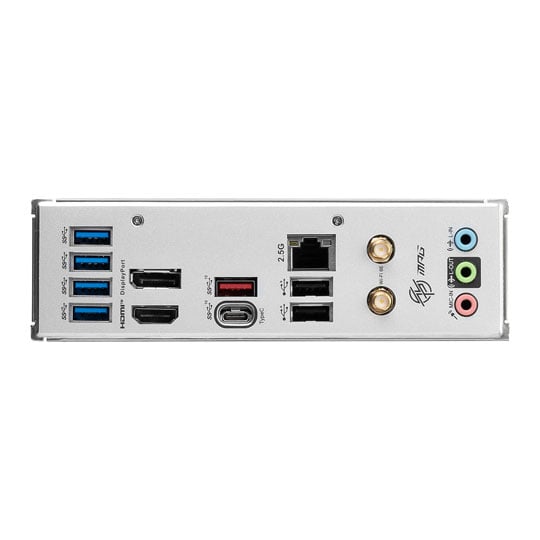

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: USB 3.2 Gen 1 5Gbps
2: Display Port
3: USB 3.2 Gen 2 10Gbps
4: 2.5G LAN
5: Audio Connectors
6: HDMI™
7: USB 3.2 Gen 2 10Gbps (Type-C)
8: USB 2.0
9: Wi-Fi / Bluetooth

Specifications
Core Specifications
Edition MAG B760I EDGE WIFI
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 5333(0C)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
Max. Memory Capacity
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x System Fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN136154
Model Number MPG B760I EDGE WIFI
GTIN 4711377069632
