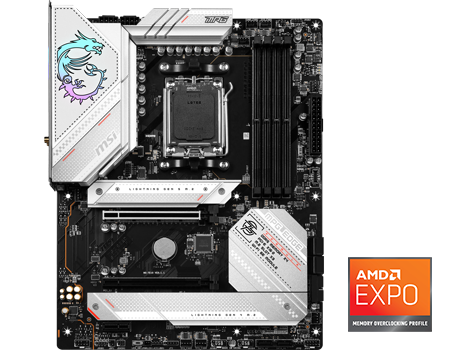

MSI MPG B650 EDGE WIFI, AMD B650, S AM5, DDR5, SATA3, PCIe 4.0, 3x M.2, 2.5GbE, AMD EXPO™, ATX
MORE INFO
MORE INFO

Scan code: LN129280 Manufacturer code: MPG B650 EDGE WIFI
£229.99
Item currently awaiting an ETA
Pre Order
Pre order
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £11.23 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £20.84
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £229.99
    Total inc. interest: £250.02
    Monthly Payment: £11.23
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £229.99
    Total inc. interest: £269.52
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days. More info
MSI steam promotion

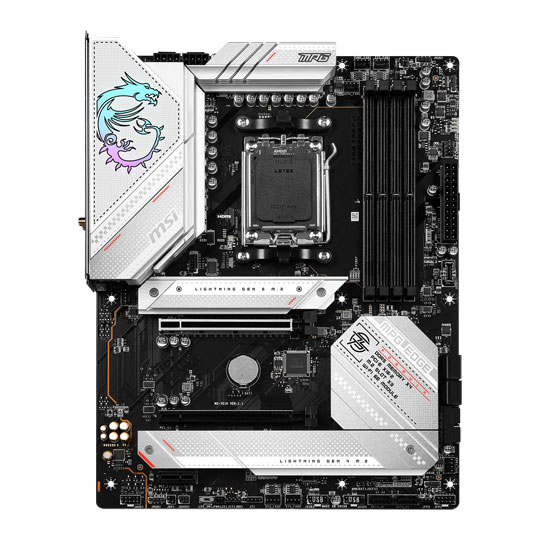

MSI MPG B650 EDGE WIFI AM5 ATX Motherboard

MSI B650 Motherboard

Ready For the 7000 SeriesThe MPG B650 EDGE WIFI employs a stunning silver and white colour scheme with RGB lighting showcasing a lighter personality against the dark of the carbon whilst combining durability, power and stunning aesthetics with a stylish twist. Developed to unlock the full gaming potential of the AMD B650 chipset and brand-new 7000 series processors by combining elite hardware and premium durability, the MEG B650 EDGE WIFI boasts, an enhanced 14+2+1 phase aggressive power design, a maximum of 3x M.2 connectors for impressive storage (1x Gen5 2x Gen4), an outstanding cooling solution including, extended heatsinks, high-end thermal pads & M.2 Shield Froze technology. Lightning Gen4 PCIe, DDR5 memory, WiFi 6 connectivity and a D.I.Y friendly design ensures extraordinary performance and style. MSI MPG series defines the future of gaming fashion.

AMD B650Chipset

AM5CPU Socket

AMD Ryzen™ 7000 SeriesCompatible CPU

ATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Fin Array Design

7W/mK MOSFET Thermal Pads

M.2 Shield FROZR

M.2 Shield Frozr

Direct touch heatpipes

Extended heatsink

PCH heatsinks

PCH Heatsink

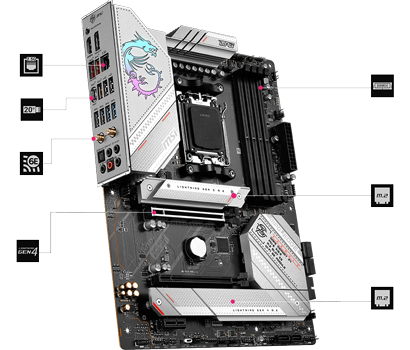

High-Speed Transmission

Connectivity options
10G

2.5G LAN

Wifi 6e

WIFI
6E

Gen 5 slots

PCIE 4.0
Slots

DDR5 memory support

DDR5
Memory Support

Front USB C

Lightning
USB 20G

Quad M.2

1x PCI-E 5.0 M.2 Slots
2x PCI-E 4.0 M.2 Slots

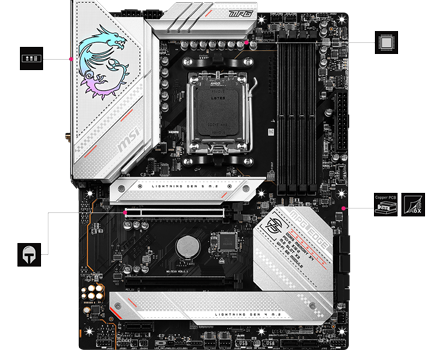

A Stable Cornerstone for Your System

DIY protection
Steel PCIe slots

Steel PCIe
armor

preinstalled I/O

preinstalled
IO Shield

Digital PWM

14+2+1 Phases
VRM Power

8 layer 2oz copper PCB

6 Layer
PCB

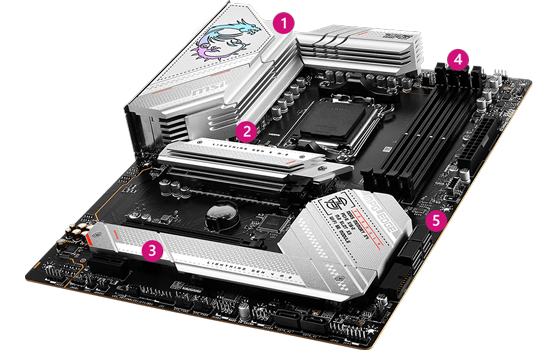

Massive Cooling Potential

1. Extended HeatsinksLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. Double-sided M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSDs safe and ensures incredible performance.

Massive Cooling heatsinks

3. M.2 Shield Frozr M.2 thermal accessory. Keeps M.2 SSDss safe while preventing throttling, making them run faster.

4. Pump Fan Support Control your watercooling pump speeds for superior flow and noise control.

5. 6-Layer Server Grade PCB 6-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

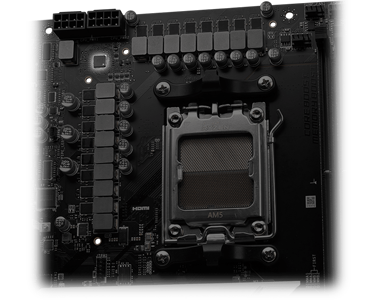

Aggressive Power Design

Robust power design

14 PhaseVCore 80A Power Stage

2 PhaseSOC Power

1 PhaseMISC Power

14+2+1 DUET RAIL POWER SYSTEMUnleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System (DRPS). Combining dual power connectors and 80A Smart Power Stage, MPG B650 EDGE WIFI is ready for the challenge of high-end processors.

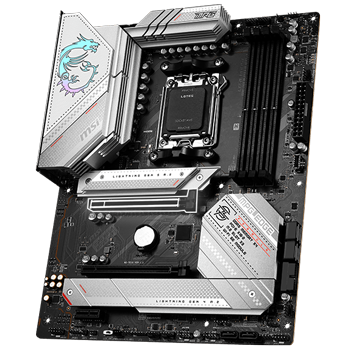

Embrace Lightning Speeds

PCIE 4 slots

LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

MSI Steel Armor SlotMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageMSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

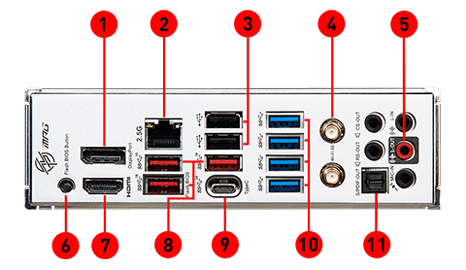

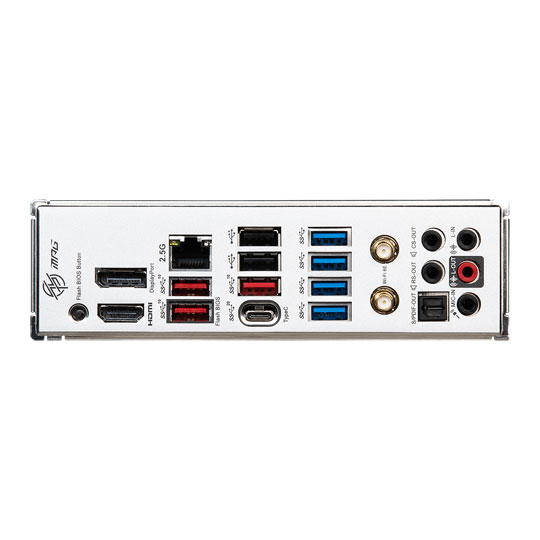

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: Display Port
2: 2.5G LAN
3: USB 2.0 (Type-A)
4: Wi-Fi / Bluetooth
5: Audio Connectors
6: Flash BIOS Button
7: HDMI™
8: USB 3.2 Gen 2 10Gbps (Type-A)
9: USB 3.2 Gen 2x2 20Gbps (Type-C)
10: USB 3.2 Gen 1 5Gbps (Type-A)
11: Optical S/PDIF Out

Specifications
Core Specifications
Edition MPG B650 EDGE WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x2 Bandwidth)
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x LED connector
  • 2 x RGB LED connector
  • 6 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x 802.11ax WiFi 6E + BT5.2
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi / Bluetooth Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN129280
Model Number MPG B650 EDGE WIFI
GTIN 4711377010191
