Scan code: LN118173 Manufacturer code: MEG Z590 UNIFY

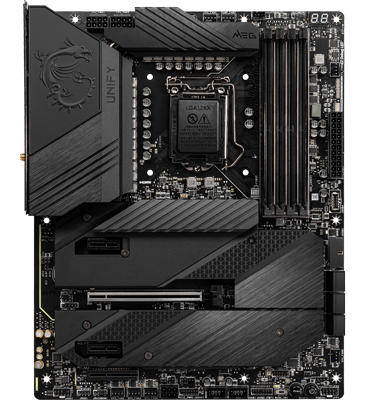

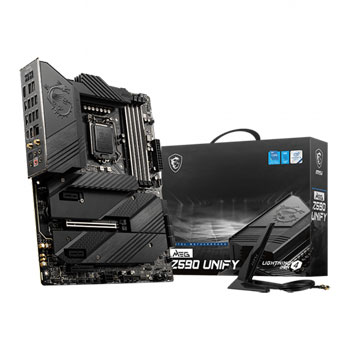

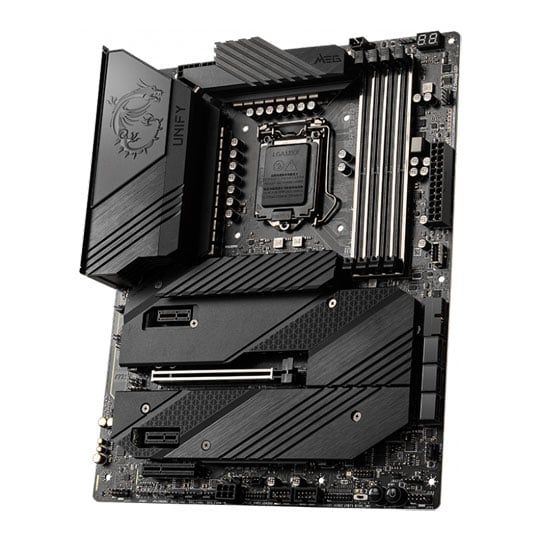

MSI Intel MEG Z590 UNIFY ATX Motherboard

MSI MEG Z590 UNIFY, Intel Z590, S 1200, DDR4, SATA3, PCIe 4.0, M.2, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : MSI Intel MEG Z590 UNIFY ATX Motherboard Thumbnail 2 : MSI Intel MEG Z590 UNIFY ATX Motherboard Thumbnail 3 : MSI Intel MEG Z590 UNIFY ATX Motherboard Thumbnail 4 : MSI Intel MEG Z590 UNIFY ATX Motherboard
Scan code: LN118173 Manufacturer code: MEG Z590 UNIFY
£359.99
Order now and receive it between 30th Nov and 1st Dec
From £15.00 / month (APR 0%) or 0% for 4 months
Monthly Payment: £30.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £359.99
Monthly Payment: £15.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £359.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 30th Nov To 1st Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MSI steam promotion

MEG Z590 UNIFY 11th Generation Intel ATX Motherboard from MSI

Z590 UNIFY

Built on Solid Foundations Ready to experience the future of gaming? The MSI Z590 UNIFY is here to support the very latest 11th Generation Intel processors; Bolstered with an arsenal of top-shelf features including; an extreme digital power design, outstanding cooling solution including an aluminium cover, VRM heatpipe, 7W/mK thermal pads, M.2 Frozr technologies and a MOSFET baseplate to ensure extreme performance with low temperatures, Quadruple M.2 connectors for maximum storage with one lightning PCIe 4.0 solution. Next generation connectivity is handled by an onboard 2.5G LAN and the latest Wi-Fi 6E support and in order to ensure maximum product longevity the motherboard itself has been fitted with an 8 layer PCB and a smart button to handle multiple forms of hardware control such as reset, safe boot, turbo fan and EZ LED control with a single click. The Z590 MEG UNIFY has what it takes to ensure you receive a high performance immersive gaming experience. Can you handle it?

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

ATXForm Factor

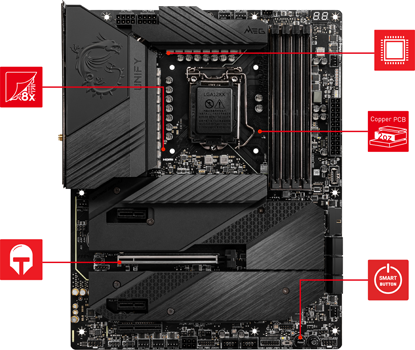

Special Features of the Z590 UNIFY

4K Recording
down

8-layer
PCB Design
Multi-layer printed circuity optimises power delivery increasing system stability and thermal efficiency.

up

Digital
PWM
Highest quality components with ISL digital power, 90A Smart Power Stage and titanium choke III make sure your system runs smoothly under the most extreme conditions.

up

2OZ Thickened
Copper
A 2oz thickened PCB provides an increase to performance and long-lasting system stability without any compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

up

Smart
Button
A simple button that offers multiple forms of hardware control with a single click.

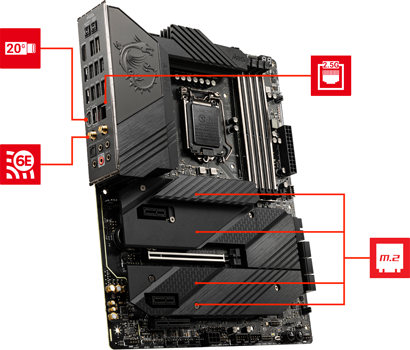

Next Generation Connectivity with MSI

4K Recording
down

2.5G LANGet ready to crush your enemies on the battlefield with MSI LAN Manager. Onboard 2.5G LAN delivers a supreme online experience without worrying about lag.

up

Lightning USB 20GBuilt-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

up

Quadruple M.2 ConnectorsOnboard quadruple M.2 connectors for maximum storage performance with one Lightning Gen 4 solution.

up

Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

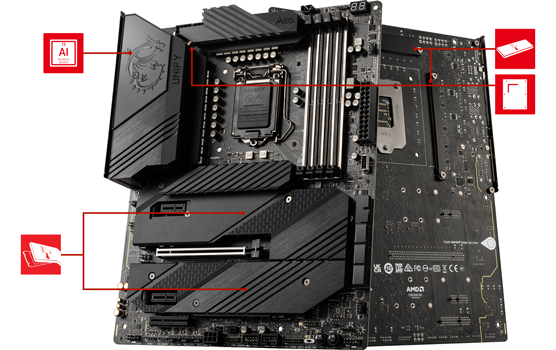

Premium Thermal Solution

4K Recording
down

Aluminium CoverA full coverage aluminium IO cover and extended heatsink design provide maximum surface area to ensure maximum heat dissipation efficiency.

up

M.2 FrozrOnboard m.2 thermal solution helps to prevent throttling keeping your M.2 SSDs safe and allowing them to run at maximum performance.

up

All aluminium BackplateThe heavy and durable aluminium backplate provides additional cooling to your MOSFETs with it's dedicated thermal pad.

up

Heatpipe DesignA heatpipe is used to connect the two MOS heatsinks to increase the overall surface of heat dissipation.

Unbelievable Power Solution

4K Recording

INTERSIL Digital PWM Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases. Combining dual power connectors and exclusive Mirrored Power Arrangement, MEG series motherboards are ready for the challenge of high-end processors.

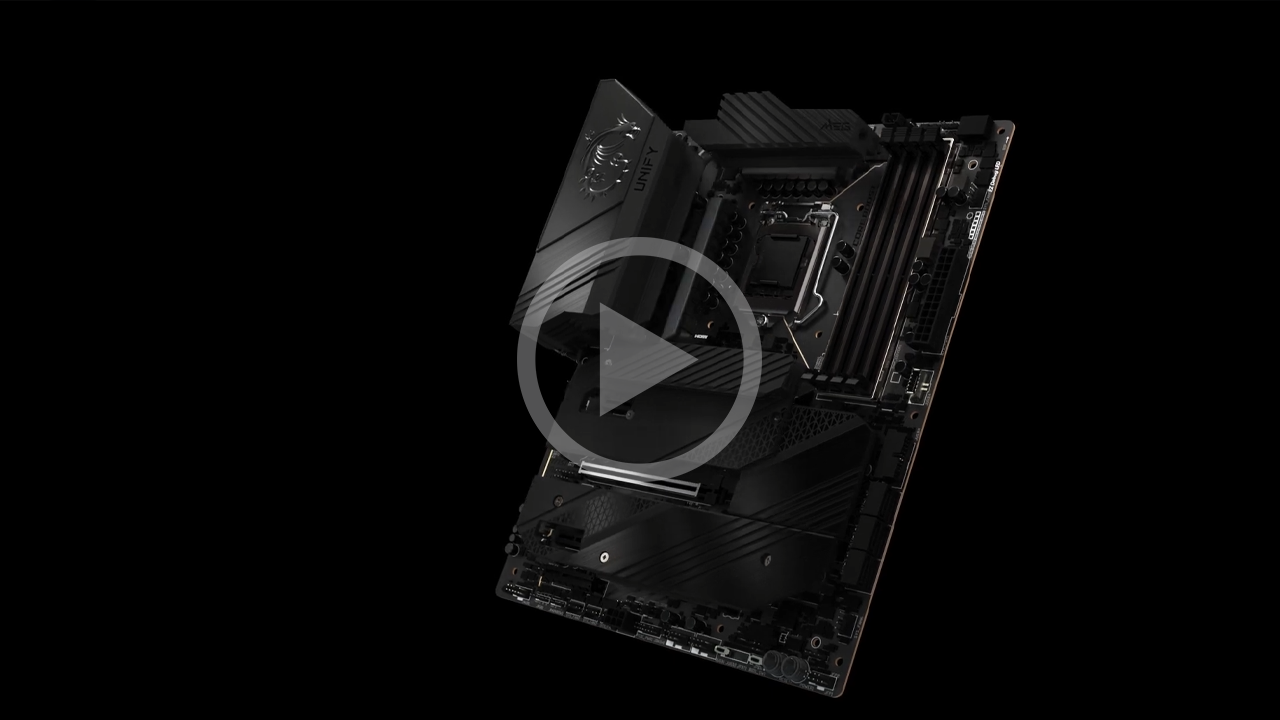

See Whats Under The Cover

The Future is Now

4K Recording

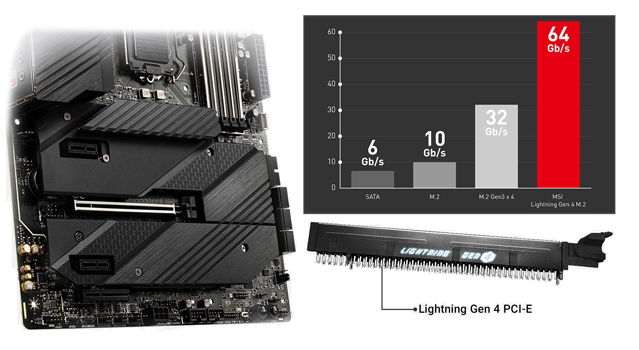

LIGHTNING GEN 4 SOLUTIONUtilising 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

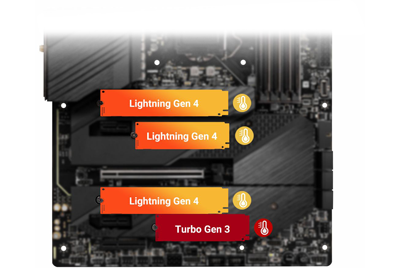

Fast and Future Ready Storage

back

Maximum Storage SupportMEG Z590 UNIFY series motherboard features exclusive onboard quadruple M.2 connectors for maximum storage performance. The Industry leading design maximises bandwidth to fully utilise professional graphics cards and high-end storage devices, providing multiple configurations for demanding gamers and power users.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Protecting your PCIe Slots

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MEG Z590 UNIFY supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Professional Gaming Audio

audio

Amplify your game with Audio Boost 5 HD Like a dedicated sound card, Audio Boost 5 HD offers a premium audio processor, ESS audio DAC, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.

Next Generation Connectivity

4K Recording

Wi-Fi 6e SupportUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

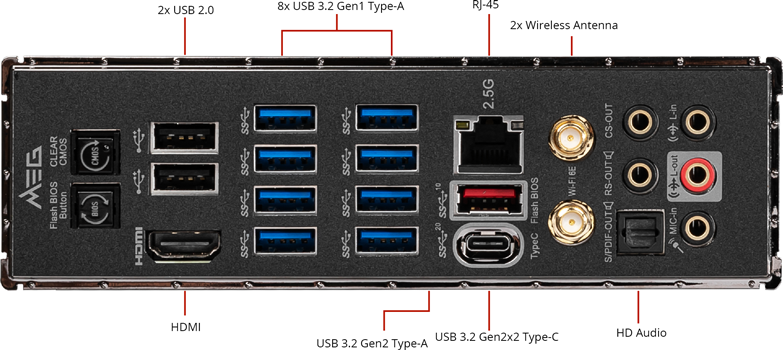

A Fully Comprehensive I/O

IO Panel
Specifications
Core Specifications
Edition MEG Z590 UNIFY
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5333(0C)
  • DDR4 - 5600(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x4
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 2-pin Thermal Sensor Header
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 6 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 6-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel® I225V (2.5GbE LAN)

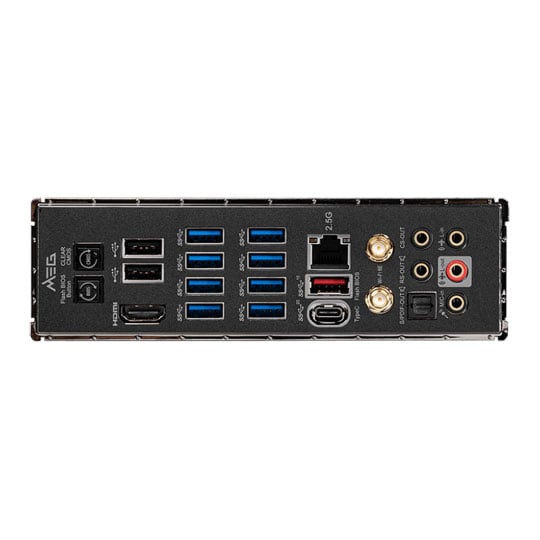

Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 8 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 30.5 x 24.4 mm
Note
Additional Information
Scan Code LN118173
Model Number MEG Z590 UNIFY
GTIN 4719072822194
