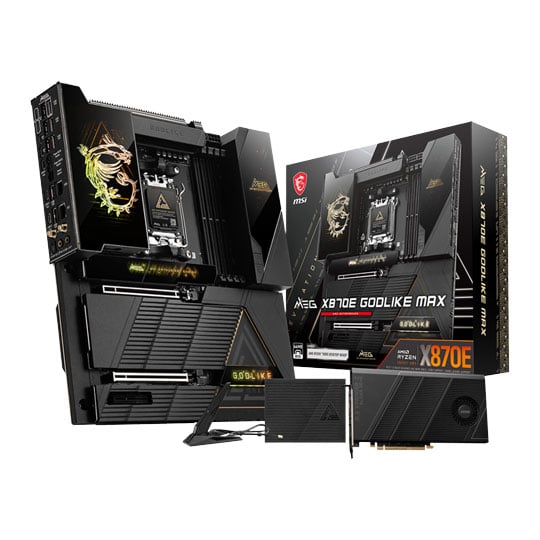

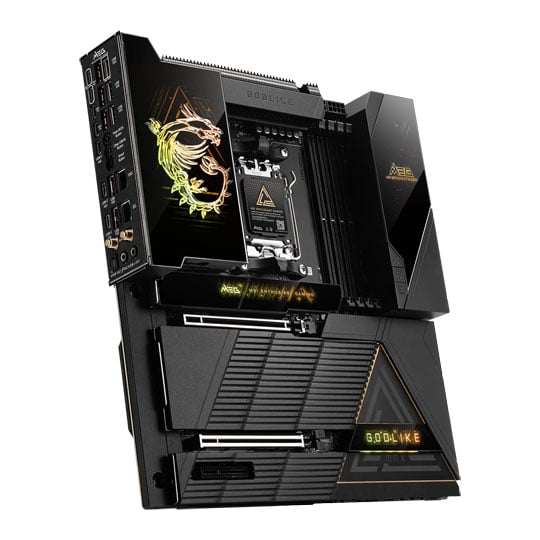

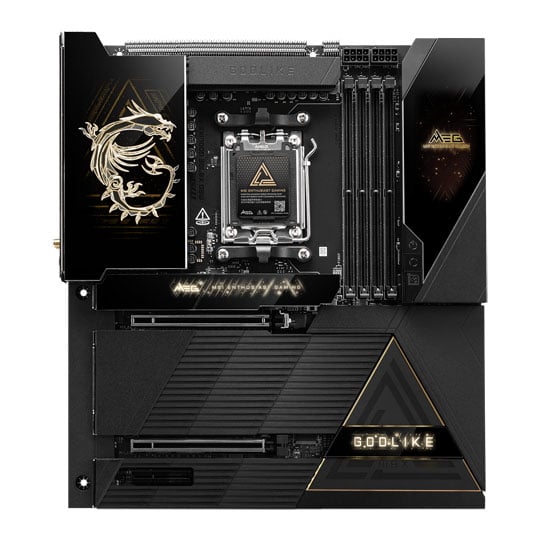

MSI MEG X870E Godlike MAX AM5 DDR5 PCIe 5.0 E-ATX Enthusiast Motherboard

MSI MEG X870E GODLIKE MAX E-ATX Enthusiast Motherboard

The MSI MEG X870E GODLIKE MAX motherboard is built for high-performance gaming and enthusiast PC builds as well as being an overclockers dream, supporting AMD Ryzen 9000, 8000 and 7000 Series processors with outstanding DDR5 memory and PCIe 5.0 connectivity. Its powerful 24+2+1 Duet Rail Power System and OC Engine provide a strong foundation for demanding workloads and overclocking, while seven total M.2 slots across the motherboard and included expansion card offer extensive high-speed storage options. Wi-Fi 7, 10G and 5G LAN, and USB4 deliver advanced connectivity, while the 3.99-inch Dynamic Dashboard III LCD provides real-time hardware monitoring and customisation. With advanced cooling, EZ Link cable management and premium Audio Boost 5 HD, the MEG X870E GODLIKE MAX combines enthusiast-grade performance with innovative features.

Dynamic Dashboard III

Dynamic Dashboard III introduces a 3.99-inch full-colour LCD display, bringing real-time hardware monitoring, troubleshooting, BIOS update status and personalised system information together in one convenient place.

EZ Link Design

The GODLIKE-exclusive EZ Link design consolidates most of the case front panel headers, fan headers, and RGB headers into the EZ Bridge and EZ Control Hub, simplifying installation and creating a cleaner aesthetic.

Outstanding Performance

Ultimate Power Solution
24+2+1 Duet Rail Power System and 110A Smart Power Stage design are ready to push CPU performance to its limits.

Dual Solid Pin Connectors
Delivers stable and sufficient power, even for overclocked multi-core CPUs, ensuring peak performance under heavy loads.

Digital PWM IC
Enables faster and distortion-free current delivery, ensuring efficient and reliable performance under demanding conditions.

Extreme Memory Performance
Combining a dedicated SMT welding process and MSI‘s Memory Boost technology, MEG X870E GODLIKE MAX squeezes the very best from your memory.

CORE Boost and OC Engine
A Premium layout and dedicated clock generator provide the perfect conditions for EXTREME CPU overclocking.

Ultimate Engine
Click BIOS X provides a range of CPU and memory overclocking tools, giving enthusiasts greater control to fine-tune performance and push their system further.

Unbeatable Thermal Solution

The MSI MEG X870E GODLIKE MAX features an advanced Frozr thermal solution designed to maintain stable performance under demanding workloads. Its wavy-fin heatsinks, direct-contact cross heat-pipe and 9W/mK MOSFET thermal pads work alongside additional choke thermal pads and double-sided M.2 Shield Frozr to help manage temperatures across key components. Dedicated fan and pump headers support flexible cooling configurations, while MSI Center provides fan speed and temperature management through Cooling Wizard and Frozr AI Cooling.

M.2 XPANDER-Z SLIDER GEN5

The included M.2 XPANDER-Z SLIDER GEN5 expansion card adds two PCIe 5.0 x4 M.2 slots, supporting transfer speeds of up to 128Gbps for high-speed storage expansion. Its EZ Slide design simplifies SSD installation and upgrades, while the slim, single-slot form factor helps minimise interference with bulky graphics cards. A 70mm dual-ball-bearing fan provides active cooling to help maintain SSD performance, and four LED indicators display drive detection and data transfer activity.

Lightning PCIE 5.0 Solution

The MSI MEG X870E GODLIKE MAX supports PCIe 5.0 for next-generation graphics and high-speed expansion, with three onboard PCIe slots to accommodate a range of add-in cards. The primary PCIe x16 slot features Steel Armor II reinforcement, using additional solder points to support up to 21% more graphics card weight than first-generation Steel Armor. An integrated EZ PCIe Release mechanism also simplifies graphics card removal, making upgrades and system maintenance easier.

Next-Generation Connectivity

Full speed WIFI7 Solution
Enjoy faster wireless connectivity with Wi-Fi 7, delivering speeds of up to 5.8Gbps for smoother online gaming, faster downloads and responsive streaming, with up to 2.4 times the speed of Wi-Fi 6/6E.

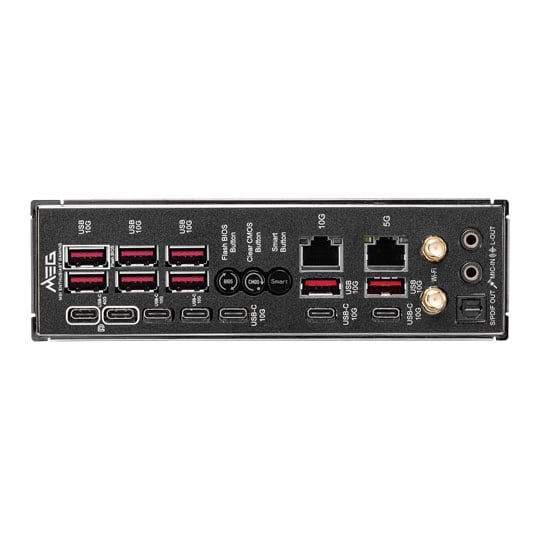

Dual High-Speed LAN
Premium Marvell 10Gbps LAN and Realtek 5Gbps LAN delivers high-speed wired connectivity for faster data transfers, reliable networking and a smoother online gaming experience.

USB4 40GBPS Type-C
Featuring dual built-in USB 4 ports, it offers lightning-fast 40Gbps transmission speed with with 4K@120Hz display support.

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 9200+MT/s (OC)
• Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
• M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
• Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
• EZ DIY: 64MB BIOS ROM, EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
• Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
• Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
