Scan code: LN102264 Manufacturer code: MEG X570 UNIFY

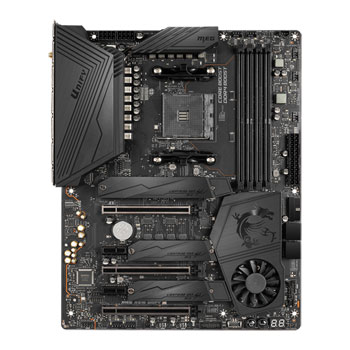

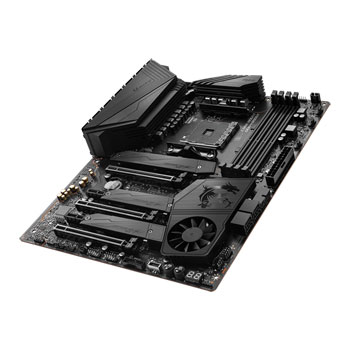

MSI AMD Ryzen X570 MEG Unify AM4 PCIe 4.0 ATX Motherboard

MSI MEG X570 Unify, AMD X570, AM4, DDR4, PCIe 4.0, 3x M.2, SLI/CrossFire, 2.5GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : MSI AMD Ryzen X570 MEG Unify AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen X570 MEG Unify AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen X570 MEG Unify AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen X570 MEG Unify AM4 PCIe 4.0 ATX Motherboard
Scan code: LN102264 Manufacturer code: MEG X570 UNIFY
£264.98
Order now and get it tomorrow, Thu 22nd Oct
From £12.72 / month (APR 14.9%)
Monthly Payment: £23.79
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £264.98
Total inc. interest: £285.44
Monthly Payment: £12.72
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £264.98
Total inc. interest: £305.22
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 22nd Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

MSI MEG X570 UNIFY! Unify your Power and Join the Dark Side

MSI X570 Unify

TAILORED FOR HARDCORE GAMERS AND ENTHUSIAST USERSThe MEG X570 Unify motherboard by MSI emphasizes the true value by enhancing the thermal and power solution which drastically improves performance. Featuring the latest PCIe 4.0 standard for M.2 and PCIe expansion slots, the lightning Gen4 M.2 slots can support up to 64 GB/s bandwidth and faster transfer speed than before. To meet the demanding requirement for PCIe 4.0 devices, MEG X570 UNIFY motherboard gives a complete thermal solution to prevent any situation from hampering the performance. M.2 Shield Frozr is built-in thermal solution to cool down M.2 devices and prevent overheating. Frozr Heatsink Design can also help generate more airflow to avoid thermal throttling impacting your performance.

Please note: Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

Generation 4 Solution with M.2 Shield FROZR

MSI X570 Gaming plus

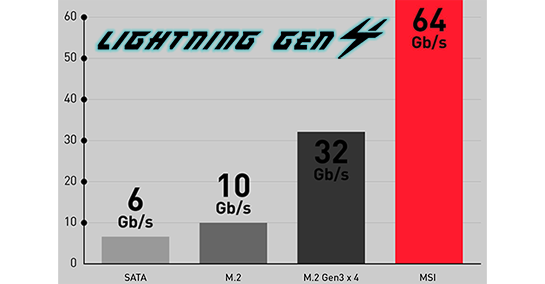

faster data transfer for M.2 devicesThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield FROZR is the next generation M.2 Thermal solution avoiding this by offering the best thermal protection to make sure the SSD maintains maximum performance.

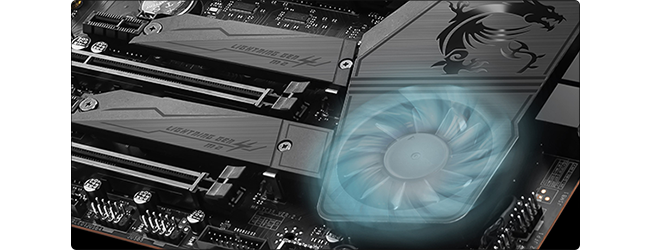

FROZR Heatsink Design

x570 unify Frozr Design

PATENTED DESIGN PROVIDES BETTER AIRFLOWHigher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers. The MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU'S to run in full speed with MSI motherboards ensuring you get the best out of your system.

Cooler Temperatures enable Faster Speeds

x570 m2 shield

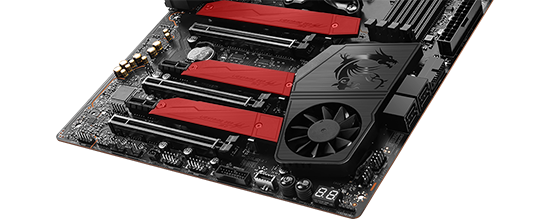

TRIPLE LIGHTNING M.2 WITH M.2 SHIELD FROZRCooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection. The M.2 Genie utility takes the work out of setting up M.2 SSDs in a RAID 0 array. Drive your data transfer to extreme speeds without the challenge of a tricky setup and configuration.

Experience Core Boost

x570 unify core boost

Outstanding VRM power design for MEG X570 UNIFYCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU. MSI X570 motherboards are optimized to maximize the performance on the AMD® Ryzen™ 3000 series processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

audio boost

High Definition ALC1220 Audio ProcessorSupports DSD Super Audio CD playback & recording (64x better than regular CD quality)

ESS Audio DAC

ESS AUDIO DACRecreates the optimal natural analogue sound with ultra-low distortion to ensure a perfect, realistic display of sound.

High Quality Capacitors

High Quality Audio CapacitorsA high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

Golden Audio Jacks

Golden Audio jacks with S/PDIFKeep your sound perfect by transmit your audio with pure digital signal.

Overclock Your System in One Second!

MSI x570 Gameboost

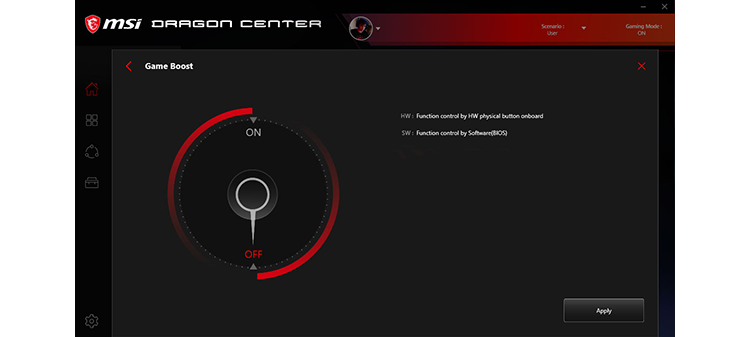

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

Amplify your Game with Audio Boost 4

audio

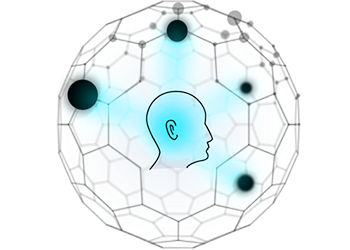

powered by Nahimic Like a dedicated sound card Audio Boost 4, powered by Nahimic, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable.

The Next Generation of Wi-Fi

wifi6

EQUIPPED WITH 2.5G + 1G GAMING LAN Use your LAN port for online gaming while using WiFi for other online applications. The Intel® Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.

Server Grade Quality for your Motherboard

Server Grade PCB

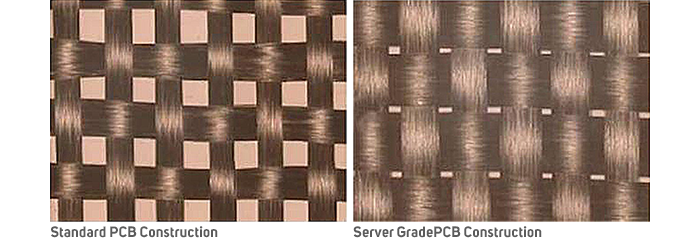

Server grade PCB offers up to three times heat resistance To fully support the latest PCI-E Gen 4 solution which features twice the transfer speed and bandwidth, MSI X570 motherboards adopt server grade PCB that provide reliable and long-lasting system performance for the lengthiest of gaming sessions, prevents PCB bending by stronger construction for the system foundation and reduces up to 30% signal loss for the better performance.

A New Way to Control your Cooling

rgbstrip

BOOST mode

phone

Balance mode

rgbstrip

Silence mode

MSI FROZR Heatsink design combines the power of MSI’s exclusive ZERO FROZR and AI tuning technology to auto-adjust fan speed according to the chipset’s temperature. You can also select from one of three modes (Boost / Balance / Silent) mode with your according to your preferences via Dragon center or MSI UEFI BIOS and enjoy the best performance without compromise.

Features of the X570 MEG Unify

rgbstrip

Core Boost TechnologyCombining 8+4 pin power connectors and premium layout design, ready for unleashing the maximum performance.

phone

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

rgbstrip

Server-grade PCBServer-grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromise.

phone

IR Digital PWMHighest quality component IR digital power makes sure your system runs smoothly under the most extreme conditions.

phone

Zero Frozr TechnologyAI tuning system that auto-adjust fan speed by chipset temperature and eliminates fan noise by stopping the fans.

rgbstrip

Frozr DesignDesigned with a patented fan and double ball bearings to provide the best performance for you.

phone

AMD Turbo USBFeaturing the TURBO USB 3.2 GEN2, with reversible Type-C connector.

rgbstrip

DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

phone

Lightning Gen4The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

rgbstrip

PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

phone

Latest Wi-Fi 6 SolutionThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Specifications
Core Specifications
Edition MEG UNIFY
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi/NVLink
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 4.0 x1
  • 2 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 2-pin LED power input
  • 1 x 24-pin (Power)
  • 1 x 3-pin CORSAIR connector
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin RGB LED connector
  • 5 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Debug Code LED
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x Power button
  • 1 x Reset Button
  • 4 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 2 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Realtek RTL8125 (2.5G LAN)

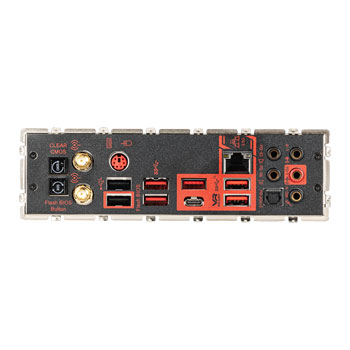

Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Flash BIOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x Wi-Fi antenna connector holes
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN102264
Model Number MEG X570 UNIFY
GTIN 4719072678661
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

MSI MEG X570 Unify, AMD X570, AM4, DDR4, PCIe 4.0, 3x M.2, SLI/CrossFire, 2.5GbE, USB 3.2 Gen2 A+C, ATX is rated 4.8 out of 5 by 4.
Rated 4 out of 5 by from excellent build quality Has all the features of the ACE except for RGB for about £70 less. I don't think it would cost that to add some bling if that's what you want. If, like me, you want a subtle, unfussed build, this looks great. Shame the LED, power, reset and debug all are red: white would have been better. BIOS (UEFI) updated (pre-build USB) without issue; the chipset fan never spins in normal use (stock bios setting); worth noting, Windows10 couldn't find the WiFi driver and I had to use the included CD. First time that's ever been useful.
Date published: 2020-08-15
Rated 5 out of 5 by from Excellent Board - Silent VRM This board is SILENT, has no VRM noise at all. Absolutely world of difference compared to a triple RMA of an Aorus Ultra for the exact same issue each time, which was whiny VRM's and induced Graphics Card coil whine - the MSI board works well and feels of much higher quality. Great!
Date published: 2020-06-16
Rated 5 out of 5 by from A great value motherboard with lots of useful features. Having owned a MSI laptop and very impressed with it's build, I was doing a new Ryzen build and I was looking for a great motherboard to compliment my other parts. I was looking for simplicity, overclockability, performance and stability. MSI really delivered on all these check boxes for me. My build: MSI Meg X570 Unify Motherboard AMD 3700X 8 Core CPU AMD Wraith Prism Air Cooler 32GB Corsair Vengeance RGB Pro @ 3600Mhz 2TB Sabrent Rocket Nvme PCIe 4.0 M.2 Internal SSD 4 TB Samsung 860 Evo SSD ASUS RX580 Graphics Card Corsair Vengeance 750W fully modular PSU Lian-Li PC-O11 Dynamic Razer Edition All of the components included installed with no issues and booted first time. The MSI BIOS is easy to use both for novices or experienced builder. There is plenty of option to customise if you require. Everything is laid out nicely. PROs This board exudes quality upon inspection. It has very heavy metal heatsinks on it which will work well to soak up the heat. The chipset fan only spins up when the system needs to cool itself which keeps the noise down. The included heatsinks for the 3 x M.2 slots work well to cool my M.2 SSD. The connectors are situated well so it makes for easy cable management. My case had a part to play here but the board is just laid out well. It just works, and works well. Really pleased with my purchase.
Date published: 2020-05-09
Rated 5 out of 5 by from Low profile high end motherboard with lots to like I recently received this motherboard and feel like I definitely made the right purchase. For starters, it looks great and fits in well with the other components I have in the build. It feels high quality, and the different connections are nicely spaced to minimise the amount of fiddling needed to get everything in place. No issue in the BIOS when setting up and the built-in I/O shield is a nice touch. So far I haven't been using it long enough to speak for everything but nothing has been worse than expected. The only complaint that I have so far is that due to the general bulk, it can be a little fiddly to get into the case and situated.
Date published: 2020-01-27
