Scan code: LN107057 Manufacturer code: MEG Z490 GODLIKE

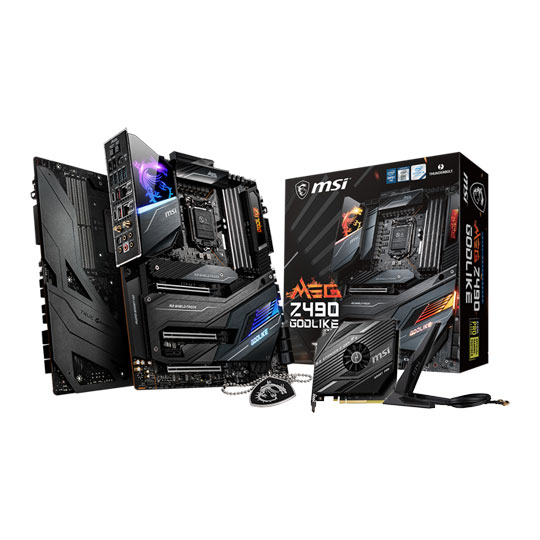

MSI MEG Intel Z490 GODLIKE E-ATX Motherboard

MSI MEG Z490 GODLIKE, Intel Z490, S 1200, DDR4, SATA3, 3x M.2, SLi/CrossFire, 10GbE, ax/BT5.1, USB 3.2 Gen2, TB3, E-ATX

Thumbnail 1 : MSI MEG Intel Z490 GODLIKE E-ATX Motherboard Thumbnail 2 : MSI MEG Intel Z490 GODLIKE E-ATX Motherboard Thumbnail 3 : MSI MEG Intel Z490 GODLIKE E-ATX Motherboard Thumbnail 4 : MSI MEG Intel Z490 GODLIKE E-ATX Motherboard
Scan code: LN107057 Manufacturer code: MEG Z490 GODLIKE
Was: £764.99
£699.98
FREE DELIVERY ON THIS ITEM
Order now and receive it between 7th Dec and 11th Dec
From £23.92 / month (APR 14.9%)
Monthly Payment: £62.84
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £699.98
Total inc. interest: £754.07
Monthly Payment: £33.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £699.98
Total inc. interest: £806.34
Monthly Payment: £23.92
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £699.98
Total inc. interest: £860.83
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 7th Dec To 11th Dec to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

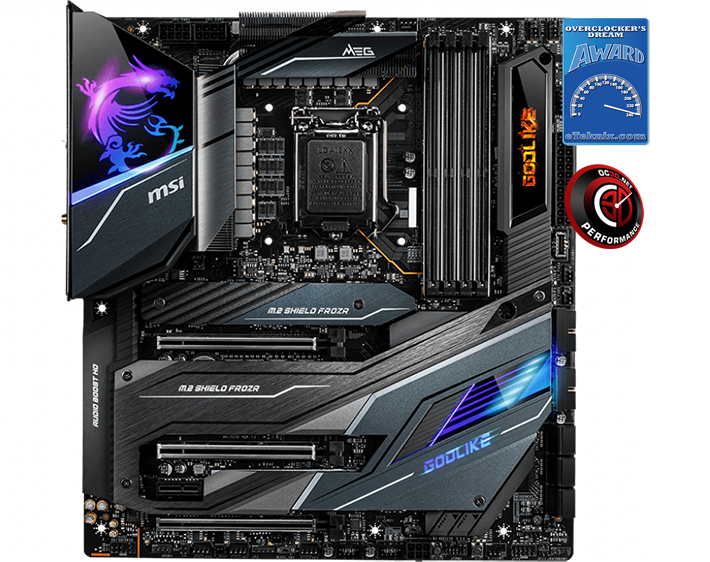

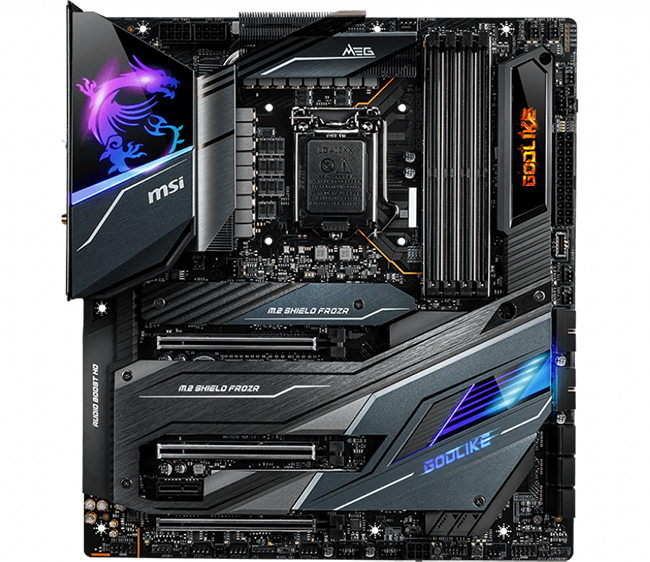

MSI MEG Z490 GODLIKE - Intel 10th Gen Gaming E-ATX Motherboard

MSI Z490 godlike

The World Record Breaker MEG MotherboardThe Z490 Godlike motherboard really is the god of all motherboards. The Godlike Z490 flagship model has been designed to push the boundaries of the 10th generation of Intel Core processors. The MEG godlike Z490 motherboard combines the strengths of MSI’s existing arsenal with new innovative technology resulting in significant improvements when gaming and working. Take complete control of the performance and personalise your motherboard with amazing features like the Dynamic Dashboard and MSI mystic light for amazing RGB lighting effects.

Please note: Z490 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel Z490 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel Z490Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

E-ATXForm Factor

What is the Cooling like on the MSI Z490 GODLIKE Motherboard?

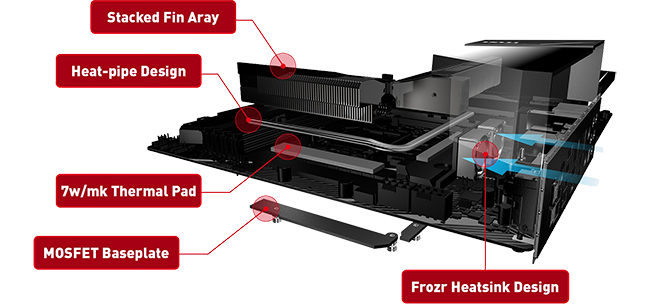

Z490 Godlike Cooling features

FULLY CONTROLLABLE FANS IN BIOS AND SOFTWAREM.2 Shield Frozr is the next generation M.2 thermal solution with a great design to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed.

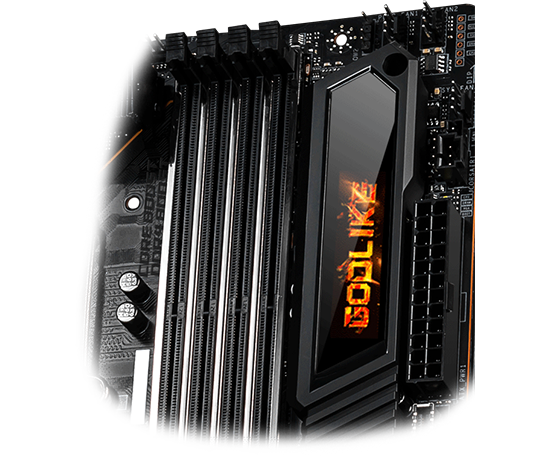

Dynamic Dashboard II Provides Live Feedback

Dynamic Dashboard Godlike
Dynamic Dashboard Dynamic Dashboard Dynamic Dashboard Dynamic Dashboard Dynamic Dashboard Dynamic Dashboard Dynamic Dashboard Dynamic Dashboard

The next level of onboard motherboard diagnostics is here! A colorful OLED screen panel that can display the status of the GODLIKE motherboard – view a hardware monitor, read debug codes, and find other useful information. Furthermore, you can customize the display with GIF animations. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage whilst many other helpful features help you to troubleshoot and show error codes if you ever have a problem.

Many Smart ways to Protect your Motherboard

Z490 Godlike Cooling features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MEG Z490 GODLIKE supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running the NVIDIA® SLI™ and AMD® CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience. 8 PCB layers allow for higher bandwidth and faster transfer speeds which is also beneficial for reliable circuit transmission. A metal backplate also prevents bending and protects components which benefits your installation process while Double ESD protection doubles up the grounding layer around the mounting holes.

down

Humidity Protection

up

Temperature Protection

up

Circuit Protection

up

ESD Protection

up

EMI Protection

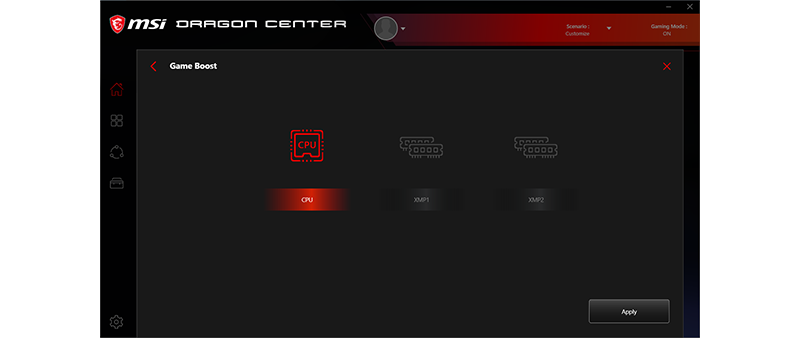

Give your Machine a Boost in 1 Second!

MSI Z490 Gameboost

Unleash and sustain maximum performance with an aggressive VRM design Combining dual power connectors and exclusive Mirrored Power Arrangement, MEG series motherboard is ready for the challenge of the new Intel 10th Gen Processors. MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS. Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision which creates perfect conditions for overclocking your CPU.

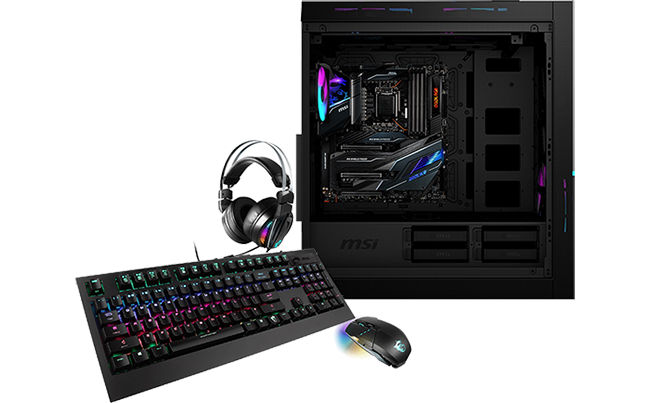

Personalize Your Gaming Rig with Dragon Centre

Mystic Light Z490

MILLIONS OF MARVELOUS COLORS, GREAT SELECTION OF EFFECTSMSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Create your own colourful masterpiece using the mystic light software Splash any color you want with just a few clicks! You can also optimise your monitor’s brightness, tweak overclock settings and control your fans. Take control of advanced motherboards features and unleash endless possibilities to tweak your machine the way you want it.

Fast and Future Ready Storage

BOOST YOUR HDD WITH INTEL OPTANEPC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. MSI have also included M.2 Genie which is a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.

down

3 x 32 Gbps

up

6 x 6 Gbps

many storage options for your PCMSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

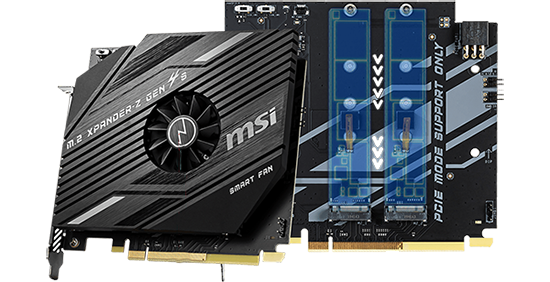

M.2 XPANDER-Z GEN 4 SThis PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking.

Unmatched Memory Performance with DDR4 Boost

memory

Advanced performance with DDR4 BOOST MSI OC LAB does not merely work hard on extreme overclocking. Compare to Z390 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for Z490. Easy to enable XMP profile with auto power settings to get the best memory speed and stability. The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

High Bandwidth and Low Latency Networking

Z490 Godlike Networking

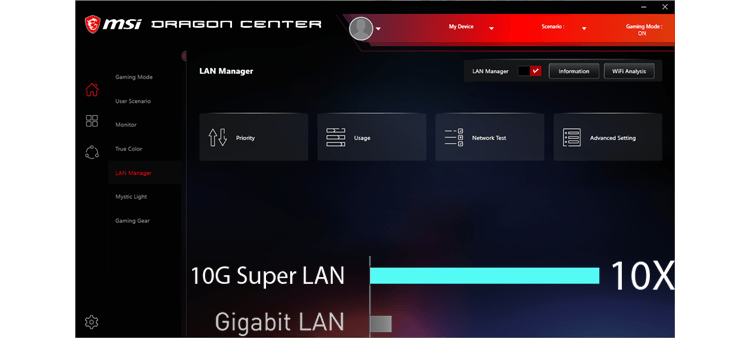

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY10G Super LAN plus 2.5G LAN provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

Hear your Enemies Approaching Before you See them!

GET CLEARER ORDER WITH VOICE BOOST Voice Boost automatically reduces the game’s audio when teammates speak, and sets volume back when no one speaks. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

down

HD ALC1220 AUDIO PROCESSORSupports DSD Super Audio CD playback & recording(64x better than regular CD quality) and 120dB SNR / 32-bit.

up

ESS AUDIO DACRecreates the optimal natural analogue sound with ultra-low distortion to ensure a perfect, realistic display of sound.

up

HIGH QUALITY AUDIO CAPACITORSA high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

up

GOLDEN AUDIO JACKS WITH S/PDIFKeep your sound perfect by transmit your audio with pure digital signal

up

DEDICATED HEADPHONE AMPLIFIERA dedicated headphone amp can drive audiophile headphones up to 600Ω impedance, delivering studio-grade sound quality.

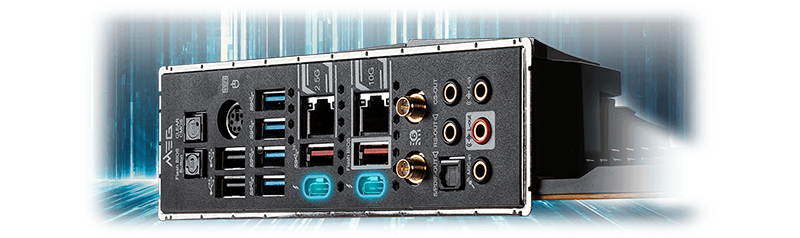

Dual Thunderbolt™ 3 Ports

MSI Z490 Godlike thunderbolt ports

LIGHTNING FAST SPEEDS WITH THUNDERBOLT 3 Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices. Additionally, built in DisplayPort 1.4 output allows for compatible display devices to be attached. MEG Z490 GODLIKE features dual Thunderbolt 3 Type-C ports for maximum productivity. MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Specifications
Core Specifications
Edition MEG Z490 GODLIKE
Form Factor E-ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) N/A
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000+(OC)
Max. Memory Capacity 128GB
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost HD
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 3 x M.2 PCIe
  • 1 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x AQUANTIA AQC-107 (10GbE LAN)
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)
  • 1 x Realtek RTL8125 (2.5G LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 1 x 7.1 Audio I/O
  • 2 x Antenna Ports
  • 1 x Clear CMOS Button
  • 1 x Flash BIOS Button
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 3
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN107057
Model Number MEG Z490 GODLIKE
GTIN 4719072719906
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747

does this board fit in the thermaltake p3 snow case

does this board fit in the thermaltake p3 snow case? and what is the highest spec CPU that will fit in it too please? also do you do a bundle of CPU and board this model many thanks
Asked by: Anonymous
We would advise checking with the manufacturers website for up to date compatibility with your motherboard. This will fit in a standard ATX case. Please contact our Technical Sales team via phone or: https://www.scan.co.uk/help/orders/sales/sales-query and they may be able to assist with a custom bundle.
Answered by: DavidScan
Date published: 2020-09-02
