Scan code: LN114703 Manufacturer code: MAG Z590 TOMAHAWK WIFI

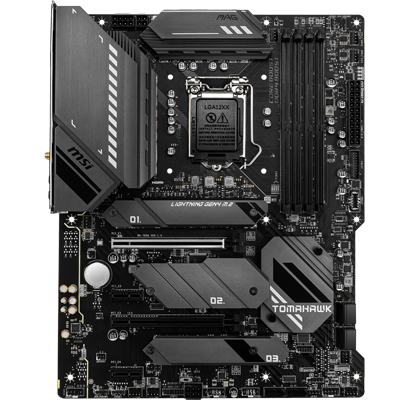

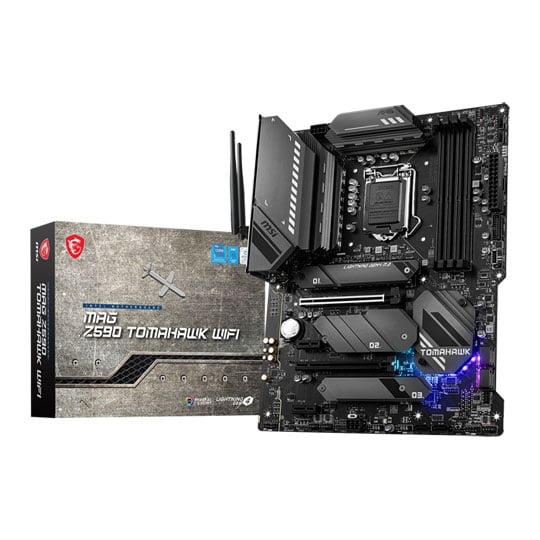

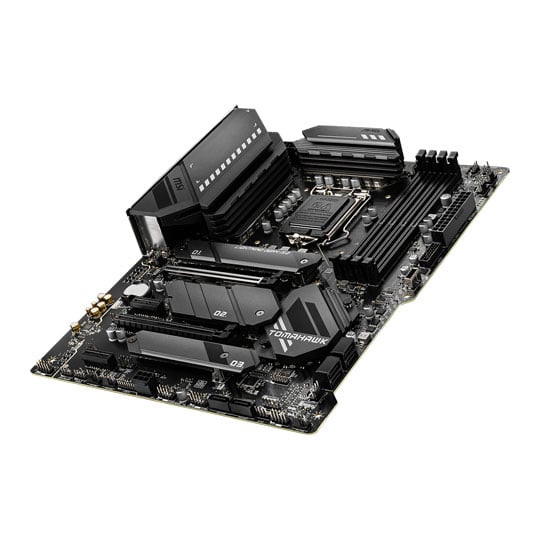

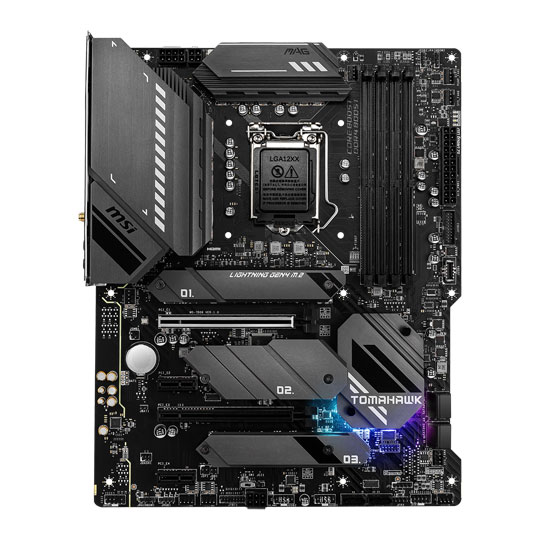

MSI MAG Z590 TOMAHAWK WIFI Intel Z590 PCIe 4.0 ATX Motherboard

MSI MAG Z590 TOMAHAWK WIFI, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, CrossFire, 2.5GbE, ax/BT5.2, ATX

Thumbnail 1 : MSI MAG Z590 TOMAHAWK WIFI Intel Z590 PCIe 4.0 ATX Motherboard Thumbnail 2 : MSI MAG Z590 TOMAHAWK WIFI Intel Z590 PCIe 4.0 ATX Motherboard Thumbnail 3 : MSI MAG Z590 TOMAHAWK WIFI Intel Z590 PCIe 4.0 ATX Motherboard Thumbnail 4 : MSI MAG Z590 TOMAHAWK WIFI Intel Z590 PCIe 4.0 ATX Motherboard
Scan code: LN114703 Manufacturer code: MAG Z590 TOMAHAWK WIFI
Was: £229.99
£209.99
Order now and get it tomorrow, Mon 25th Oct
From £10.08 / month (APR 14.9%)
Monthly Payment: £18.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £226.20
Monthly Payment: £10.08
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £241.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
MSI steam promotion

MAG Z590 TOMAHAWK (WIFI) 11th Generation Intel ATX Motherboard from MSI

Z590

A Whole New Generation Ready to experience the future of gaming? The MSI Z590 TOMAHAWK (Wi-Fi) is here to support the very latest 11th Generation Intel processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2, lightning 20G USB connectivity, Audio/Core & DDR4 Memory boosts, a premium thermal design with extended heatsink design with 7W/mK thermal pads and a six layer PCB combined with 3x onboard M.2 Shield Frozr and Wi-Fi 6E support delivering speeds of up to 2400 Mbps. The Z590 Tomahawk combines powerful aesthetics with premium performance and high-grade protection to bring you an immersive gaming experience, incredible product longevity and everything you need to squeeze every ounce of performance from your CPU, join the next generation with MSI Z590 Tomahawk (Wi-Fi).

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

ATXForm Factor

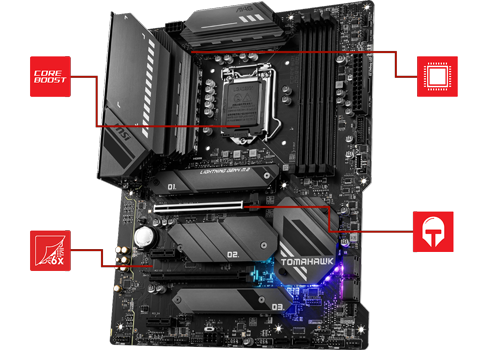

Special Features of the Z590 TOMAHAWK (Wi-Fi)

4K Recording
down

Core Boost
Technology
With premium layout design, that is ready for unleashing the maximum performance.

up

Digital
PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

up

6 layer
PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

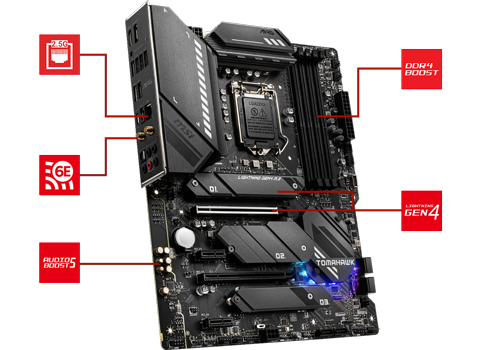

Next Generation Connectivity with MSI

4K Recording
down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

up

Audio Boost 5ALC4080 Codec with top quality caps for the most immersive gaming experience.

up

DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

up

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

up

Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

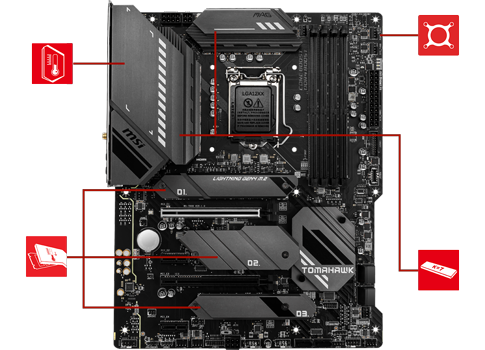

Premium Thermal Solution

4K Recording
down

7W/mK Thermal Pad7W/mK thermal pad provides more efficient and effective heat transfer to the heatsink.

up

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

up

Enlarged Chipset HeatsinkLarger heatsink for chipset ensures better heat dissipation and cooling effects.

Light Up Your Ecosystem

4K Recording

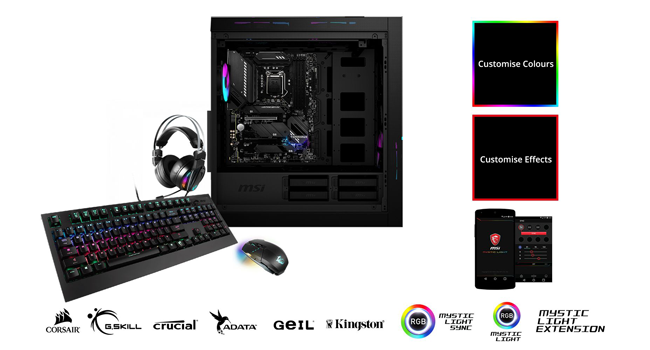

MSI Mystic LightPersonalise your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.

Unbelievable Power Solution

4K Recording

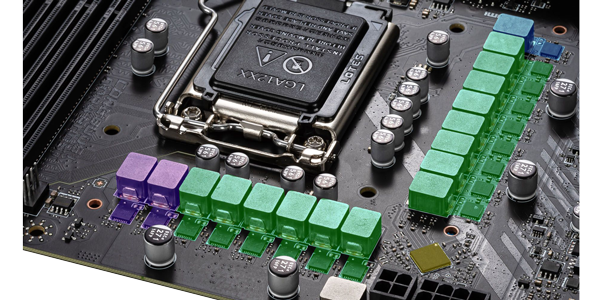

Time to Get Aggressive Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 4-pin power connectors and exclusive Core Boost technology, MAG series motherboards are ready to sustain heavy demand.

2 PhaseGT Power

8+4CPU Power Connectors

1 PhaseSA Power

14 Duet RailCPU Power

Digital PWM IC

The Future is Now

4K Recording

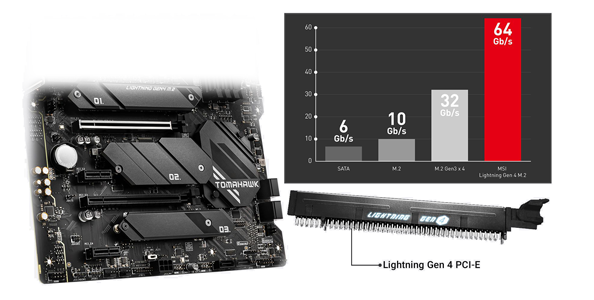

LIGHTNING GEN 4 SOLUTIONThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

Experience Core Boost

Z390 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Protecting your PCIe Slots

Z490 ACE Cooling features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MAG Z590 Tomahawk Wi-Fi supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Overclock Your System in One Second!

MSI Z390 Gameboost

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

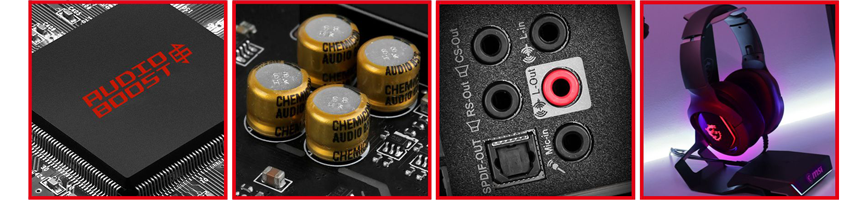

Professional Gaming Audio

audio

Amplify your game with Audio Boost 5 Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.

Next Generation Connectivity

4K Recording

Wi-Fi 6e SupportUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

A Fully Comprehensive I/O

4K Recording
Specifications
Core Specifications
Edition MAG Z590 TOMAHAWK WIFI
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 4000+(OC)
  • DDR4 - 4400+(OC)
  • DDR4 - 4700+(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek® ALC4080 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 6 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 6-pin PCIe (Power)
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 6 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX210 (ax WiFi, BT5.2)
  • 1 x Intel® I225V (2.5GbE LAN)

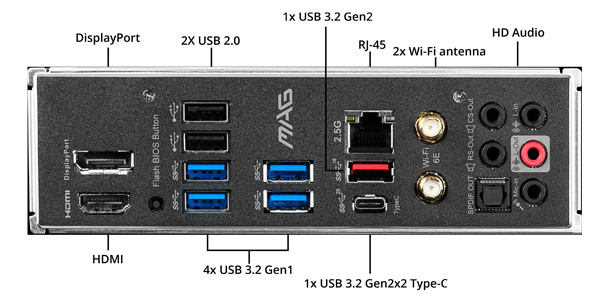

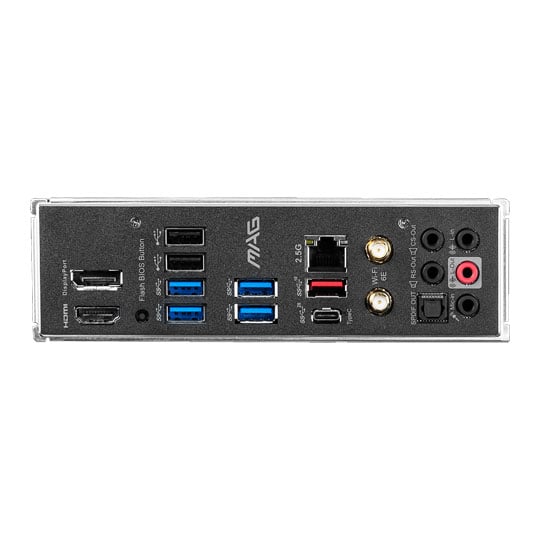

Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN114703
Model Number MAG Z590 TOMAHAWK WIFI
GTIN 4719072800529
